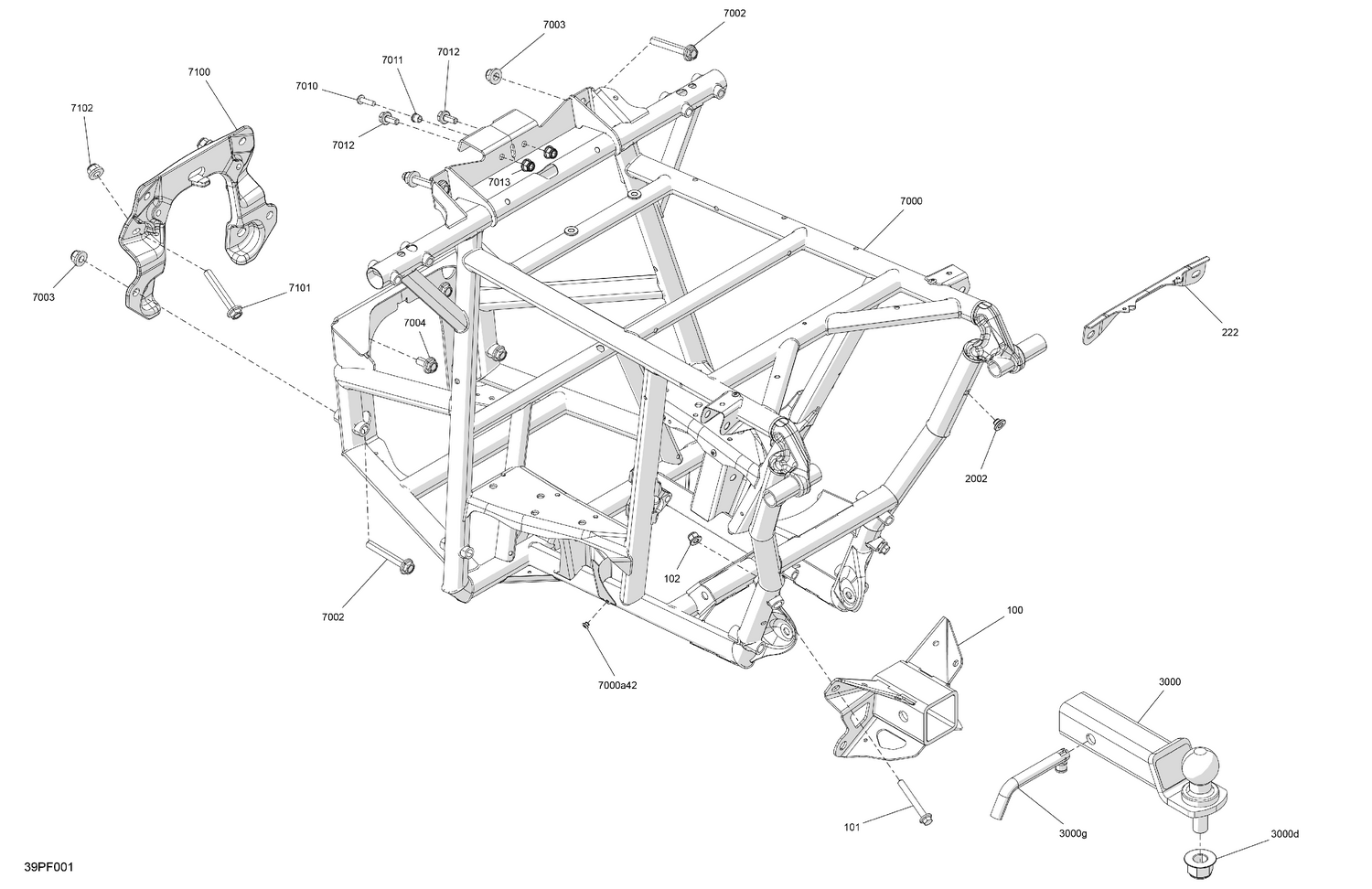

06- Frame - Rear Section
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 715011211 | Trailer Hitch Kit |
| 101 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 102 | 233281414 | Hex. Flange Elastic Nut M8 |
| 222 | 705209026 | Rear Suspension Arm Reinforcement |
| 2002 | 293450383 | Threaded Insert |
| 3000d | 250100104 | Elastic Flange Nut M20 |
| 3000g | 705204490 | Hitch Pin |
| 7000a42 | 293150293 | Pop Rivet 3/16 X ,425 |
| 7002 | 207607046 | Hex. Flange Screw M10 X 70 |
| 7003 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 7004 | 207502046 | Hex. Flange Screw M10 X 20 |
| 7010 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 7011 | 293150149 | Collar Huck Magna-Grip 6.4 |
| 7012 | 207682044 | Hex. Flange Screw M8 X 20 |
| 7013 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7100 | 705213950 | Machined Anchorage Support |
| 7101 | 207607046 | Hex. Flange Screw M10 X 70 |
