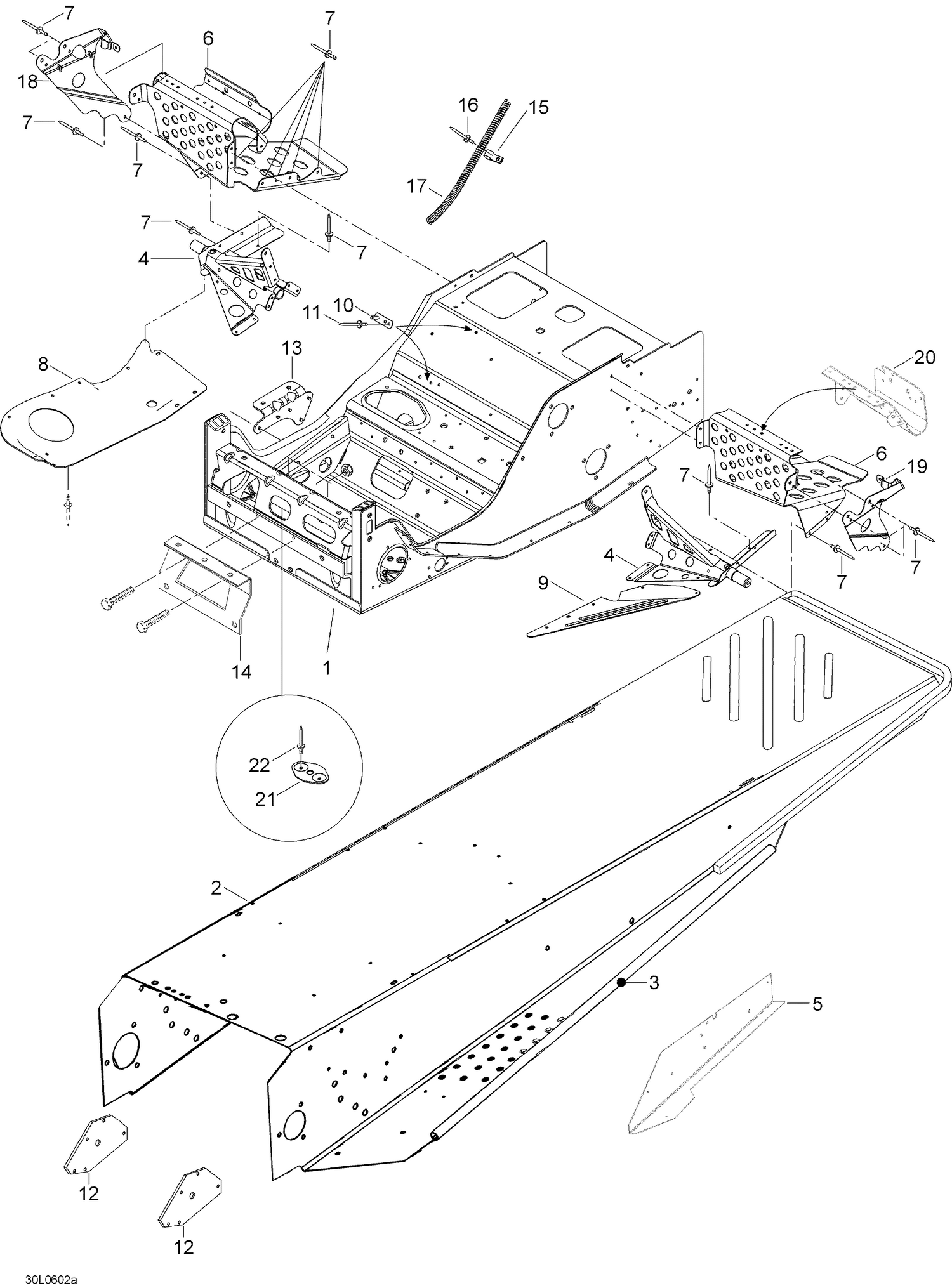

09- Frame
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605151363 | Frame ass'y |
| 2 | Not | Available As Spare Part - Tunnel |
| 3 | 5348047 | Support |
| 4 | 605151358 | R.H. support |
| 4 | 605151359 | L.H. support |
| 5 | 605350426 | L.H. Support |
| 5 | 605350427 | R.H.Support |
| 6 | 605250239 | R.H. front footrest |
| 6 | 605250240 | L.H. front footrest |
| 7 | 36083 | Rivet |
| 8 | 518322636 | RH BOTTOM PAN PLATE - Call your local BRP dealership |
| 9 | 605349267 | L.H. reinf. plate |
| 10 | 518319728 | Double bracket |
| 11 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 12 | 5348321 | Support |
| 13 | 518322635 | Bracket |
| 14 | 5346111 | Support plate |
| 15 | 27092 | Clamp |
| 16 | 36036 | Rivet |
| 17 | 518321569 | Rope guide |
| 18 | 5146912 | R.H. footrest reinforcem. |
| 19 | 5146913 | L.H. footrest reinforcem. |
| 20 | 5146917 | R.H. toe hold |
| 20 | 5146918 | R.H. toe hold |
| 21 | 518201307 | Bracket |
