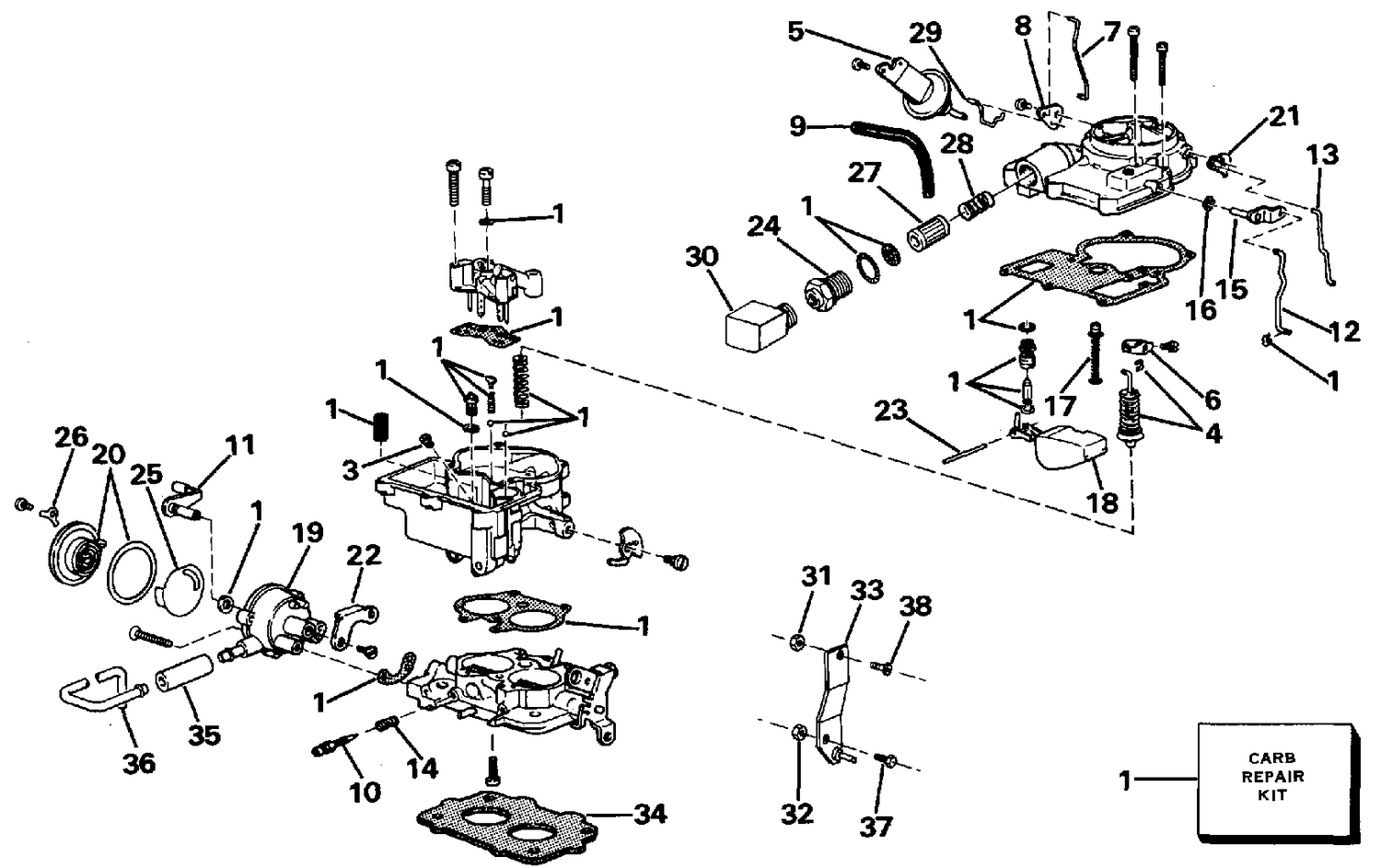

| Ref | Part Number | Description |
|---|
| 1 |
0984487 |
CARB. REPAIR KIT |
| 3 |
0910647 |
JET |
| 4 |
0984493 |
PUMP ASSY |
| 5 |
0981814 |
VACUUM BREAK ASSY |
| 6 |
0312419 |
LEVER, Pump inside |
| 7 |
0909744 |
CHOKE ROD |
| 8 |
0980004 |
CHOKE LEVER & COLLAR |
| 9 |
0314531 |
HOSE, Vacuum |
| 10 |
0913666 |
IDLE NEEDLE |
| 11 |
0982181 |
INTERMEDIATE CHOKE SHAFT |
| 12 |
0909765 |
PUMP ROD |
| 13 |
0909740 |
INTERMEDIATE CHOKE ROD |
| 14 |
0312445 |
SPRING, Idle needle |
| 15 |
0981794 |
PUMP SHAFT & LEVER ASSY |
| 16 |
0909729 |
WASHER, Pump lever |
| 17 |
0382013 |
POWER PISTON ASSEMBLY |
| 18 |
0982385 |
FLAT ASSY. |
| 19 |
0910036 |
CHOKE HOUSING ASSY |
| 20 |
0981816 |
THERM COVER & GASKET |
| 22 |
0909736 |
LEVER INTERMEDIATE CHOKE |
| 23 |
0909731 |
PIN, Float hinge |
| 24 |
0311687 |
FILTER NUT, Fuel inlet |
| 25 |
0909739 |
BAFFLE PLATE |
| 26 |
0311662 |
RETAINER, Therm cover |
| 27 |
0984491 |
FILTER, Fuel inlet |
| 28 |
0909730 |
SPRING, Fuel filter |
| 29 |
0909732 |
LINK, Vacuum break |
| 30 |
0310924 |
CLAMP, Main cable to adapter |
| 32 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 33 |
0981627 |
THROTTLE LEVER & PIN |
| 34 |
0909758 |
GASKET, Caarburetor 185 hp |
| 35 |
0909579 |
CONNECTOR, Carburetor to heat exchanger |
| 36 |
0909580 |
TUBE, Heat exchanger |
| 37 |
0306487 |
SCREW |
| 0982589 |
0982589 |
CARBURETOR |
