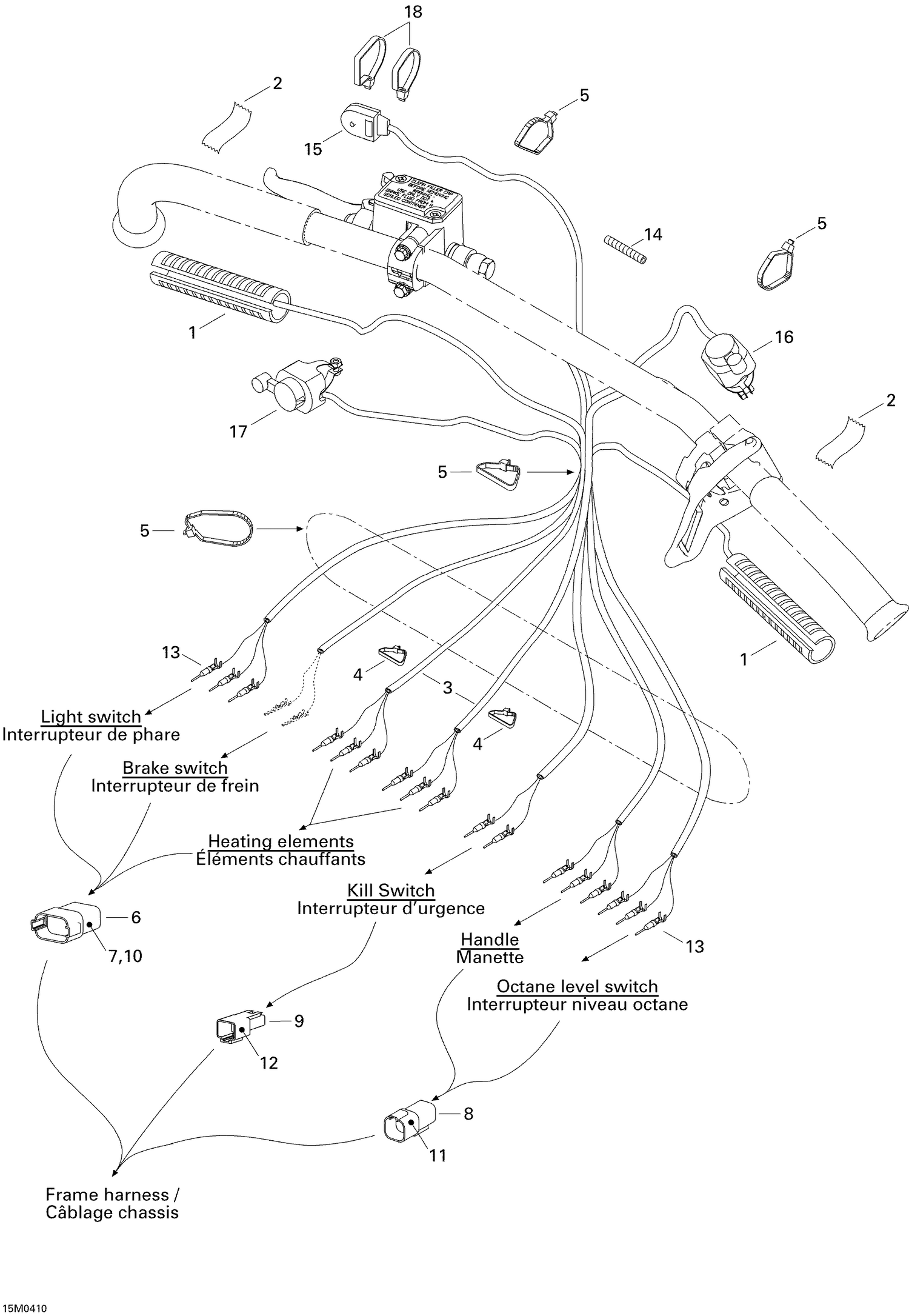

| Ref | Part Number | Description |
|---|
| 1 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership This part replaces 515176111. |
| 2 |
293740005 |
Tape |
| 3 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 4 |
293750002 |
Tie Wrap 142 mm |
| 5 |
414115200 |
Tie-Rap 180 mm |
| 6 |
515175669 |
MALE HOUSING - Call your local BRP dealership |
| 7 |
293000052 |
Sealing Cap |
| 8 |
515175668 |
Male Terminal Housing, 6 Circuits |
| 9 |
515175665 |
Male Terminal Housing, 2 Circuits |
| 10 |
Not |
Available As Spare Part - Male Lock (12 Circuits) |
| 11 |
278000735 |
Female Lock, 6 Circuits |
| 12 |
409207500 |
Male Lock, 2 Circuits |
| 13 |
515175768 |
MALE TERMINAL - Call your local BRP dealership |
| 14 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 15 |
515176090 |
Switch |
| 16 |
515177454 |
KILL SWITCH - Call your local BRP dealership This part replaces 515175685. |
| 17 |
515177434 |
DIMMER SWITCH - Call your local BRP dealership This part replaces 515175684. |
