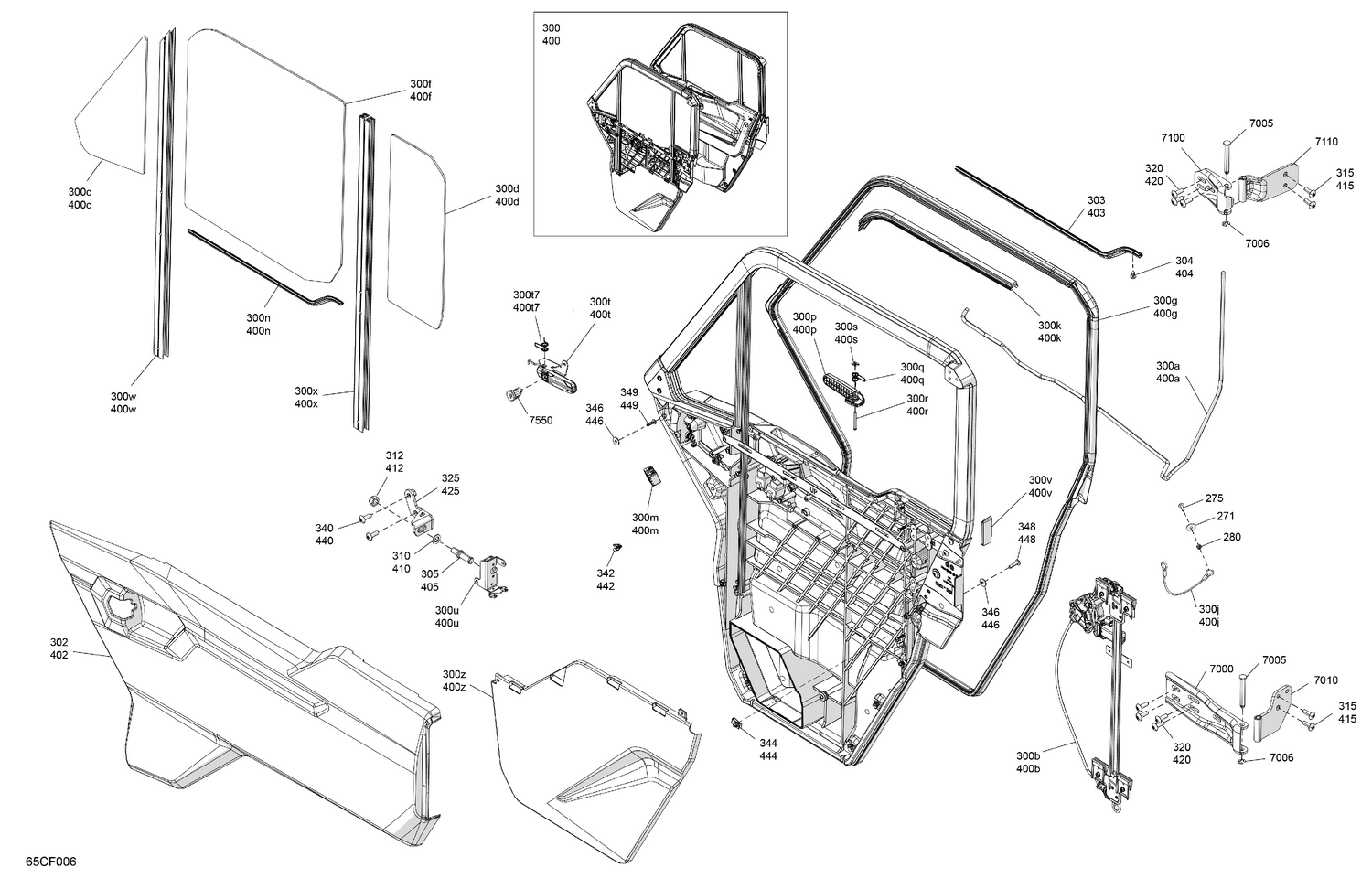

07- Enclosure Cab - Doors
Parts (81)
| Ref | Part Number | Description |
|---|---|---|
| 271 | 250200029 | Washer M6 |
| 275 | 250000722 | Torx Screw M6 X 20 |
| 280 | 708300737 | Bushing |
| 300 | 705801606 | LH Front Rigid Door Ass'y |
| 300a | 705800881 | LH Door Wiring Harness |
| 300b | 705801143 | LH Front Window Actuator |
| 300c | 705801323 | Tinted, LH Front Door Window |
| 300d | 705801324 | Tinted, LH Rear Door Window |
| 300f | 705801325 | Tinted, LH Front Sliding Cab Window |
| 300g | 705801311 | LH Gasket |
| 300j | 705800896 | Retaining Cable |
| 300k | 705801312 | Gasket |
| 300m | 710008375 | Switch |
| 300n | 705800867 | Gasket |
| 300p | 705017152 | Door Handle |
| 300q | 705013062 | Handle Spring |
| 300r | 705207440 | Handle Axle |
| 300s | 705601875 | External Retaining Ring |
| 300t7 | 705013062 | Handle Spring |
| 300u | 705800872 | LH Latch |
| 300v | 705800992 | Trim |
| 300w | 705800722 | Front Window Guide Extrusion |
| 300x | 705800723 | Rear Window Guide Extrusion |
| 300z | 705800716 | LH Lower Door Panel |
| 302 | 705801565 | Dusty Navy Satin, LH Upper Door Panel |
| 303 | 705800963 | Gasket |
| 304 | 250001274 | Torx Screw ST 2.9 X 6.5 |
| 305 | 705800850 | Rod Latch |
| 310 | 250200005 | Conical Spring Washer M12 |
| 312 | 232521416 | Elastic Stop Nut M12 |
| 315 | 250000874 | Torx Truss M8 X 25 |
| 320 | 250000874 | Torx Truss M8 X 25 |
| 325 | 705801871 | LH Front Striker Support |
| 340 | 250000874 | Torx Truss M8 X 25 |
| 342 | 517306478 | Clip |
| 344 | 250100198 | Panel Nut M6 X 1.0 |
| 346 | 234062670 | Stainless Steel Flat Washer |
| 348 | 250000807 | Torx Truss Screw M6 X 25 |
| 349 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 400 | 705801607 | RH Front Rigid Door Ass'y |
| 400a | 705800882 | RH Door Wiring Harness |
| 400b | 705801144 | RH Front Window Actuator |
| 400c | 705801326 | Tinted, RH Front Door Window |
| 400d | 705801327 | Tinted, RH Rear Door Window |
| 400f | 705801328 | Tinted, RH Front Sliding Cab Window |
| 400g | 705801313 | RH Gasket |
| 400j | 705800896 | Retaining Cable |
| 400k | 705801312 | Gasket |
| 400m | 710008375 | Switch |
| 400n | 705800867 | Gasket |
| 400p | 705017152 | Door Handle |
| 400q | 705013062 | Handle Spring |
| 400r | 705207440 | Handle Axle |
| 400s | 705601875 | External Retaining Ring |
| 400t7 | 705013062 | Handle Spring |
| 400u | 705801465 | RH Front Door Latch This part replaces 705800873. |
| 400v | 705800992 | Trim |
| 400w | 705800722 | Front Window Guide Extrusion |
| 400x | 705800723 | Rear Window Guide Extrusion |
| 400z | 705800717 | RH Lower Door Panel |
| 402 | 705801566 | Dusty Navy Satin, RH Upper Door Panel |
| 403 | 705800963 | Gasket |
| 404 | 250001274 | Torx Screw ST 2.9 X 6.5 |
| 405 | 705800850 | Rod Latch |
| 410 | 250200005 | Conical Spring Washer M12 |
| 412 | 232521416 | Elastic Stop Nut M12 |
| 415 | 250000874 | Torx Truss M8 X 25 |
| 420 | 250000874 | Torx Truss M8 X 25 |
| 425 | 705801872 | RH Front Striker Support |
| 440 | 250000874 | Torx Truss M8 X 25 |
| 442 | 517306478 | Clip |
| 444 | 250100198 | Panel Nut M6 X 1.0 |
| 446 | 234062670 | Stainless Steel Flat Washer |
| 448 | 250000807 | Torx Truss Screw M6 X 25 |
| 449 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 7000 | 705801858 | Door Hinge |
| 7005 | 705800781 | Hinge Pin |
| 7006 | 293370125 | Retaining Ring |
| 7010 | 705801865 | Lower Hinge |
| 7100 | 705801859 | Upper Door Hinge |
| 7110 | 705800755 | Upper Door Hinge |
