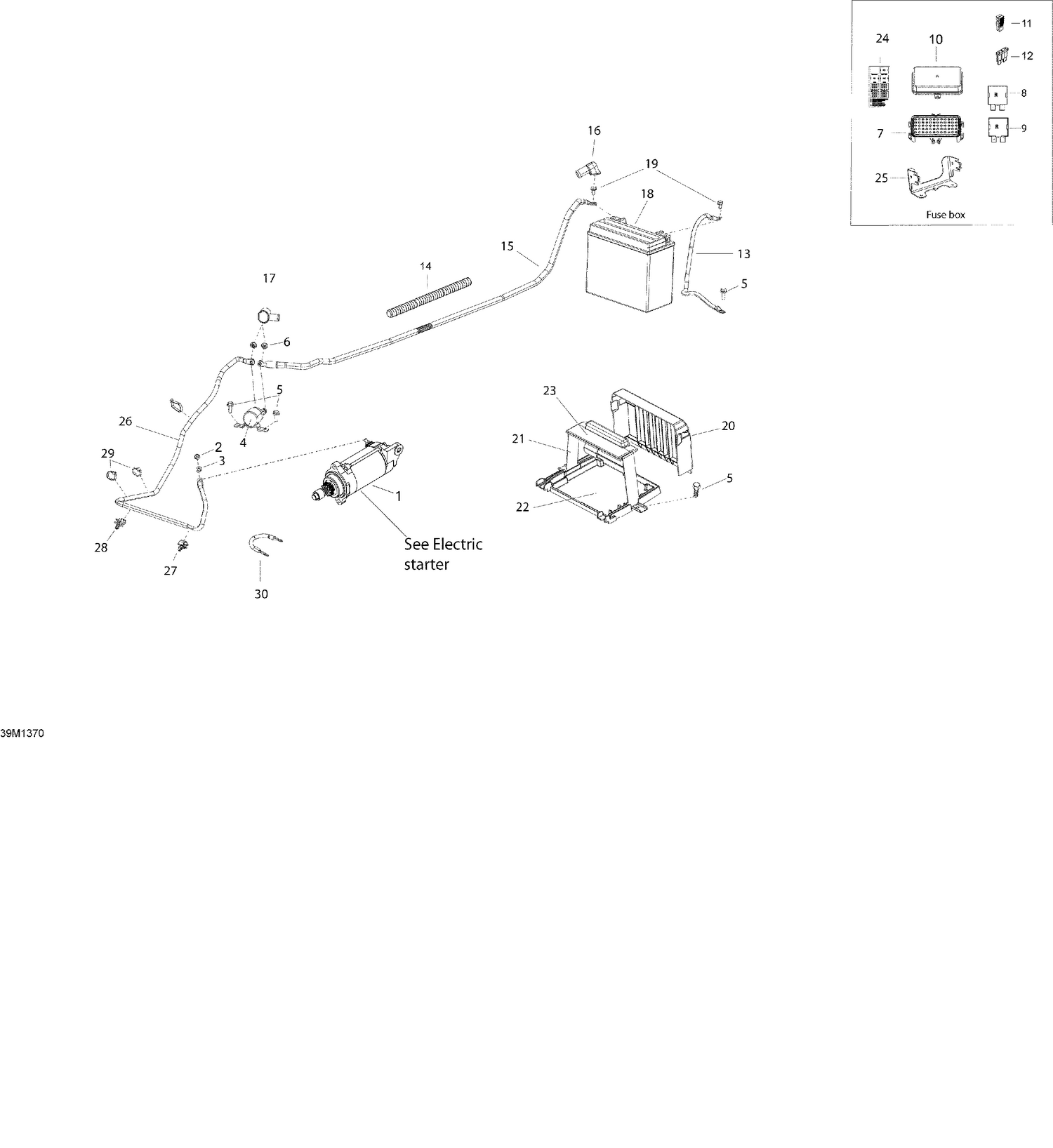

| Ref | Part Number | Description |
|---|
| 1 |
515178473 |
Starter This part replaces 515176858. |
| 2 |
232561434 |
Elastic Stop Nut M6 |
| 2 |
415129355 |
Bouton d'Indicateur De Vitesse |
| 3 |
234061410 |
Flat Washer 6 mm |
| 3 |
415129370 |
Anneau De Cadran |
| 4 |
415129349 |
Lentille |
| 4 |
515176011 |
Starter Relay |
| 5 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 5 |
516006224 |
Logo BRP, 20MM x 2MM This part replaces 219902677. |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
515176274 |
Ampoule Halogène, 60/55 W, 12 V ( H4 ) |
| 7 |
Not |
Available As Spare Part - Fuse housing |
| 8 |
515176774 |
Relay, 30 AMP This part replaces 710000739. |
| 9 |
515176498 |
Capuchon |
| 9 |
515176775 |
Relay, 50 AMP |
| 10 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 10 |
710001026 |
Fuse Cover |
| 11 |
250000722 |
Vis Hexalobulaire M6 X 20 This part replaces 250000128. |
| 11 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 12 |
250100198 |
Ecrou Sur Panneau Refoule M6 X 1.0 This part replaces 250100113. |
| 12 |
710000742 |
Little Fuse, 5 Amperes |
| 12 |
710000743 |
Little Fuse, 7.5 Amperes |
| 12 |
710000744 |
Little Fuse, 10 Amperes |
| 12 |
710000745 |
Little Fuse, 15 Ampere |
| 12 |
710000746 |
Little Fuse, 20 Amperes |
| 12 |
710000747 |
Little Fuse, 30 Amperes |
| 13 |
515176780 |
Ground Wire |
| 14 |
28015 |
Tubing |
| 14 |
515175232 |
Cosse Mâle |
| 15 |
515175494 |
Logement Mâle, 3 Circuits |
| 15 |
515176805 |
BATTERY CABLE - Call your local BRP dealership |
| 16 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 16 |
409902000 |
Gaine 12 mm |
| 17 |
570151000 |
Protection Cap |
| 18 |
515178284 |
Capuchon DESS This part replaces 515177057. |
| 19 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 20 |
234461608 |
Rondelle Chevauchante Extérieure 6 mm |
| 20 |
510005079 |
Battery Cover |
| 21 |
510005143 |
Battery Strap |
| 22 |
515175670 |
Logement Terminal Femelle, 2 Circuits |
| 22 |
515176804 |
Battery Support |
| 23 |
278000632 |
Terminal Femelle |
| 23 |
510005146 |
Strap Cover |
| 24 |
516005892 |
FUSE DECAL ETEC - Call your local BRP dealership |
| 25 |
515176366 |
Capteur De Température d'Air |
| 25 |
515177073 |
FUSEBOX SUPPORT - Call your local BRP dealership |
| 26 |
515176806 |
Start Cable |
| 27 |
515176795 |
Tie Rap Mount (screwable) |
| 28 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 28 |
605627000 |
Tie-Rap |
| 29 |
414115200 |
Tie-Rap 180 mm |
| 30 |
515175232 |
Cosse Mâle |
| 31 |
710000667 |
Logement Mâle, 2 Circuits |
| 32 |
515177289 |
Fil de Masse This part replaces 515176861. |
| 33 |
515177272 |
Condensateur This part replaces 515176349. |
| 34 |
516004570 |
Décalque De Condensateur |
| 35 |
515177193 |
Capuchon |
| 36 |
514054641 |
Capteur De Température |
| 37 |
414227300 |
Pince |
| 41 |
293750001 |
Attache 94 mm |
| 41 |
293750002 |
Attache 142 mm |
| 41 |
293750008 |
Attache 368 mm |
| 41 |
414115200 |
Attache 180 mm |
| 42 |
515177077 |
Cablage Principale - Appelez votre concessionnaire BRP local |
| 43 |
250200026 |
Rondelle Frein |
| 44 |
710001248 |
Prise d'Accessoire |
| 45 |
250000462 |
Vis Creuse Bombée À 6 Pans M10 X 32 |
| 46 |
515177837 |
Cablage De Prise De Visière This part replaces 515177187. |
| 47 |
572103300 |
Capuchon |
| 48 |
515175851 |
Rallonge |
| 49 |
515176607 |
Support De Condensateur |
