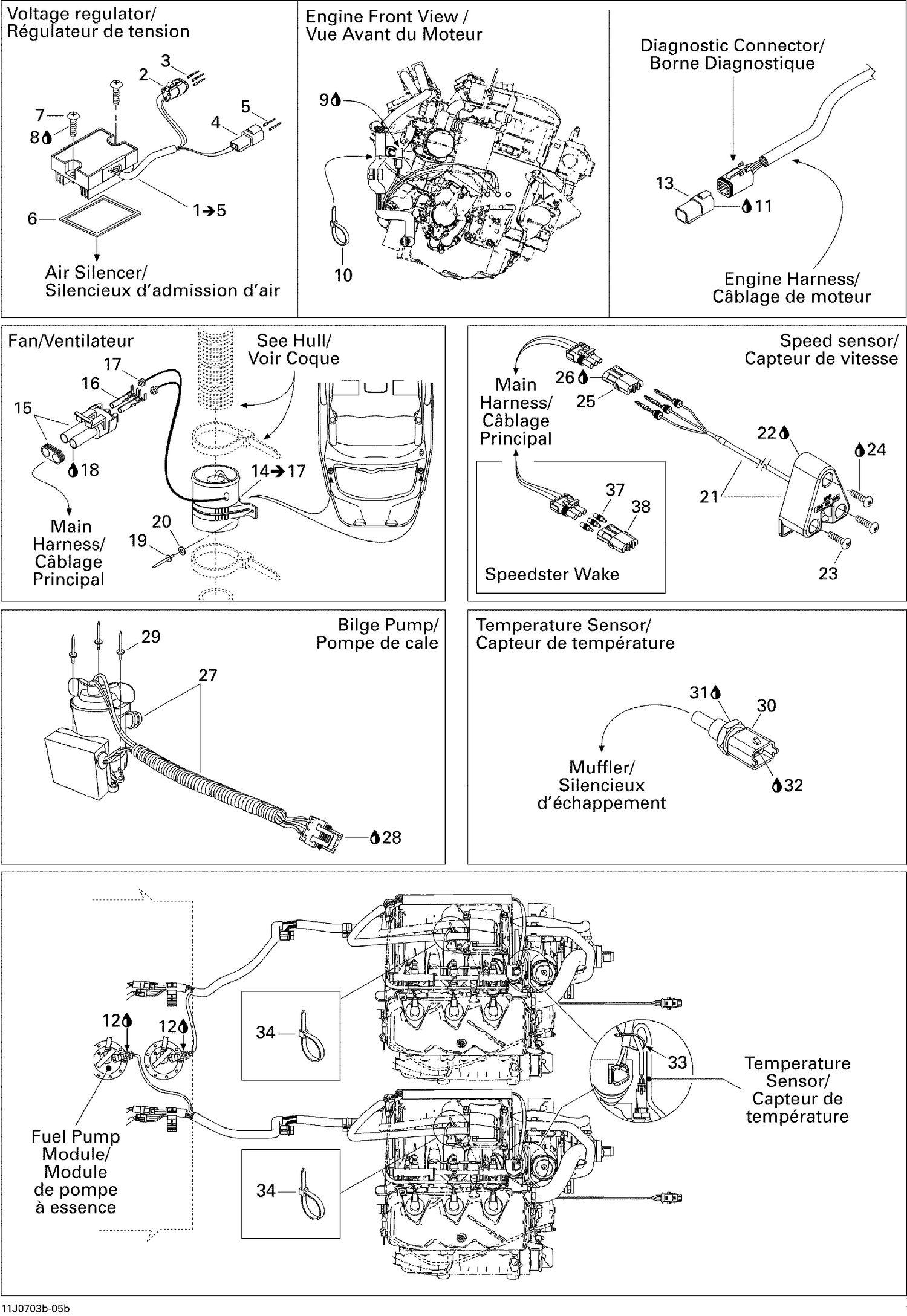

10- Electrical Accessories 2

10- Electrical Accessories 2

Parts (30)

RefPart NumberDescription
2 278002375 CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400.
3 278000632 Female Terminal
4 409206900 Male Housing, 2 Circuits
5 515175567 Female Terminal
6 293250123 SEAL - Call your local BRP dealership
7 208663060 PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
8 293800005 Loctite 271, 10 ml
9 219704453 Was 293550004 Dielectric Grease, 150 g
10 414115200 Tie-Rap 180 mm
11 219704453 Was 293550004 Dielectric Grease, 150 g
12 219704453 Was 293550004 Dielectric Grease, 150 g
13 278002704 Diagnostic Connector This part replaces 278002148.
15 278000220 Male Connector, 2 Circuits
16 278000223 Female Terminal
17 278000218 Wire Seal
18 219704453 Was 293550004 Dielectric Grease, 150 g
19 293150008 Pop Rivet 3/16" This part replaces 293150011.
20 234052600 Flat Washer 5 mm, Stainless
21 278001993 Speed Sensor This part replaces 204471107.
22 296000309 Silicone Sealant 51388, 300 ml
23 211000021 PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
24 296000309 Silicone Sealant 51388, 300 ml
25 278000281 Female Terminal Housing, 3 Circuits
26 219704453 Was 293550004 Dielectric Grease, 150 g
27 204471176 Bilge Pump With Screen
28 219704453 Was 293550004 Dielectric Grease, 150 g
29 293150029 RIVET_POP 5/32 - Call your local BRP dealership
30 278002895 Temperature Sensor This part replaces 278001016.
32 219704453 Was 293550004 Dielectric Grease, 150 g
33 293750002 Tie Wrap 142 mm
