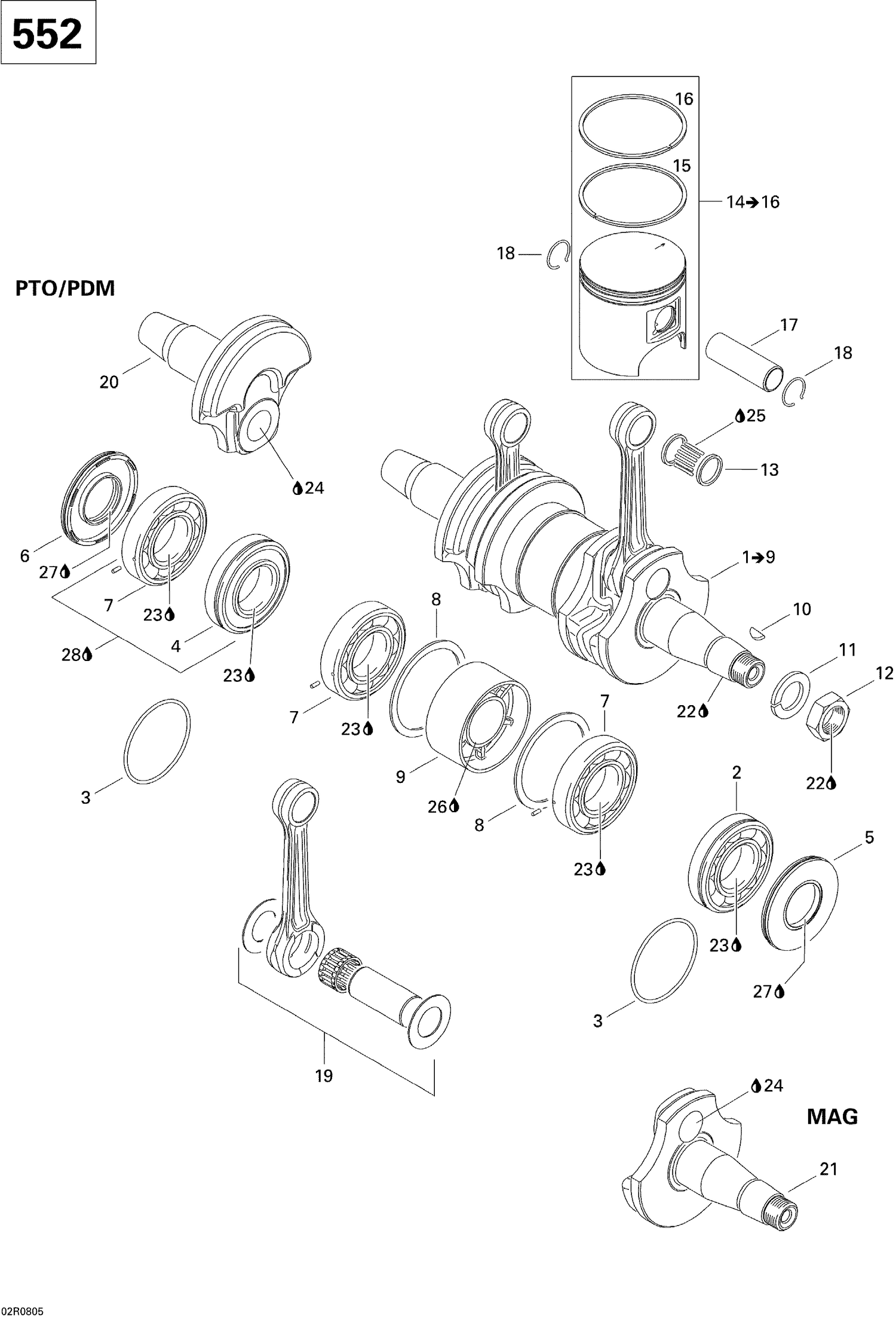

01- Crankshaft, Piston And Cylinder
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832571 | Ball Bearing |
| 3 | 293300022 | O-Ring 64 mm |
| 4 | 420832632 | Ball Bearing This part replaces 420832639. |
| 5 | 420831952 | Oil Seal |
| 6 | 420831955 | Oil Seal |
| 7 | 420832573 | Ball Bearing |
| 8 | 420927710 | Retaining Disk |
| 9 | 420850149 | Labyrinth Sleeve |
| 10 | 420246055 | Woodruff Key |
| 11 | 420945759 | Lock Washer |
| 12 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 13 | 420832420 | NEEDLE BEARING - Call your local BRP dealership |
| 15 | 420815300 | Rectangular Ring 76 mm |
| 15 | 420815301 | Rectangular Ring 76.25 mm |
| 15 | 420815302 | Rectangular Ring 76.50 mm |
| 16 | 420815155 | Semi-trapez Ring, 76 mm |
| 16 | 420815156 | Semi-trapez Ring, 76.25 mm |
| 16 | 420815157 | Semi-trapez Ring 76.50 mm |
| 17 | 420916407 | Piston Pin This part replaces 420916405. |
| 18 | 420845106 | Piston Circlip |
| 19 | 420889064 | Rod Repair Kit |
| 20 | Not | Available As Spare Part - Crankshaft PTO Side |
| 21 | Not | Available As Spare Part - Crankshaft Mag Side |
| 22 | 293800060 | Loctite 243, 10 ml |
| 23 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 24 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 25 | 779119 | NEEDS DESCRIPTION This part replaces 413802900. |
| 26 | Not | Available As Spare Part - Engine Oil |
| 27 | 420899271 | Petamo Grease, Ghy133n, 400 G |
