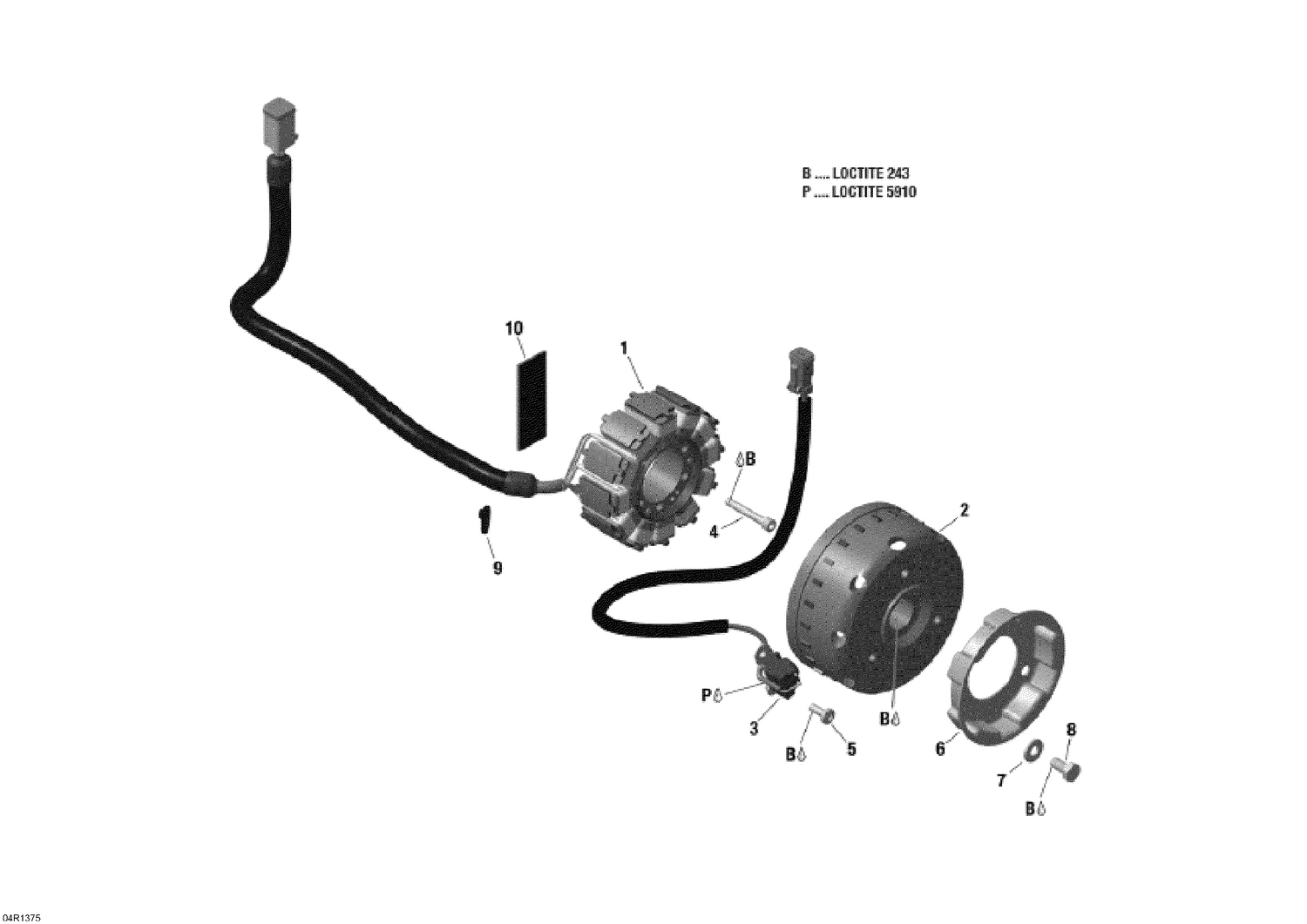

03- Magneto
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 1 | 420665435 | Stator Plate |
| 2 | 420665442 | Flywheel |
| 3 | 410922969 | Pick-Up Ass'y |
| 4 | 420241816 | SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 5 | 420640324 | Torx Screw M6 X 16 |
| 9 | 420866714 | Tie Rap |
| 10 | 420201360 | Adhesive Pad, 1.6 mm X 20 mm X 60 mm |
