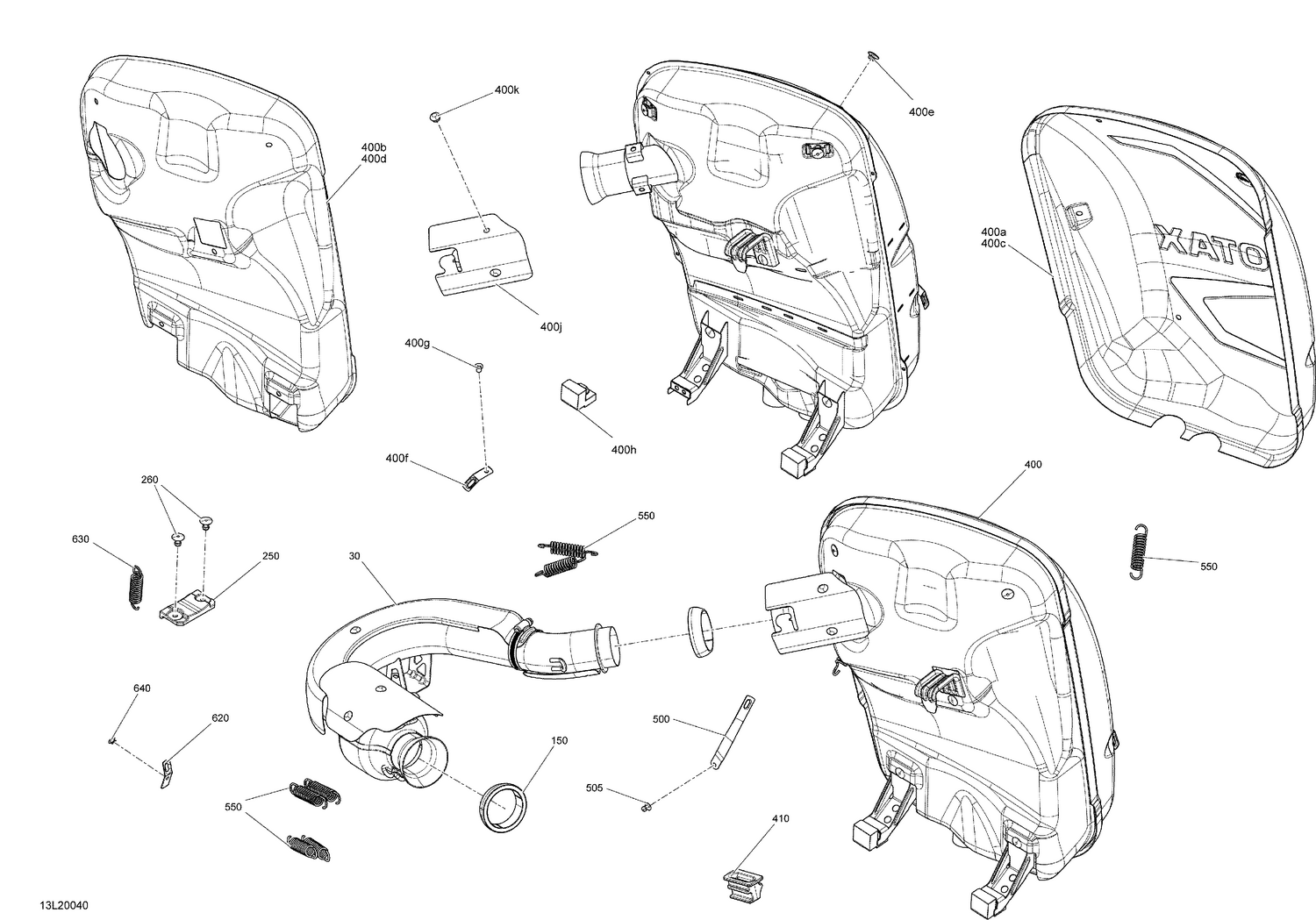

02- Engine - Exhaust
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 514055076 | Short Tube Ass'y |
| 150 | 514054174 | Exhaust Gasket |
| 250 | 514054275 | Kannatinkumi |
| 260 | 293150103 | Pop Rivet 3/16 |
| 400a | 514054474 | RH HEAT SHIELD - Call your local BRP dealership |
| 400b | 514054369 | LH HEAT SHIELD - Call your local BRP dealership |
| 400c | 514054256 | INSULATING WOOL - Call your local BRP dealership |
| 400d | 514054257 | INSULATING WOOL - Call your local BRP dealership |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054522 | Spring Bracket |
| 400g | 390909200 | Avex Rivet |
| 400h | 514054529 | Lower Stopper |
| 400j | 514054396 | DEFLECTOR - Call your local BRP dealership |
| 400k | 293150173 | Rivet 6,4 mm |
| 410 | 514054346 | Stopper |
| 500 | 514055030 | Spring Bracket |
| 505 | 390909100 | Avex Rivet |
| 550 | 415107100 | Jousi äänenv.kiinnit. |
| 620 | 514054522 | Spring Bracket This part replaces 514054391. |
| 630 | 415107100 | Jousi äänenv.kiinnit. |
