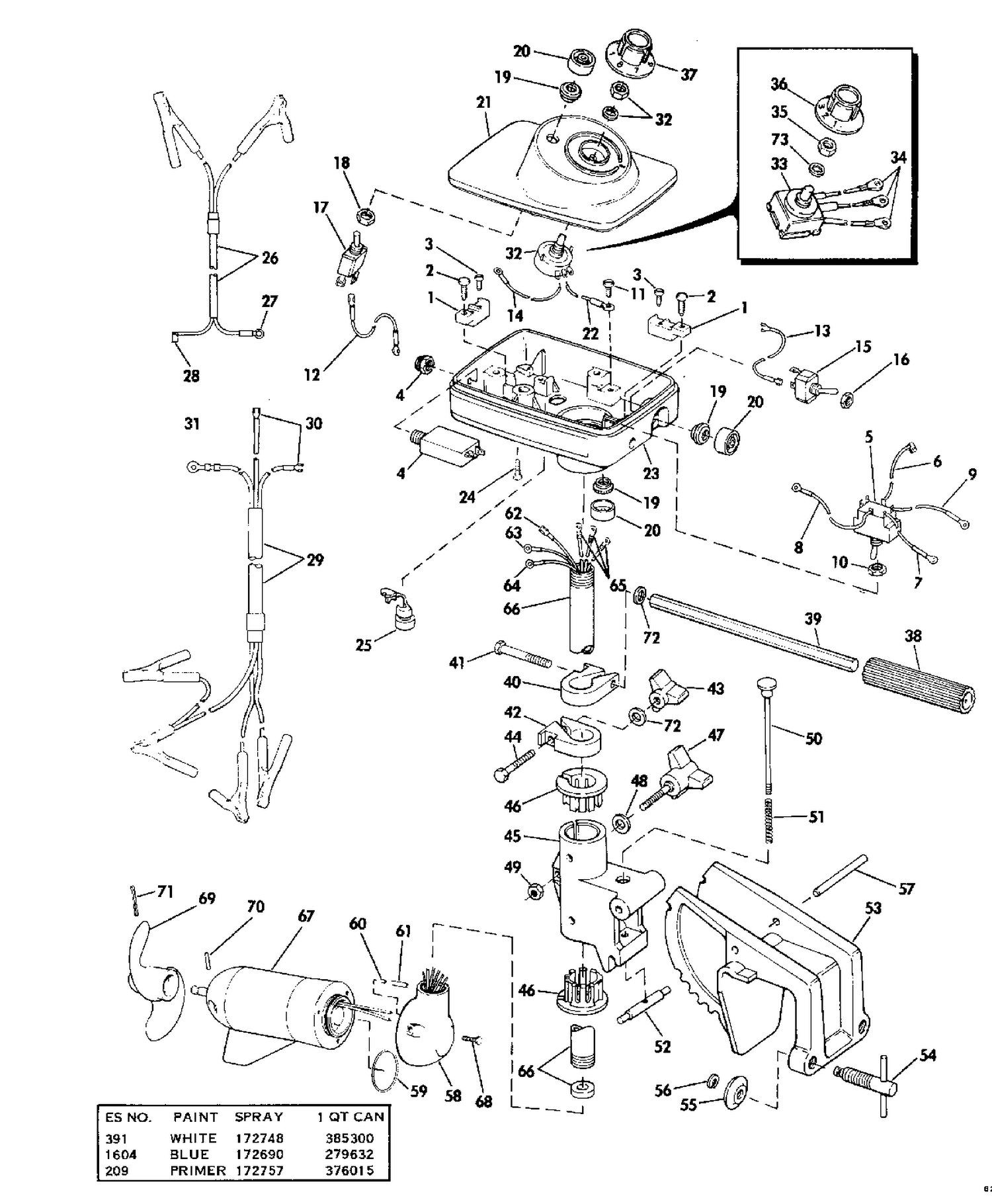

ELECTRIC OUTBOARD TRANSOM MOUNT MODELS

ELECTRIC OUTBOARD TRANSOM MOUNT MODELS

Parts (59)

RefPart NumberDescription
1 0319650 TERMINAL BOARD
2 0319605 GROMMET, Cable lwr mot cov.
4 0390629 CIRCUIT BREAKER This part replaces 0386931.
5 0581437 REVERSE SWITCH,12 V
5 0581476 REVERSE SWITCH,24 V
6 0581425 LEAD,Red,2-1/2"
7 0581426 LEAD,Red,2-3/8"
8 0581427 LEAD,GREEN/wh,6-5/8",12 V
8 0581474 LEAD,Black,4-7/8",24 V
9 0581428 LEAD,Green,3",12 V
9 0581475 LEAD,Black,3",24 V
11 0319614 SCREW, Bar clamp This part replaces 0319616.
12 0581431 LEAD,Circ.brkr to selector switch,24 V
13 0581424 LEAD,On-off switch to circ.brkr.
14 0581430 LEAD, Potentiometer to term. block, rear, 12 V
15 0386932 MASTER SWITCH,On-off
17 0386923 SPEED SELECTOR SWITCH , 24 v
21 0386943 COVER,Upper housing,12 V
21 0386944 COVER,Upper housing,24 V
22 0581429 LEAD,Poteniometer to ground,12 V
23 0321462 HOUSING
25 0320414 BUSHING, Strain relief
26 0581373 CABLE ASSY., Batt., 12 v
29 0386928 CABLE ASSY., Batt., 24 V
30 0204035 SPADE TERMINAL, 24 v.
32 0387147 POTENTIOMETER ASSY, 12 V
33 0387140 ROTARY SWITCH ASSY 24V
36 0207522 KNOB,Rotary switch,Evinrude,24 V
37 0207483 KNOB,Potentiometer,Evinrude,12 V
38 0320398 GRIP,Steering handle
39 0320393 HANDLE,Steering
40 0325617 CLAMP, Motor tube height adj. This part replaces 0320423.
42 0325617 CLAMP, Motor tube height adj. This part replaces 0320423.
43 0398863 ADJUSTMENT KNOB, Tube to bracket This part replaces 0320399.
44 0908511 SCREW This part replaces 0553114.
45 0116424 SWIVEL BRACKET This part replaces 0320342.
46 0320364 BUSHING
47 0398862 ADJUSTMENT KNOB ASSY. This part replaces 0386974.
50 0386888 KNOB & ROD, Latch
51 0320376 SPRING, Rod assy,
52 0320363 LATCH BAR
53 0394750 STERN BRACKET ASSY This part replaces 0386954.
54 0394749 CLAMP SCREW & HANDLE ASSY. This part replaces 0387191.
57 0330500 PIN Swivel brkt. to stern brkt. This part replaces 0320375.
58 0279809 ADAPTOR & O-RING,12 V
58 0391321 ADAPTOR & O-RING PKG. This part replaces 0387033.
60 0320373 BUTT SPLICE
66 0279838 MOTOR TUBE & SEAL PKG.,Evinrude
67 0433610 ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) This part replaces 0387036.
67 0433611 ELECTRIC MOTOR ASSY., 24v (includes 21, 22 & 24) This part replaces 0386971.
68 0319617 SCREW, Adaptor to motor
69 0325185 PROPELLER This part replaces 0320867.
70 0312862 ROLL PIN, Handle to shaft
70 0320408 SHEAR PIN, Prop
71 0319658 COTTER PIN, Prop
72 0303886 LOCKWASHER
73 0320688 L WASHER, Potentiometer, 12v
0279846 0279846 DECAL SET,Evinrude,12 V
0279847 0279847 DECAL SET,Evinrude,24 V
