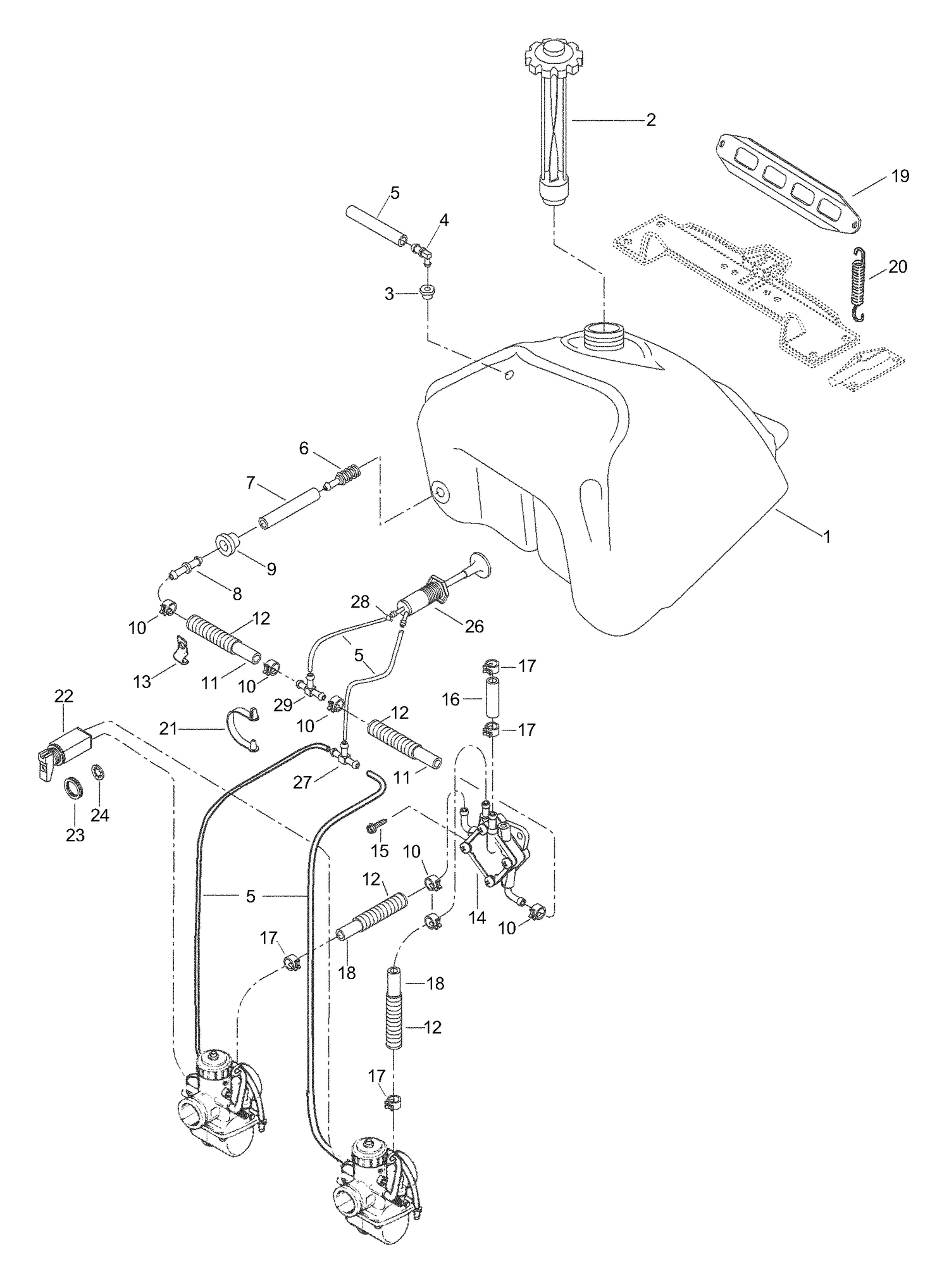

| Ref | Part Number | Description |
|---|
| 1 |
572108900 |
Fuel tank |
| 2 |
572161200 |
Fuel tank cap |
| 3 |
709200285 |
Grommet This part replaces 570135100. |
| 4 |
414814100 |
Male connector |
| 5 |
39035 |
Hose 5/3 |
| 6 |
414865700 |
Fuel filter |
| 7 |
39030 |
Fuel line 8/5 |
| 8 |
414518500 |
Male connector |
| 9 |
570045500 |
Grommet |
| 10 |
414554800 |
Clamp |
| 11 |
39004 |
Fuel line 8/5 |
| 12 |
28012 |
Tubing |
| 13 |
415018200 |
CLIP - Call your local BRP dealership |
| 14 |
403801000 |
Fuel pump |
| 15 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 16 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 17 |
414420700 |
Universal Spring Clamp |
| 18 |
39060 |
Fuel line 8/5.5 |
| 19 |
517249200 |
Fuel tank support |
| 20 |
415107100 |
Fjäder |
| 21 |
414379300 |
CABLE CLIP - Call your local BRP dealership |
| 22 |
414967000 |
CHOKE CABLE - Call your local BRP dealership |
| 23 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 24 |
394103300 |
Lock washer |
| 26 |
Not |
Available As Spare Part - Primer - DOES NOT APPLY TO THIS MODEL |
| 27 |
Not |
Available As Spare Part - T-fitting - DOES NOT APPLY TO THIS MODEL |
| 28 |
Not |
Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
