Parts Catalog

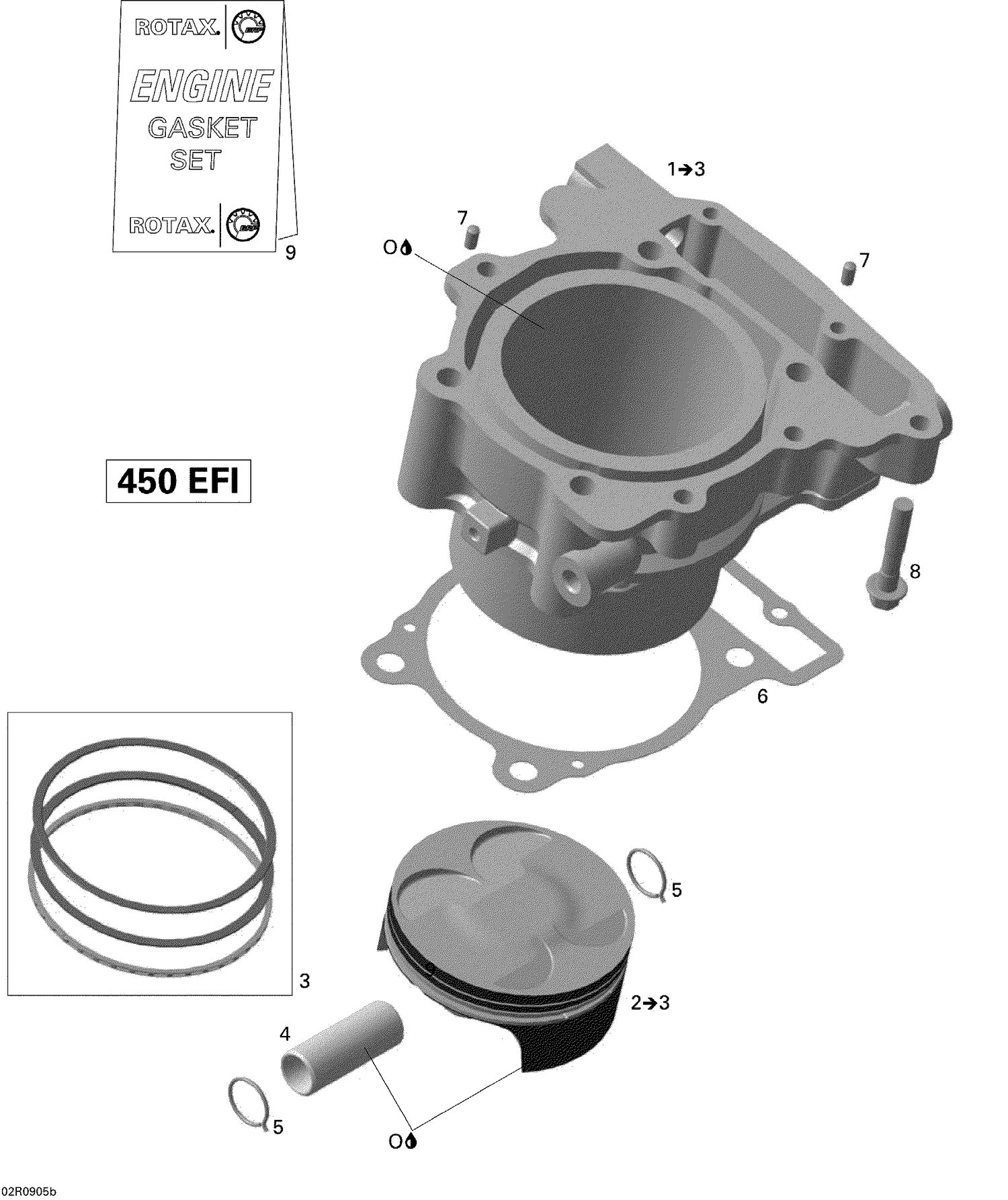

01- Cylinder And Piston

Parts (7)

Ref	Part Number	Description
3	420685134	Piston Ring Set
4	420216276	Piston Pin
5	420845107	Piston Circlip
6	420650390	Cylinder Gasket
7	420929650	Drive Pin 5 X 10
8	420940637	HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership
9	420685380	Gasket Set, Engine
