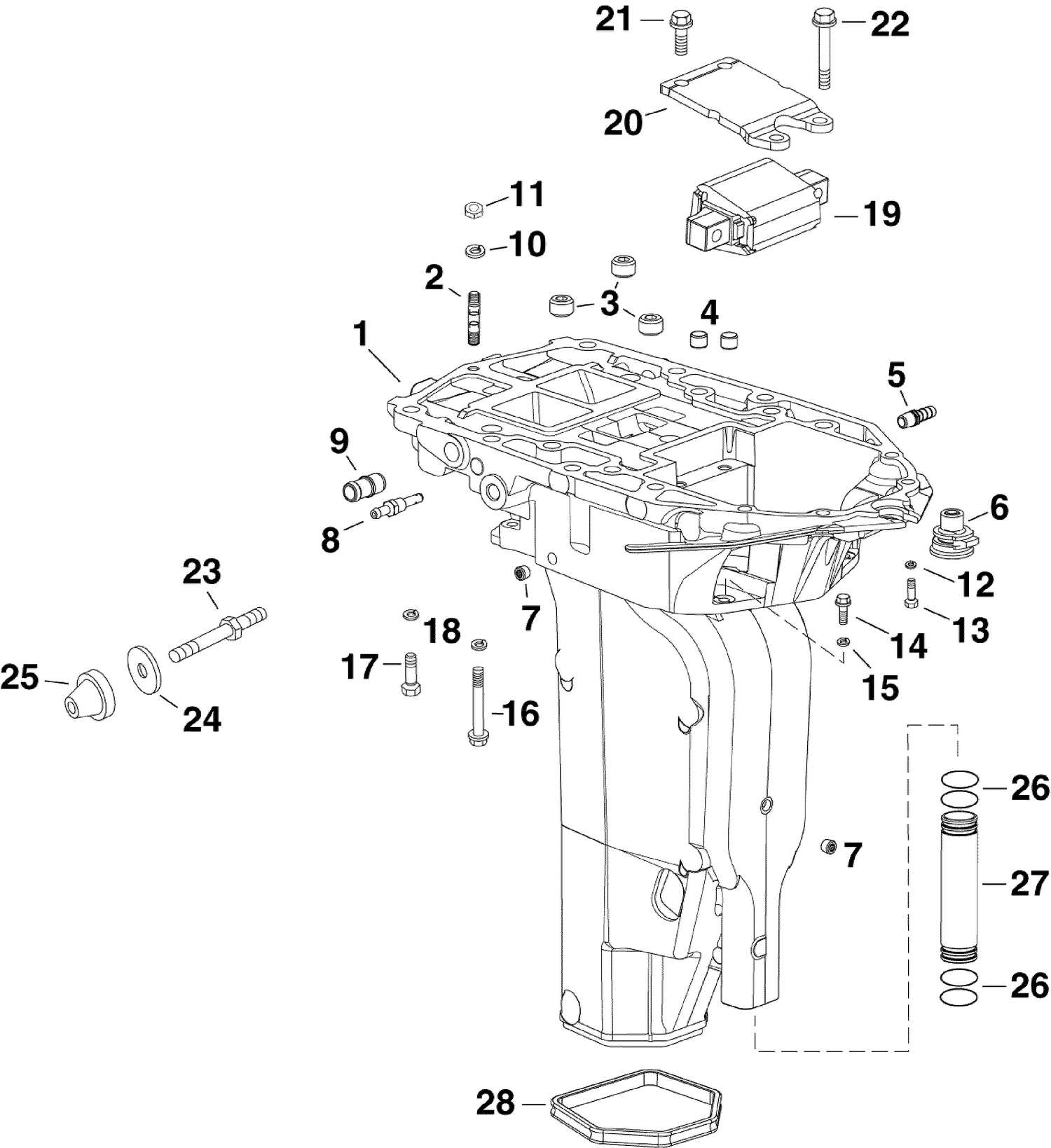

EXHAUST HOUSING INNER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007973 | INNER EXHAUST ADAPTER |
| 13 | 0306503 | SCREW, Short |
| 14 | 0341011 | SCREW, Adapter to housing, outer |
| 15 | 0329241 | RONDELLE |
| 16 | 0356803 | SCREW, Adapter to cylinder, long This part replaces 0352947. |
| 17 | 0309484 | SCREW |
| 20 | 0330929 | PLATE, Upper mount |
| 22 | 0330931 | VIS, support supérieur |
| 23 | 0329743 | STUD, Cover mount |
| 24 | 0349556 | Washer |
| 25 | 0349557 | MOUNT |
| 27 | 0354581 | WATER TUBE |
| 27 | 0354582 | WATER TUBE |
| 27 | 0354583 | WATER TUBE |
