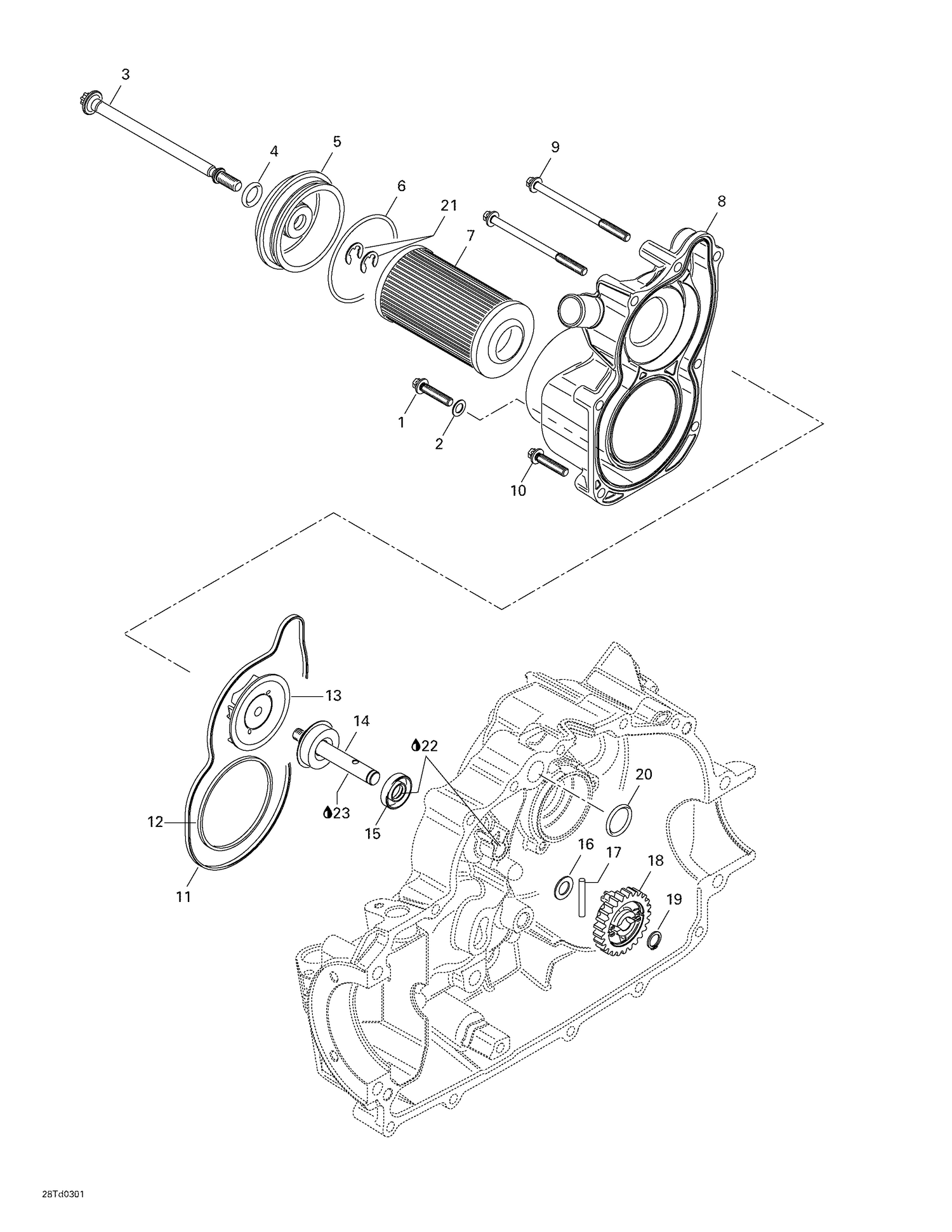

| Ref | Part Number | Description |
|---|
| 1 |
420641258 |
Torx Flange Screw M6 X 35 This part replaces 711641253. |
| 2 |
404146600 |
Sealing Washer |
| 3 |
295501207 |
Oil Filter Screw Kit This part replaces 711641100. |
| 4 |
420950860 |
O-Ring This part replaces 711950860. |
| 5 |
711610325 |
Oil Filter Cover |
| 6 |
420230923 |
O-Ring This part replaces 711230920. |
| 7 |
420956741 |
Oil Filter This part replaces 711956740. |
| 8 |
711222651 |
Water Pump Housing |
| 9 |
420641228 |
Torx Flange Screw M6 X 85 This part replaces 420641223. |
| 10 |
420641258 |
Torx Flange Screw M6 X 35 This part replaces 711641253. |
| 11 |
711630100 |
Gasket |
| 12 |
711630170 |
Gasket |
| 13 |
711222540 |
Water Impeller |
| 14 |
711220827 |
Waterpump Shaft |
| 15 |
Not |
Available As Spare Part - Oil Seal (See Crankcase) |
| 16 |
420827590 |
Thrust Washer This part replaces 711827590. |
| 17 |
420232431 |
Needle Pin This part replaces 711232430. |
| 18 |
420635191 |
Idle Gear, 25 Teeth This part replaces 711635190. |
| 19 |
420245330 |
Snap Ring |
| 20 |
Not |
Available As Spare Part - O-Ring (See Crankcase) |
| 21 |
711845240 |
Retaining Ring |
| 22 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
