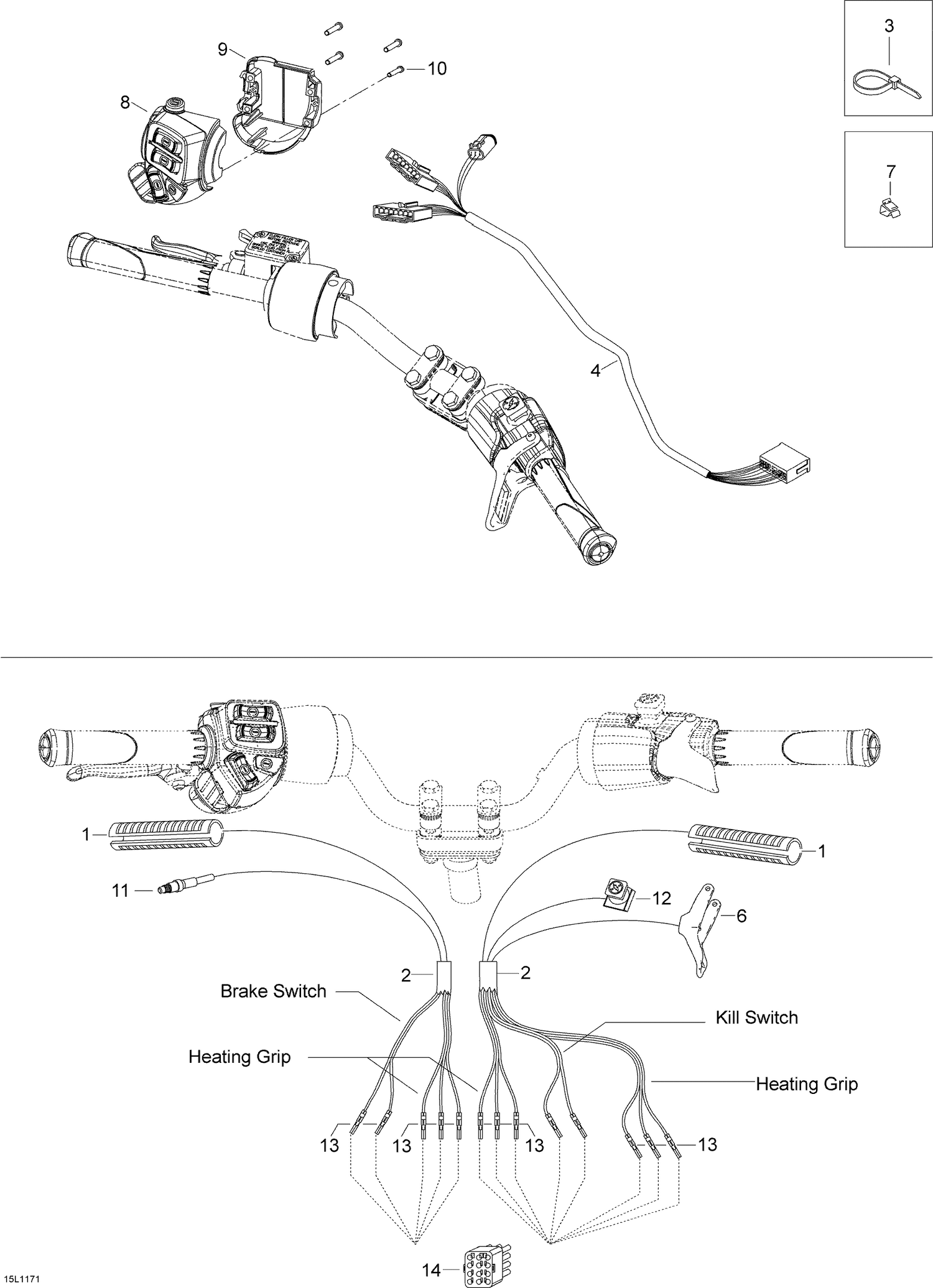

| Ref | Part Number | Description |
|---|
| 1 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership |
| 2 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 3 |
293750008 |
Tie-Rap 368 mm |
| 4 |
605353266 |
STEERING HARNESS - Call your local BRP dealership |
| 6 |
512060214 |
Handle Assy |
| 7 |
414227300 |
Clip |
| 8 |
515177028 |
Switch housing |
| 9 |
515175926 |
Housing Switch Plate |
| 10 |
40903 |
Plastofast-screw 3.5 x 25 |
| 11 |
507032366 |
Microswitch |
| 12 |
515177362 |
Kill Switch This part replaces 515177061. |
| 13 |
605642628 |
CONNECTOR - Call your local BRP dealership |
