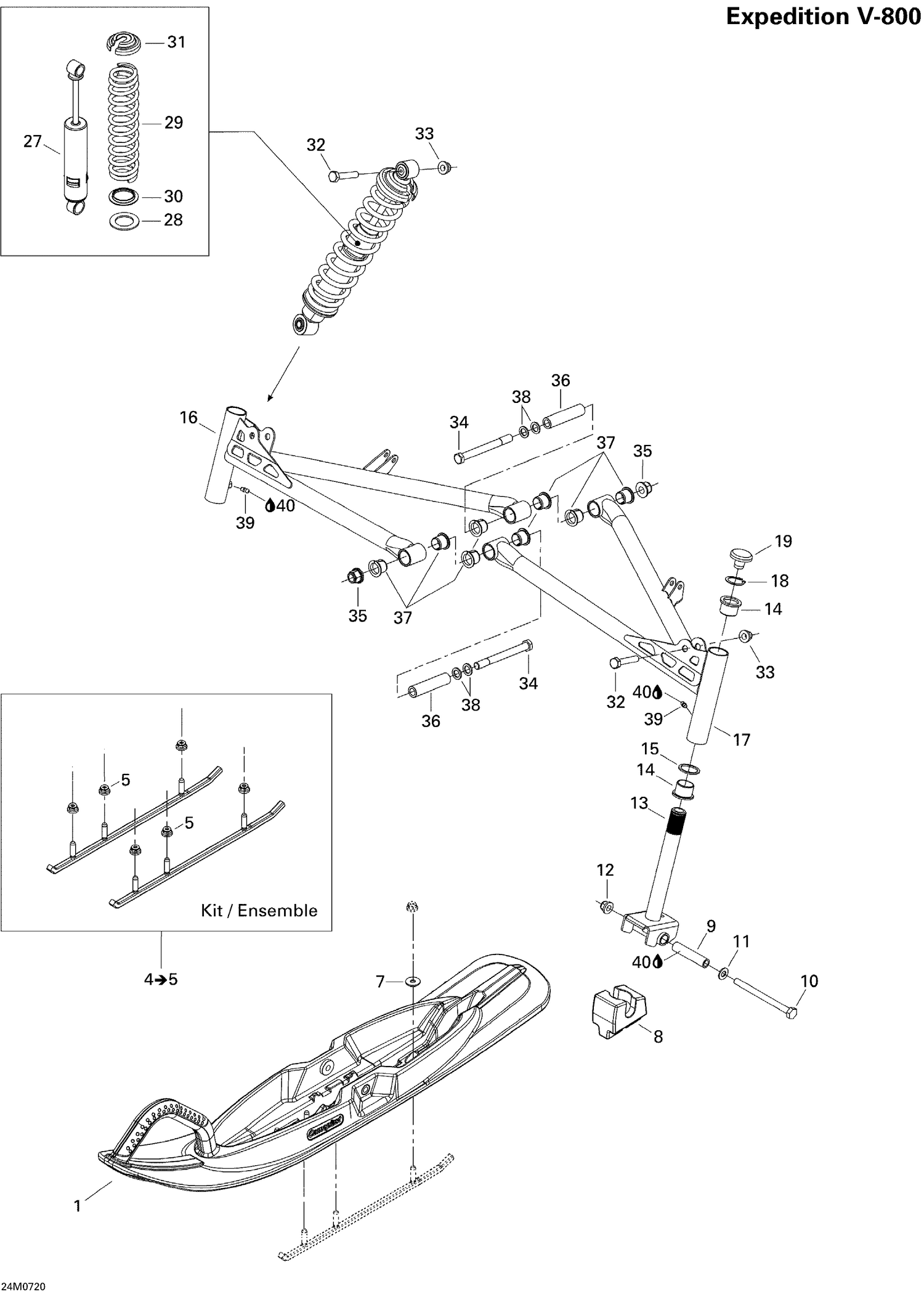

07- Front Suspension And Ski
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505072020 | Large ''Blow Mold'' Ski With Handle |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 234082410 | Flat Washer 8 mm |
| 8 | 505070978 | SKI STOPPER - Call your local BRP dealership |
| 9 | 506133300 | Spacer |
| 10 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 11 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 12 | 232500416 | Elastic Stop Nut M10 |
| 13 | 505072001 | SKI LEG - Call your local BRP dealership |
| 14 | 505070003 | Cushion |
| 15 | 505070004 | WASHER - Call your local BRP dealership |
| 16 | 505071739 | RH LOWER ARM - Call your local BRP dealership |
| 17 | 505071740 | LH LOWER ARM - Call your local BRP dealership |
| 18 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 19 | 572091300 | Cap |
| 27 | 505071487 | Front Shock |
| 28 | 503184400 | Washer |
| 29 | 505072228 | Full Moon Spring |
| 30 | 505071954 | Spring Guide |
| 31 | 706200881 | Spring Stopper This part replaces 503140600. |
| 32 | 207005544 | Hex. Screw M10 X 55 |
| 33 | 233201414 | Hex. Flange Elastic Nut M10 |
| 34 | 230022044 | HEX. SCREW M12 X 120 - Call your local BRP dealership |
| 35 | 233221414 | Hex. Flange Elastic Nut M12 |
| 36 | 505071366 | BUSHING - Call your local BRP dealership |
| 37 | 505072094 | BUSHING - Call your local BRP dealership |
| 38 | 503189276 | Washer |
| 39 | 408200700 | Grease Fitting |
