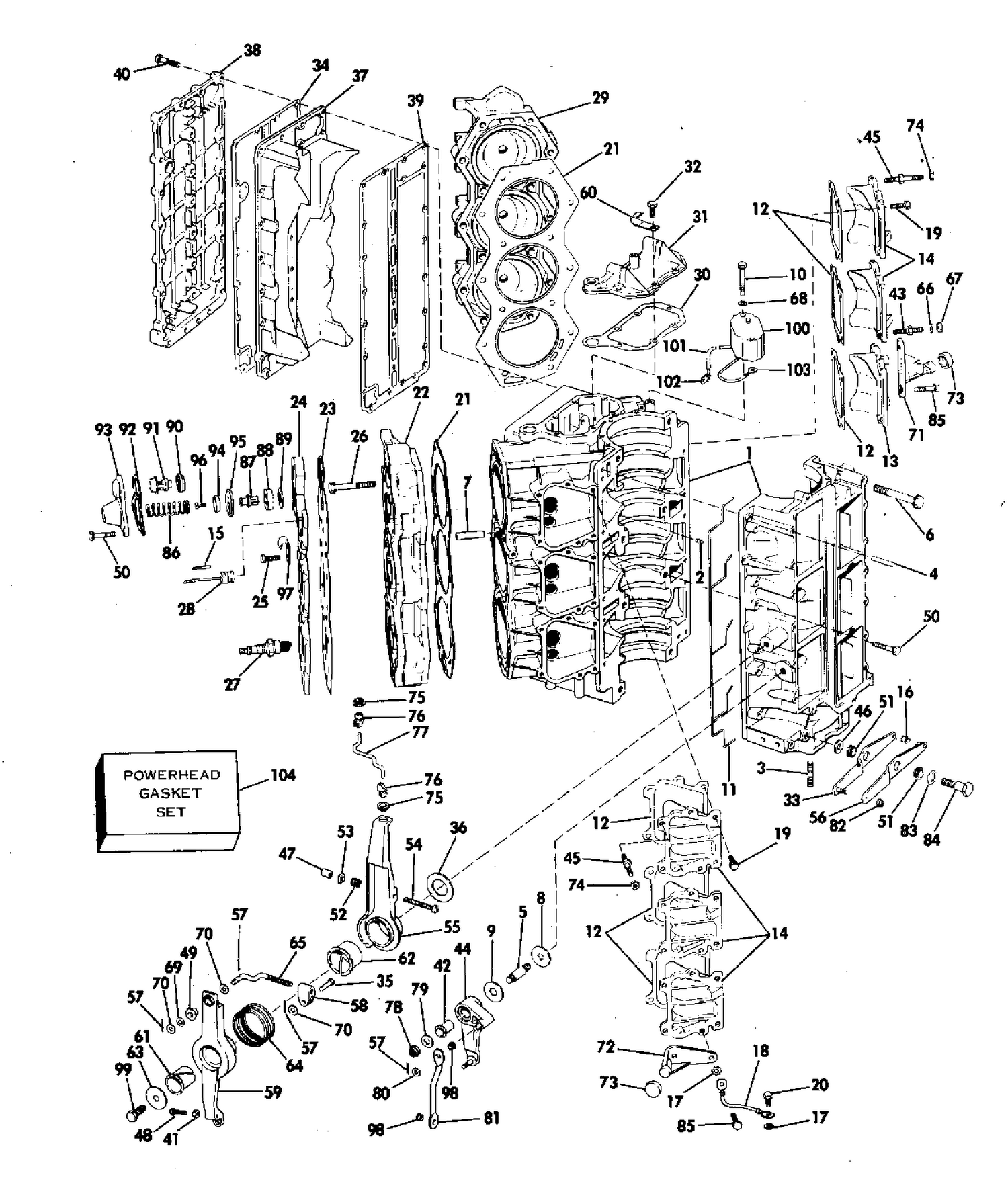

| Ref | Part Number | Description |
|---|
| 1 |
0387477 |
CYLINDER CRANKCASE ASSY. |
| 6 |
0316988 |
SCREW, Lockplate cyl. to c'case |
| 7 |
0318357 |
DEFLECTOR, Cyl. water passage |
| 9 |
0320814 |
WASHER, Shift lever to crankcase |
| 10 |
0304913 |
SCREW, Mounting |
| 11 |
0320884 |
SEAL, Cylinder to crankcase |
| 12 |
0307133 |
GASKET |
| 13 |
0328005 |
COVER, Bypass cover This part replaces 0320939. |
| 14 |
0328004 |
COVER, Bypass This part replaces 0320940. |
| 16 |
0318590 |
BUSHIG,Bellcrank & rod |
| 18 |
0376349 |
FIL, masse |
| 19 |
0306049 |
SCREW |
| 21 |
0320745 |
GASEKT,Cylinder head,150 |
| 22 |
0325557 |
CYL. HEAD, Stbd., 150, 175 This part replaces 0320644. |
| 23 |
0321028 |
GASKET Cover |
| 24 |
0320840 |
COVER, Cylinder head |
| 25 |
0306409 |
VIS, collecteur vers carter-moteur |
| 26 |
0307267 |
SCREW |
| 27 |
0384771 |
SPARK PLUG, Ch ul-77v |
| 28 |
0386686 |
SWITCH TEMP |
| 29 |
0320643 |
CYLINDER HEAD,Port |
| 30 |
0317951 |
GASKET, Water pass. cover |
| 31 |
0318473 |
COVER, Water passage |
| 32 |
0300646 |
VIS, ancrage |
| 33 |
0387281 |
BELLCRANCK ASSY. |
| 34 |
0321435 |
GASKET , Exh. cover, 150, 175, 200 |
| 36 |
0320813 |
WASHER, Spark advance lever |
| 37 |
0326308 |
ECH.COVER,Inner,150,175,200 This part replaces 0320938. |
| 38 |
0320642 |
COVER,Exhaust outer |
| 39 |
0321182 |
GASKET, Inner cover |
| 40 |
0303398 |
VIS, support This part replaces 0302030. |
| 42 |
0320805 |
BUSHING, Shift lever |
| 43 |
0322068 |
BOLT, Doubld end, bypass cover |
| 44 |
0387214 |
SHIFT LEVER & STUD |
| 45 |
0320768 |
BOLT, Double end |
| 47 |
0318660 |
BUMPER, Screw, throttle stop |
| 50 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 51 |
0318248 |
BUSHING BELLCRANK |
| 54 |
0322357 |
SCREW, Idle adjust This part replaces 0302238. |
| 55 |
0320836 |
LEVER, Spark advance |
| 56 |
0387282 |
BELLCRANK ASSY. |
| 58 |
0310524 |
YOKE |
| 59 |
0389821 |
LEVER, Throttle This part replaces 0320835. |
| 60 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 61 |
0320811 |
BUSHING |
| 62 |
0320812 |
BUSHING, Spark lever |
| 64 |
0321270 |
SPRING, Throttle lever |
| 65 |
0320951 |
LINK, Throttle lever |
| 69 |
0204757 |
BOW WASHER |
| 70 |
0302474 |
WAHSER,Link |
| 71 |
0319217 |
PIN,Clevis to shift lock |
| 72 |
0319218 |
SUPPORT BNRACE,Stbd. |
| 73 |
0313581 |
BUMBER, Mount screw |
| 75 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 76 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 77 |
0330116 |
ROD, Spark advance This part replaces 0320950. |
| 79 |
0309335 |
WASHER |
| 80 |
0329241 |
RONDELLE This part replaces 0306482. |
| 81 |
0320952 |
ROD,Shift lever to bell |
| 85 |
0306418 |
VIS, ancrage |
| 86 |
0317245 |
SPRING, Control valve |
| 87 |
0321027 |
VALVE, Preasure realese |
| 88 |
0320880 |
SEAT |
| 89 |
0321222 |
CUP, Valve seat |
| 90 |
0310058 |
GASKET, Thermostat |
| 91 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 92 |
0321184 |
GASHKET,Thermostatcover |
| 93 |
0321013 |
COVER, Thermostat |
| 94 |
0321220 |
RETAINER, Spring valve |
| 95 |
0321221 |
SEAL, Pressure release |
| 97 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 98 |
0315094 |
BUSHING |
| 99 |
0312455 |
BOLT,Throttle lever retainer |
| 100 |
0581736 |
VOLTAGE REGULATOR This part replaces 0581491. |
| 101 |
0510999 |
SLEEVE |
