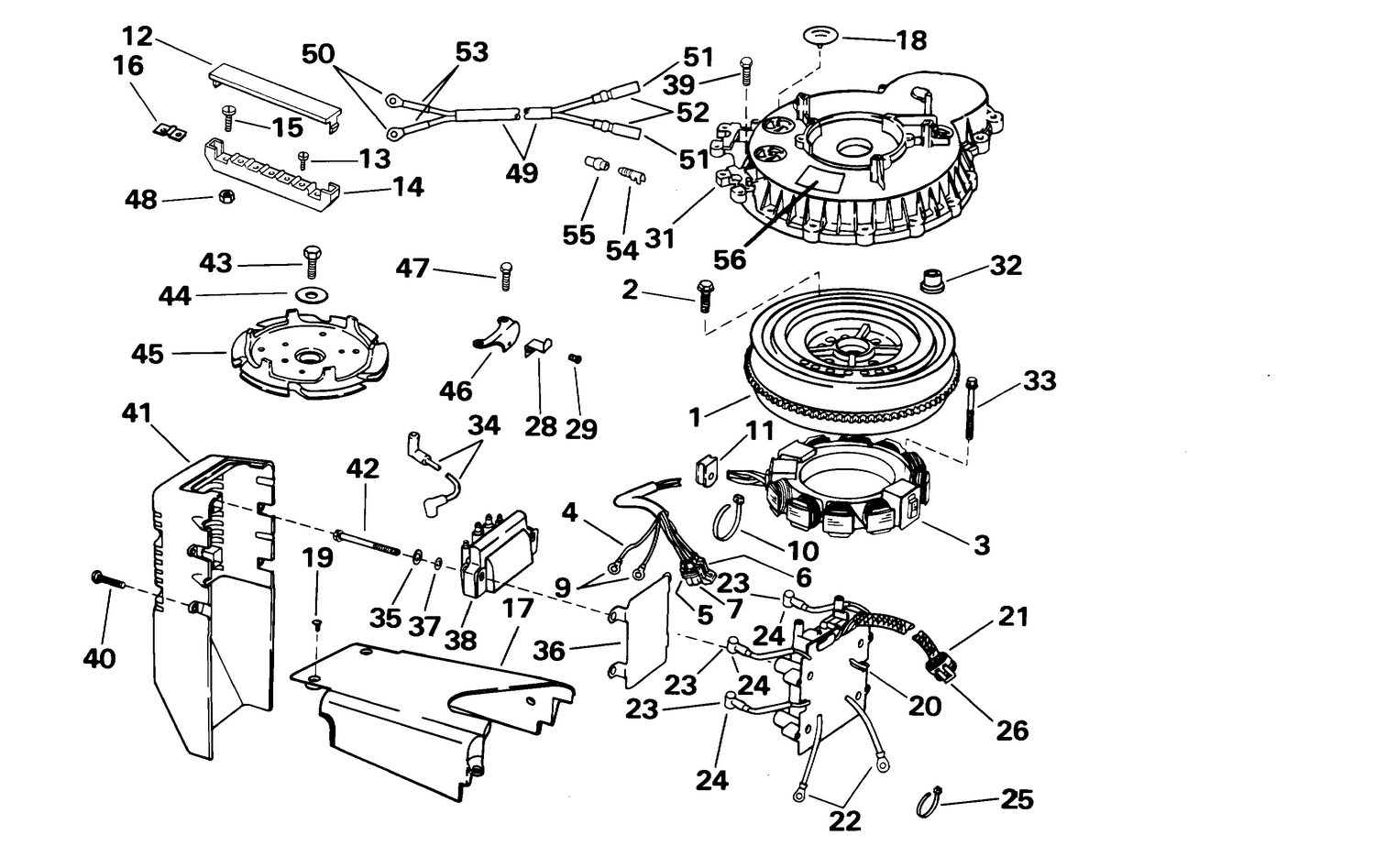

| Ref | Part Number | Description |
|---|
| 1 |
0584843 |
ENSEMBLE VOLANT-MOTEUR |
| 2 |
0336135 |
SCREW, Flywheel |
| 3 |
0586092 |
STATOR ASSY. |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0336732 |
GROMMET |
| 12 |
0323729 |
COVER, Terminal block |
| 13 |
0329182 |
VIS, borne |
| 14 |
0326255 |
LEVER, Choke knob |
| 15 |
0306644 |
VIS, capteur de papillon |
| 16 |
0315004 |
FIL DE LIAISON, bornier |
| 17 |
0342867 |
COVER, Power pack to flywheel |
| 18 |
0336492 |
SOUPAPE, couvercle de volant-moteur |
| 20 |
0586292 |
BLOC D’ALIMENTATION |
| 28 |
0335204 |
INDICATEUR DE CALAGE |
| 31 |
0438022 |
COVER ASSY., Flywheel |
| 33 |
0308995 |
SCREW, Front mount |
| 34 |
5005805 |
ENSEMBLE CÂBLAGE, bobine allumage, 15½ " (394 mm) This part replaces 0584919. |
| 34 |
5005806 |
ENSEMBLE CÂBLAGE, bobine allumage, 14½ " (370 mm) This part replaces 0584920. |
| 36 |
0514289 |
BLINDAGE |
| 38 |
0583740 |
COIL Assy |
| 39 |
0909533 |
SCREW, Pressure relief valve cover |
| 41 |
0514288 |
COUVERCLE, bloc d’alimentation |
| 42 |
0331102 |
SCREW, Coil to block |
| 43 |
0336135 |
SCREW, Flywheel |
| 44 |
0343600 |
WASHER, Screw, pulley |
| 45 |
0342818 |
PULLEY, Start |
| 46 |
0343027 |
BRACKET, Timing pointer |
| 47 |
0124880 |
SCREW, Bracket, timing pointer |
| 49 |
0583356 |
CABLE ASSY., AC lighting |
