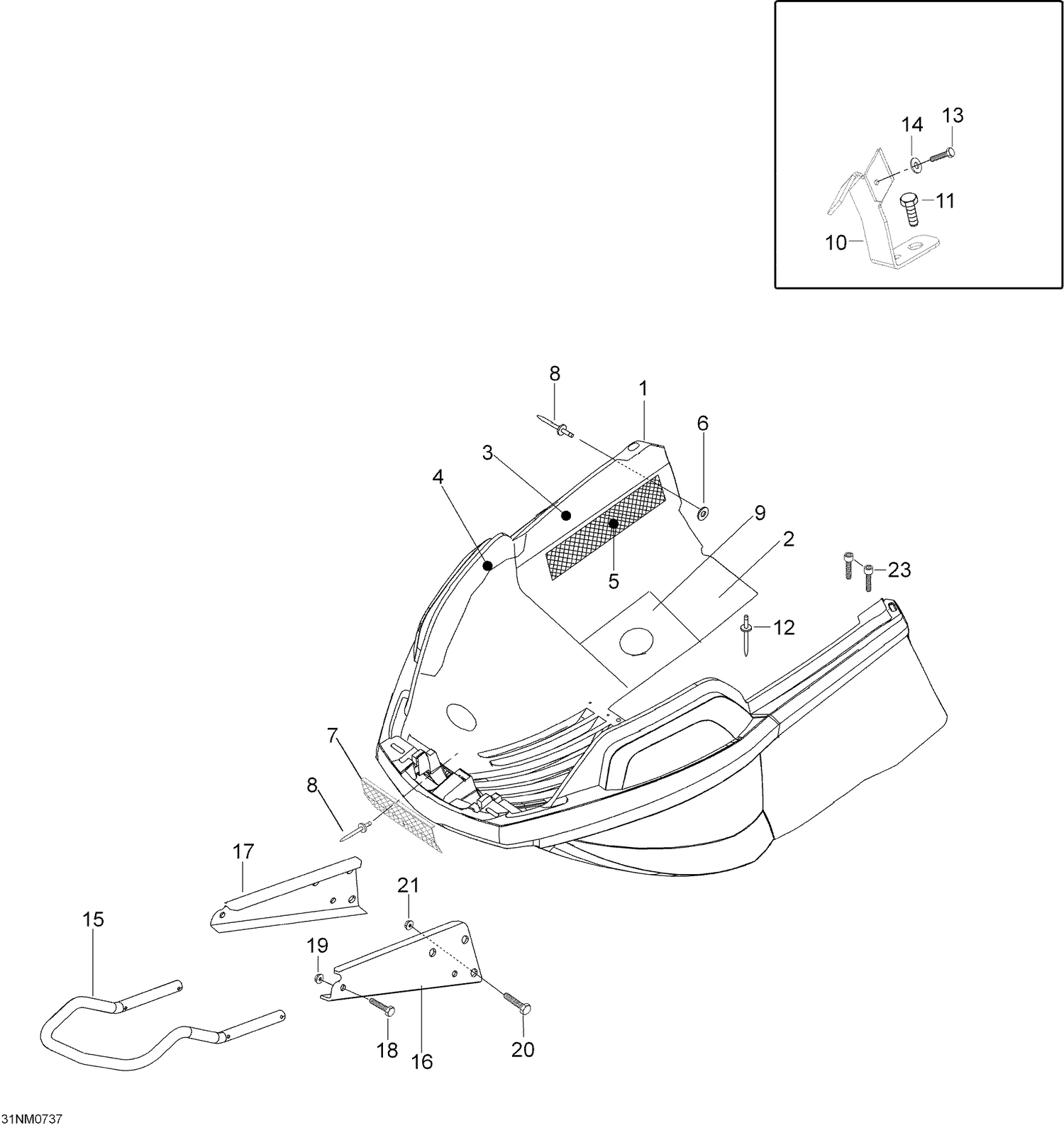

| Ref | Part Number | Description |
|---|
| 1 |
605255248 |
Bottom Pan ass'y Yeti LTS600mm - Call your local BRP dealership This part replaces 605153487. |
| 2 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 3 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 4 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 5 |
605354968 |
RH SIDE GRILL - Call your local BRP dealership |
| 5 |
605354969 |
LH SIDE GRILL - Call your local BRP dealership |
| 6 |
20008 |
Washer A5,3 |
| 7 |
605255513 |
FRONT GRILL - Call your local BRP dealership This part replaces 605354726. |
| 8 |
36009 |
Rivet |
| 9 |
605354031 |
Heat protector |
| 10 |
605354709 |
LH BRACKET - Call your local BRP dealership |
| 10 |
605354710 |
RH BRACKET - Call your local BRP dealership |
| 11 |
40401 |
Screw M6 x 10 |
| 12 |
36037 |
Rivet |
| 13 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 14 |
20008 |
Washer A5,3 |
| 15 |
605255112 |
BUMPER - Call your local BRP dealership |
| 16 |
605355113 |
LH BUMPER PLATE - Call your local BRP dealership |
| 17 |
605355114 |
RH BUMPER PLATE - Call your local BRP dealership |
| 18 |
40002 |
Screw M6 x 40 |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 20 |
40036 |
Screw M8 x 20 |
| 21 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 22 |
36108 |
Rivet |
