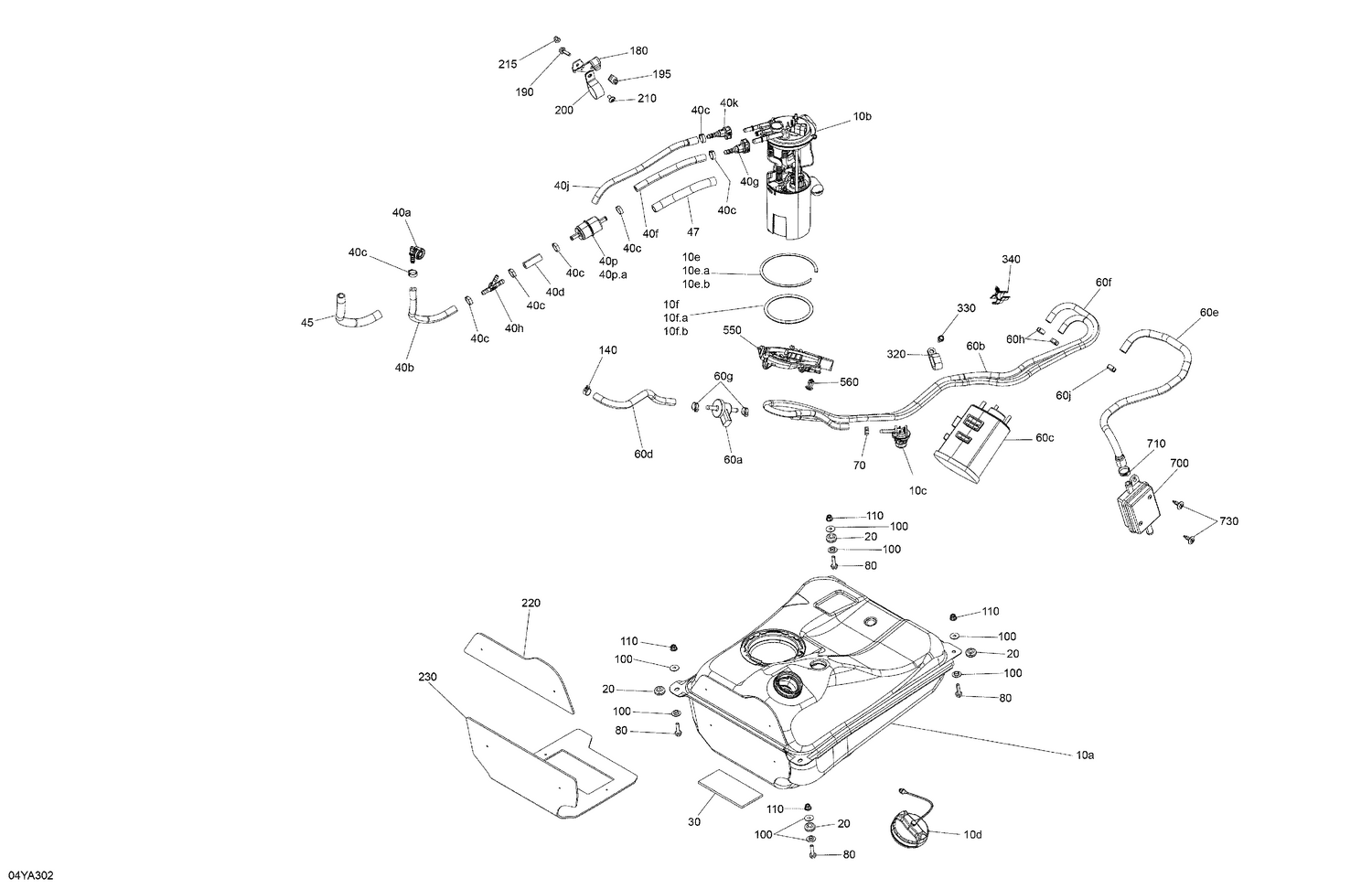

02- Engine - Fuel — Parts Catalog

Parts (49)

Ref	Part Number	Description
10a	709001447	Fuel Tank This part replaces 219800299.
10b	709000370	Fuel Pump Module
10c	709000413	Rollover Valve
10d	709000683	Gaz Cap
10e	219800248	Seal Kit
10f	219800248	Seal Kit
20	709000582	Grommet
30	709000130	Carpet
40a	293710105	Elbow Fitting 90°
40b	709000264	Fuel Line 7.9 mm, Meter
40c	293650125	Oetiker Clamp
40d	709000265	Fuel Line 7.9 mm, Meter
40f	709000264	Fuel Line 7.9 mm, Meter
40g	709000684	Female Quick Fitting Ass'y
40h	513033926	Y Fitting
40j	709001199	Formed Hose
40k	293710192	Quick Connect Pipe Fitting This part replaces 709000686.
40p	219800056	Fuel Filter Ass'y
45	219704408	Tubing 16 Mm 1000Mm Long
47	513033231	Protector Tube, 16 mm
60a	709000443	Bleed Valve
60b	709000656	Hose, 880MM
60c	709000090	Vapor Canister
60d	709000657	Hose, 275MM
60e	709001112	Hose, 238MM
60f	709001622	Hose This part replaces 709000658.
60g	293650047	Crimp Clamp, 15.3-706R
60h	293650025	Oetiker Gear Clamp
60j	293650140	Oetiker Clamp
70	293650025	Oetiker Gear Clamp
80	207662544	Hex. Flange Screw M6 X 25
100	709001287	Bushing This part replaces 709000716.
110	233261414	Hex. Flange Elastic Nut M6 x 1.0
140	513033029	Universal Spring Clamp
180	709000452	Fuel Filter Support
190	207662044	Hex. Flange Screw M6 X 20
195	250100198	Panel Nut M6 X 1.0
200	513033047	Open Clamp
210	250000767	Torx Truss Screw M6 X 12
215	232361493	Domed Nut M6
220	709000157	Reflective Sheet
230	709001153	Aluminum Sheet
320	709000057	Open Clamp
330	210261250	Hex. Flange Screw M6 X 12
340	709000571	Hose Support
550	709000814	Hose Support
560	518321954	Panel Fastener
700	709000524	Air Filter
710	513033865	Spring Clamp
