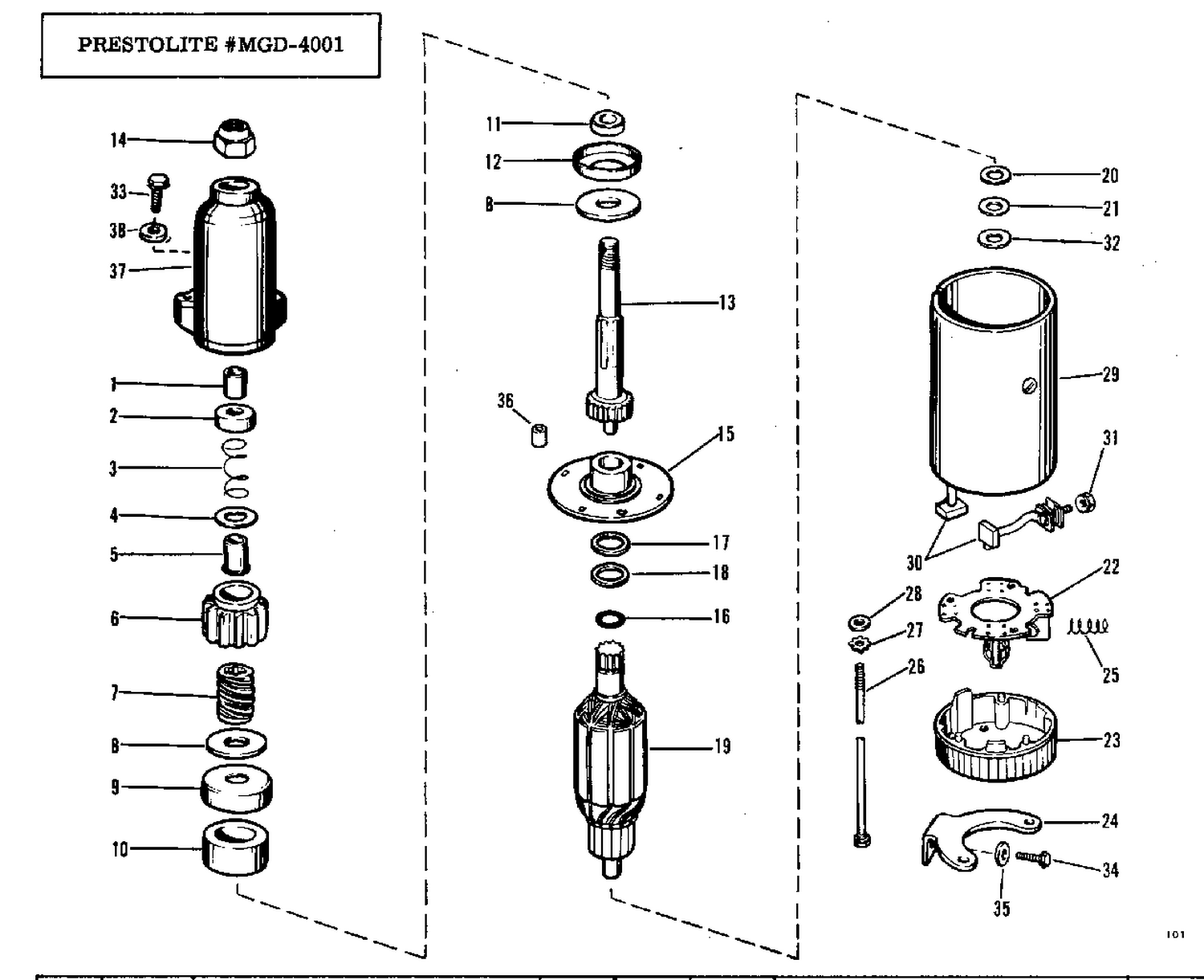

| Ref | Part Number | Description |
|---|
| 1 |
0305545 |
SLEEVE, Bendix drive |
| 2 |
0204375 |
STOP, Pinion |
| 4 |
0204071 |
WASHER, Pinion |
| 5 |
0204374 |
SLEEVE, Anti-drift spring |
| 6 |
0204376 |
PINION |
| 7 |
0204377 |
SCREW SHAFT |
| 9 |
0204379 |
CAP, Cushion, upper |
| 10 |
0204381 |
CUSHION, Pinion |
| 11 |
0204378 |
SPACE, Cushion |
| 12 |
0204380 |
CAP, Cushion, lower |
| 13 |
0378178 |
GEAR & SHAFT ASSY |
| 15 |
0381582 |
END HEAD , Drive This part replaces 0379973. |
| 16 |
0310996 |
O RING |
| 17 |
0204589 |
WASHER, Fibre, 1 32" |
| 18 |
0204588 |
WASHER STEEL, .042" |
| 19 |
0379971 |
ARMATURE ASSY |
| 22 |
0379967 |
BRUSH PLATE & HOLDER |
| 23 |
0379966 |
HEAD ASSEMBLY, Commutator end |
| 24 |
0307341 |
BRACKET, Mounting |
| 25 |
0383891 |
SPRING SET This part replaces 0311128. |
| 26 |
0311101 |
THRU BOLT |
| 28 |
0302471 |
W.ASHER, Plain |
| 29 |
0379972 |
FRAME & FIELD |
| 32 |
0311001 |
SCREW, Support to engine |
| 33 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 34 |
0309263 |
BOLT, Handle This part replaces 0307342. |
| 35 |
0302471 |
W.ASHER, Plain |
| 36 |
0305851 |
SEAL |
| 37 |
0382959 |
BUSHING & HOUSING |
| 0377304 |
0377304 |
STARTER DRIVE ASSEMBLY |
| 0379819 |
0379819 |
STARTER MOTOR ASSY |
