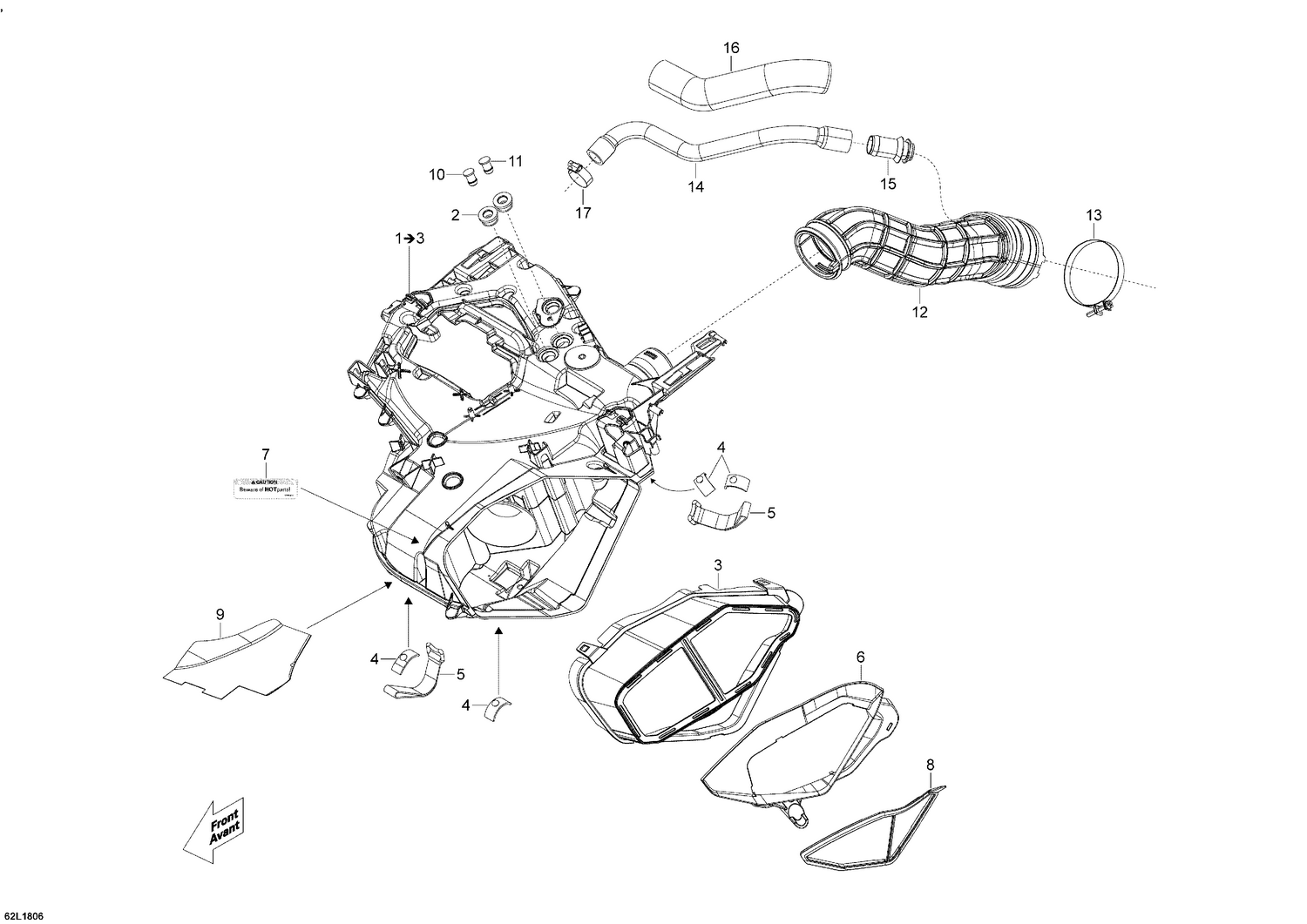

02- Air Intake 600 ACE - XU
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000715 | Secondary Chamber Ass'y |
| 2 | 508000574 | Grommet |
| 3 | 508000595 | Air Intake Filter |
| 4 | 508000537 | Stopper |
| 5 | 508000820 | Velcro-Strip |
| 6 | 508001021 | Adapter This part replaces 508000687. |
| 7 | 516006903 | Hot Parts Decal |
| 8 | 508000609 | Air Filter |
| 9 | 508000622 | Reflective Sheet |
| 10 | 572092900 | Cap |
| 11 | 572092900 | Cap |
| 12 | 508000838 | Air Intake Hose |
| 13 | 293650229 | Gemi Clamp |
| 14 | 508000774 | Formed Vent Hose |
| 15 | 273000234 | Breather |
| 16 | 508000648 | Tube Isolator |
