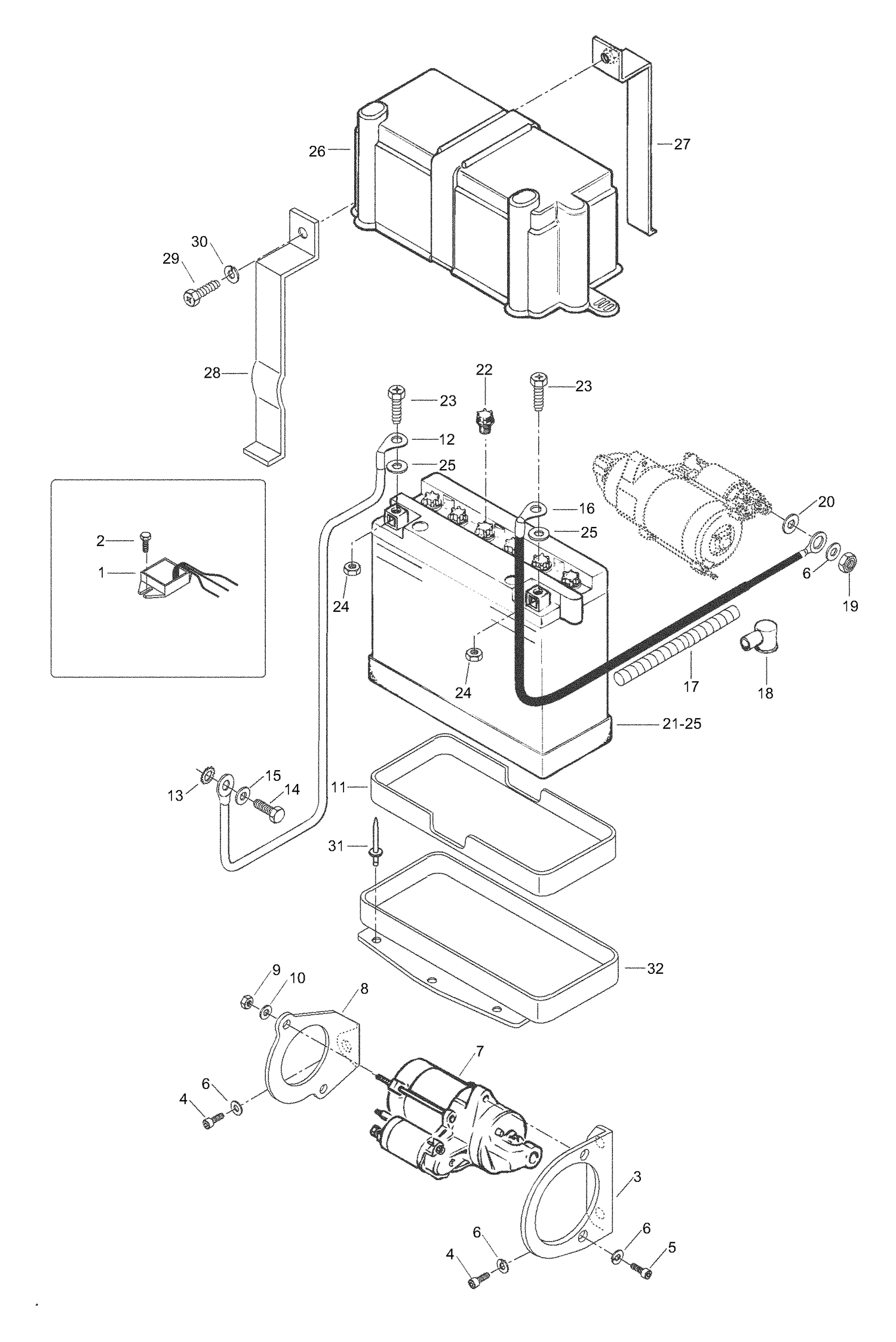

| Ref | Part Number | Description |
|---|
| 1 |
515163900 |
VOLTAGE REGULATOR - Call your local BRP dealership |
| 2 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 3 |
420853730 |
Starter bracket, PTO-side |
| 4 |
40305 |
Allen screw M8x20 |
| 5 |
40289 |
Allen screw M8x25 |
| 6 |
20014 |
Spring washer |
| 7 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 8 |
420953011 |
STARTER SUPPORT (MAG) - Call your local BRP dealership |
| 9 |
33009 |
Nut elastic M5 |
| 10 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 11 |
Not |
Available As Spare Part - Battery seat - DOES NOT APPLY TO THIS MODEL |
| 12 |
515175425 |
Ground wire |
| 13 |
20109 |
Ext. Tooth lock washer |
| 14 |
Not |
Available As Spare Part - Screw M6x16 - DOES NOT APPLY TO THIS MODEL |
| 15 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 16 |
515161300 |
Battery wire |
| 17 |
28012 |
Spiral tube |
| 18 |
570151000 |
Cap protection |
| 19 |
33003 |
Nut M8 |
| 20 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 22 |
410300800 |
Battery cap |
| 23 |
207161644 |
Screw M6x16 |
| 24 |
232061414 |
Nut M6 |
| 25 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 26 |
570022000 |
Battery cover |
| 27 |
517286000 |
Steel strip |
| 28 |
517286100 |
Steel strip |
| 29 |
40864 |
Screw |
| 30 |
20013 |
Spring washer |
| 31 |
390402200 |
Pop Rivet 3/16 |
