| Ref | Part Number | Description |
|---|
| BRK_L1 |
515177192 |
Female Housing, 2 Circuits |
| BRK_L1 |
710001153 |
Seal Wire |
| BRK_L1 |
710001164 |
Female Terminal |
| BRK_L2 |
515177192 |
Female Housing, 2 Circuits |
| BRK_L2 |
710001153 |
Seal Wire |
| BRK_L2 |
710001164 |
Female Terminal |
| BUZZER |
278000220 |
Male Connector, 2 Circuits |
| BUZZER |
278000223 |
Female Terminal |
| BUZZER |
278001065 |
Wire Seal |
| DB_F |
278000632 |
Female Terminal |
| DB_F |
278001665 |
Female Terminal |
| DB_F |
278002896 |
Housing, 6 Circuits |
| DB_F |
293000052 |
Sealing Cap |
| DB_F |
515175678 |
Male Wedge, 6 Circuits |
| DB_M |
278000631 |
Male Terminal |
| DB_M |
278000735 |
Female Lock, 6 Circuits |
| DB_M |
293000052 |
Sealing Cap |
| DB_M |
710001348 |
Male Terminal |
| DB_M |
710001539 |
Male Terminal Housing, 6 Circuits |
| HIC5_T_F |
278000223 |
Female Terminal |
| HIC5_T_F |
278000273 |
Male Housing, 3 Circuits |
| HIC5_T_F |
278001065 |
Wire Seal |
| HIC5_T_M |
278000216 |
Wire Seal |
| HIC5_T_M |
278000222 |
Male Terminal |
| HIC5_T_M |
278000281 |
Female Terminal Housing, 3 Circuits |
| HIC5_T_M |
278001065 |
Wire Seal |
| HIC5_T_M |
293650187 |
Clip |
| HIC_T_M |
278002860 |
Sealing Cap |
| HIC_T_M |
278003488 |
Housing 20 Circuits |
| HIC_T_M |
515178013 |
Male Terminal |
| LBF_DP |
710002000 |
Housing |
| LBF_DP |
710003047 |
Terminal |
| MC2_1 |
710002315 |
Terminal |
| MC2_1 |
710004047 |
Female Housing |
| MC2_2 |
710002315 |
Terminal |
| MC2_2 |
710004048 |
Female Housing |
| OP_PRES |
278002378 |
Male Housing |
| OP_PRES |
409207600 |
Male Lock, 3 Circuits |
| OP_PRES |
710001348 |
Male Terminal |
| OP_PRES |
710005273 |
Clip |
| PF_T |
278001065 |
Wire Seal |
| PF_T |
278002578 |
Female Terminal |
| PF_T |
710000888 |
Housing, 6 Circuits |
| PF_T |
710000889 |
Lock |
| PF_T |
710000897 |
Cover |
| PF_T |
710000992 |
Clip |
| PF_T_F1 |
710000742 |
Little Fuse, 5 Amperes |
| PF_T_F2 |
710000742 |
Little Fuse, 5 Amperes |
| PF_T_F3 |
710000742 |
Little Fuse, 5 Amperes |
| RLY_TRAILER |
409009500 |
FEMALE TERMINAL - Call your local BRP dealership |
| RLY_TRAILER |
409209900 |
Female Housing, 5 Circuits |
| SKIM |
278002299 |
Female Terminal Housing 6 Circuits |
| SKIM |
710001119 |
Female Terminal |
| TRAIL_FLASH |
710002000 |
Housing |
| TRAIL_FLASH |
710003047 |
Terminal |
| TRL_F_2P |
278000220 |
Male Connector, 2 Circuits |
| TRL_F_2P |
278000223 |
Female Terminal |
| TRL_F_2P |
278001065 |
Wire Seal |
| TRL_F_6P |
278000221 |
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| TRL_F_6P |
278001065 |
Wire Seal |
| 321 |
710006158 |

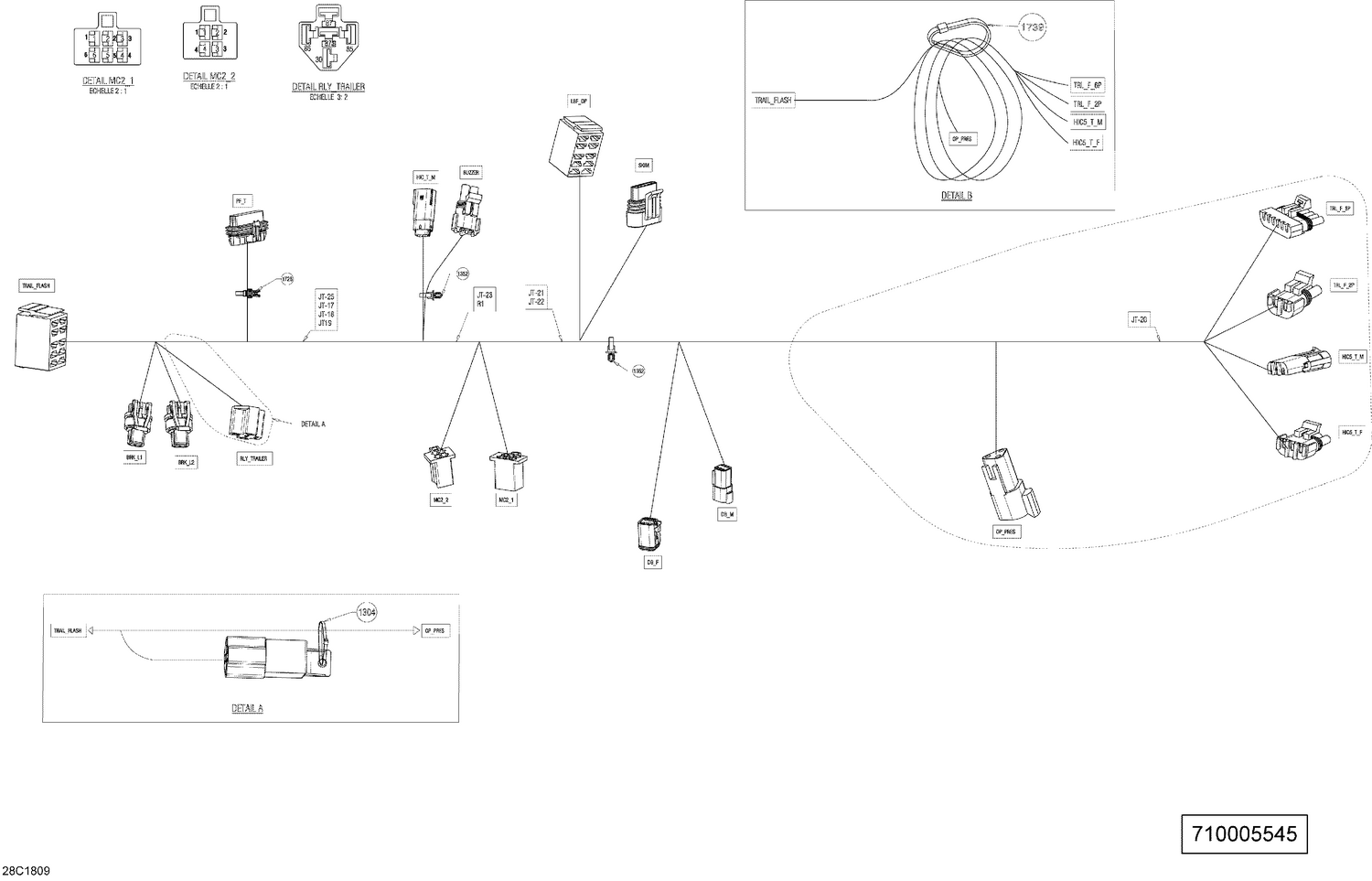

Wiring Harness This part replaces 710005545. |
