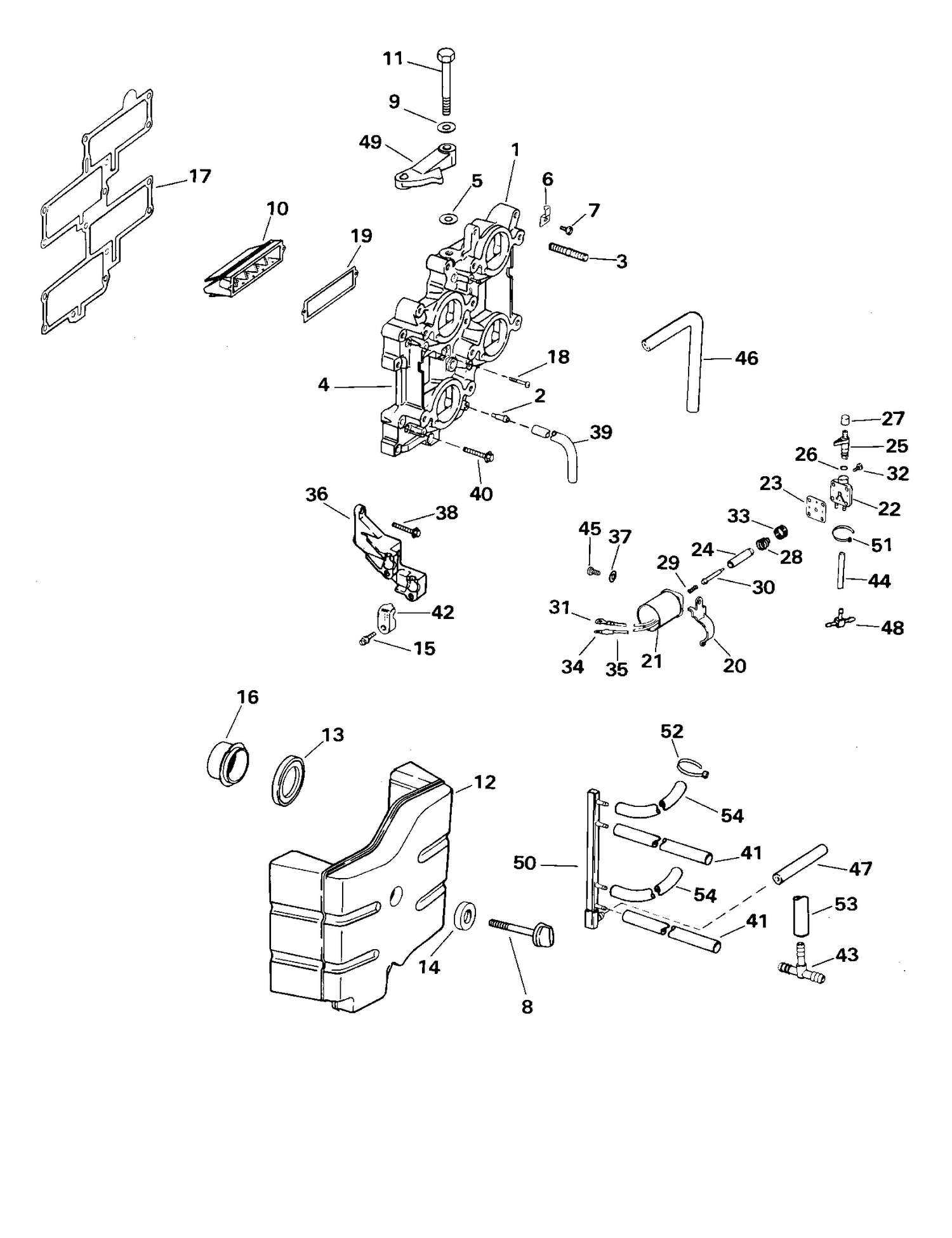

INTAKE MANIFOLD — Parts Catalog

Ref	Part Number	Description
1	0437340	INTAKE MANIFOLD ASSY.
6	0343985	POINTER, Timing
7	0310379	SCREW
8	0439922	FASTENER, Air silencer
9	0127386	RONDELLE This part replaces 0341381.
10	0397336	LEAF PLATE ASSY.
11	0347338	SCREW, Cam to C/C
12	0436997	COVER ASSY., Air silencer
17	0328622	GASKET, Manifold to crankcase
18	0332265	SCREW, Cover to base, long
19	0332266	GASKET, Leaf plate
20	0340381	BRACKET, Primer solenoid
21	5007355	Kit Ay This part replaces 0437231.
36	5007027	Kit Ay This part replaces 0341898.
39	0344783	HOSE, Air silencer drain
40	0307471	SCREW
41	0339747	HOSE, Fuel manifold to #2, #4, #6, #8 carbur etors
42	0329271	CLAMP, Trunnion cable
43	0329603	TEE, Fuel hose
47	0339768	HOSE, Manifold to tee
48	0325569	T, amorçage
49	0333094	THROTTLE CAM
50	0435898	FUEL MANIFOLD
52	0320107	ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
53	0339266	HOSE, Lower manifold to carb #7
