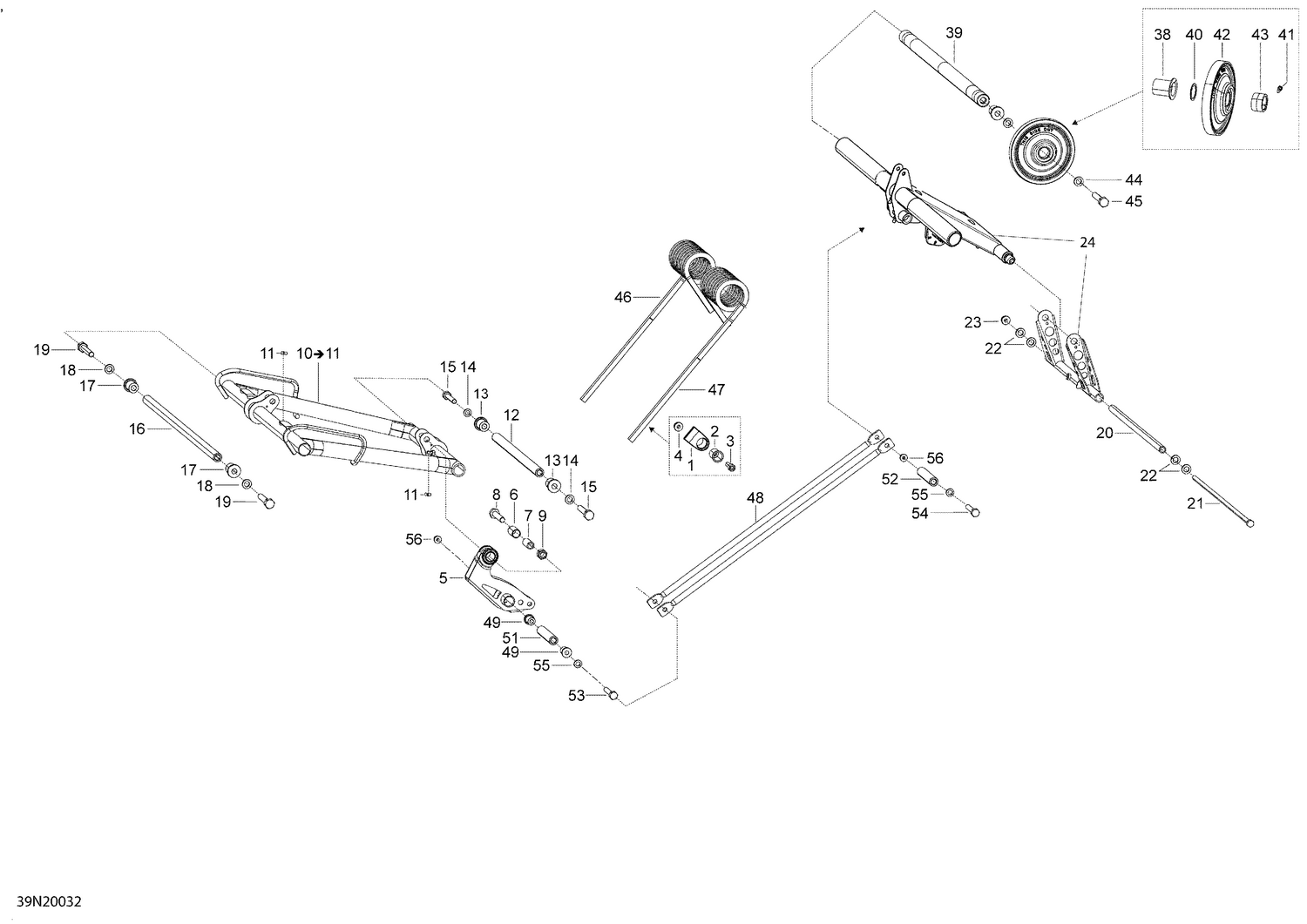

08- Suspension, Rear - Upper Section
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 2 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 3 | 205082544 | Socket Head Screw M8 X 25 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503192211 | Rocker |
| 6 | 503193037 | Bushing |
| 7 | 503189282 | Bushing |
| 8 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 9 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 11 | 408200700 | Grease Fitting |
| 12 | 503191390 | Lower Shaft |
| 13 | 503189324 | Bushing |
| 14 | 503192496 | Washer |
| 15 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 16 | 503191391 | Upper Shaft |
| 17 | 503189324 | Bushing |
| 18 | 503189564 | Washer |
| 19 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 20 | 503191396 | Axle Pivot |
| 21 | 503195156 | Bolt 369MM This part replaces 503191397. |
| 22 | 503189157 | Washer |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 503195402 | Rear Arm Ass'y |
| 38 | 503191451 | Cushion |
| 39 | 503191405 | Upper Shaft |
| 40 | 503190328 | Washer |
| 41 | 206260844 | Socket Set Screw M6 X 8 |
| 42 | 503190803 | Wheel 165 |
| 43 | 503194366 | Retaining Ring |
| 44 | 503192491 | Washer |
| 45 | 250000484 | Socket Screw M12 X 35 |
| 46 | 503192377 | Black RH Square Spring |
| 47 | 503192378 | Black LH Square Spring |
| 48 | 503191765 | Link Rod |
| 49 | 503191555 | Swivel Bushing |
| 51 | 503190643 | Axle Bar (Long) |
| 52 | 503190643 | Axle Bar (Long) |
| 53 | 207089044 | Hex. Screw M8 X 90 |
| 54 | 207089044 | Hex. Screw M8 X 90 |
| 55 | 503189157 | Washer |
