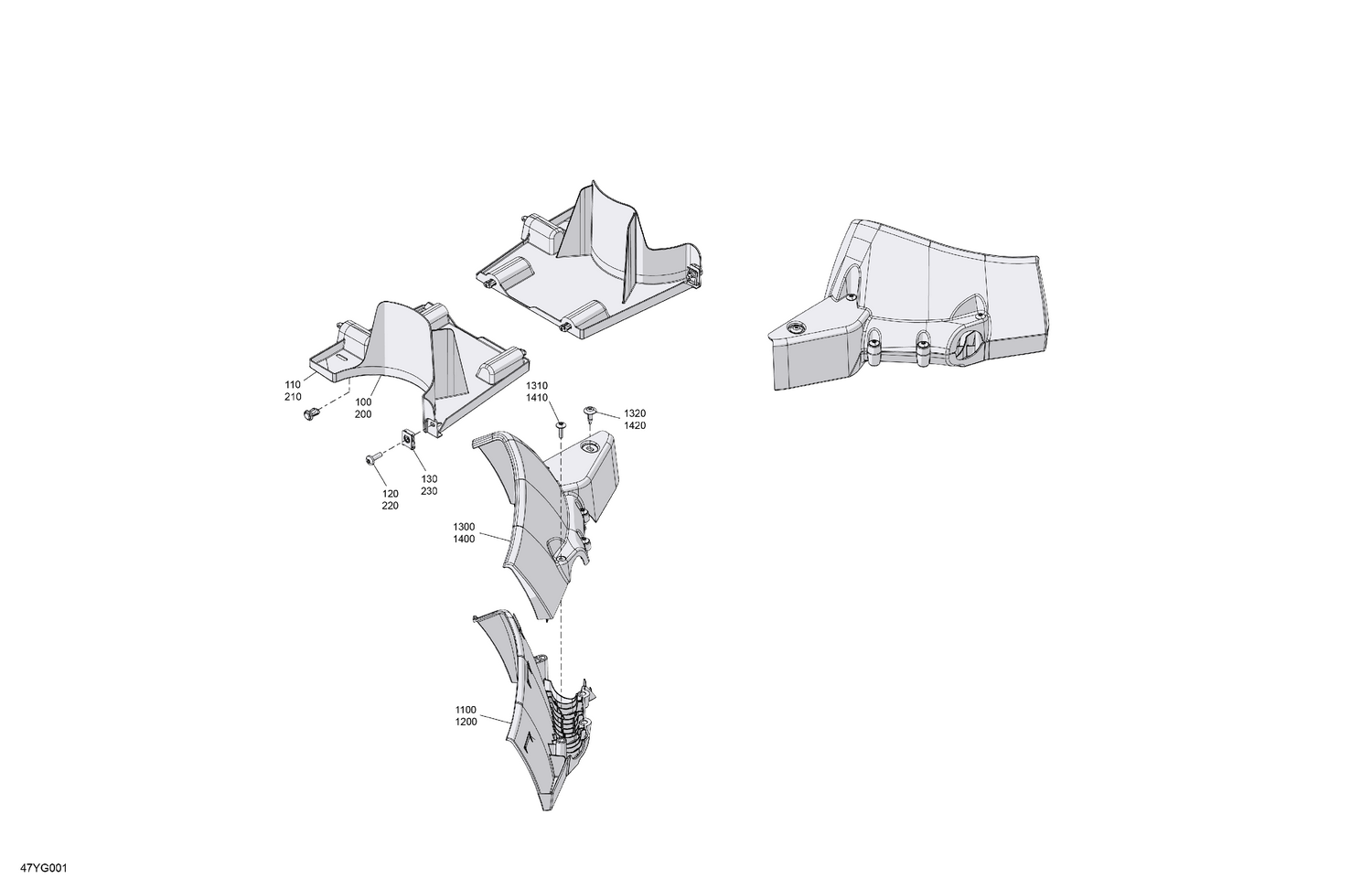

07- Body - Skid Plate
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705007785 | LH Front Skid Plate |
| 110 | 293150230 | Tuflok Plastic Rivet |
| 120 | 250000705 | Torx Truss Screw M6 X 20 |
| 130 | 250100208 | Panel Nut M6 X 1.0 |
| 200 | 705007786 | RH Front Skid Plate |
| 210 | 293150230 | Tuflok Plastic Rivet |
| 220 | 250000705 | Torx Truss Screw M6 X 20 |
| 230 | 250100208 | Panel Nut M6 X 1.0 |
| 1100 | 705007794 | LH Deflector |
| 1200 | 705007795 | RH Deflector |
| 1300 | 705009027 | LH Shell |
| 1310 | 250000586 | Torx Truss M5 X 20 |
| 1320 | 414745900 | Tuflock Phillips Plastic Screw |
| 1400 | 705009029 | RH Shell |
| 1410 | 250000586 | Torx Truss M5 X 20 |
