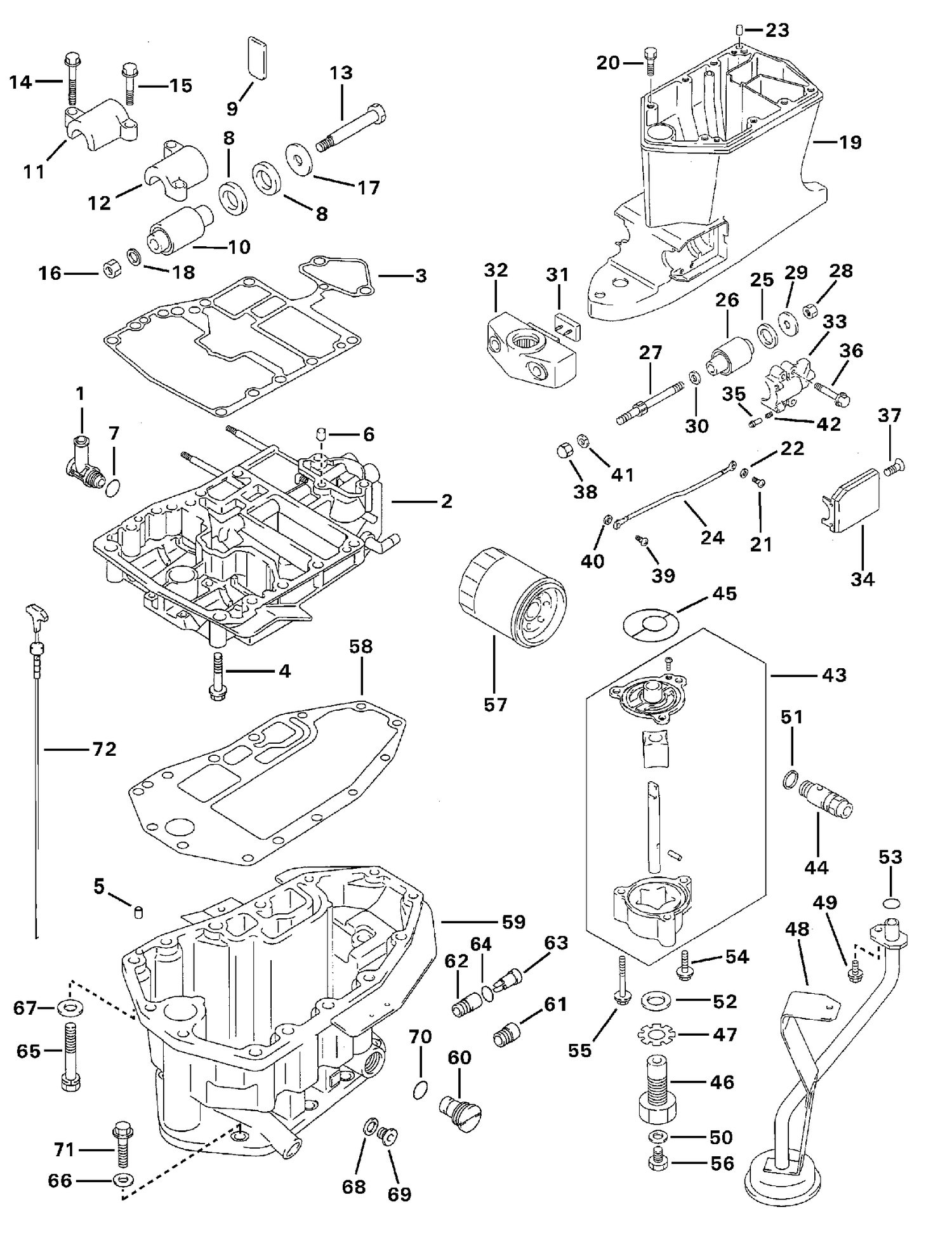

| Ref | Part Number | Description |
|---|
| 1 |
5032910 |
PIPE, Water return hose This part replaces 5030732. |
| 2 |
5031162 |
HOLDER, Engine |
| 4 |
5030401 |
BOLT |
| 6 |
5031013 |
DOWEL PIN |
| 7 |
5030539 |
O RING |
| 8 |
5030886 |
DAMPER, Mount |
| 9 |
5030887 |
MOUNT, Upper thrust |
| 10 |
5035806 |
MOUNT, Upper This part replaces 5030888. |
| 11 |
5032228 |
COVER, Upper mount, stbd |
| 12 |
5032233 |
COVER, Upper mount, port |
| 13 |
5031163 |
BOLT (12X117mm) |
| 14 |
5035665 |
BOLT (8X40) This part replaces 5030393. |
| 15 |
5030394 |
BOLT (8X30mm) |
| 16 |
5031221 |
NUT |
| 17 |
5030437 |
WASHER |
| 19 |
5030884 |
EXHAUST HOUSING |
| 20 |
*5035792 |
BOLT, (10X45mm) This part replaces *5030399. |
| 21 |
5030407 |
SCREW (5X8) |
| 22 |
5030460 |
WASHER (6.3X12.5X1.0mm) |
| 23 |
5030511 |
PIN |
| 24 |
5030821 |
BONDING LEAD, Exh. hsg. to bracket |
| 25 |
5030885 |
DAMPER, REVERSE STOP LWR |
| 26 |
5030894 |
MOUNT, Lower |
| 27 |
5030895 |
BOLT, Lower mount |
| 28 |
5030419 |
NUT |
| 29 |
5030437 |
WASHER |
| 31 |
5030893 |
MOUNT, Lower thrust |
| 32 |
5030897 |
BRACKET, Lower mount |
| 33 |
5030899 |
COVER, Lower mount |
| 34 |
5030901 |
CAP, Lower mount cover |
| 35 |
5030902 |
PIN |
| 36 |
5030397 |
BOLT (8X40mm) |
| 37 |
5030412 |
SCREW (6X16mm) |
| 38 |
5030423 |
NUT, Bolt, lower mount |
| 39 |
5030409 |
SCREW |
| 40 |
5030460 |
WASHER (6.3X12.5X1.0mm) |
| 42 |
5030594 |
SPRING |
| 43 |
5030711 |
OIL PUMP Assy |
| 44 |
5030712 |
VALVE Assy, OIL RELIEF |
| 46 |
5030714 |
STOP, Oil pump |
| 47 |
5030715 |
WASHER, Oil pump stop |
| 48 |
5030717 |
STRAINER, Oil |
| 49 |
5030392 |
BOLT (6X16) |
| 51 |
5030469 |
GASKET |
| 53 |
5030537 |
O RING |
| 55 |
5030986 |
BOLT |
| 56 |
5030992 |
BOLT |
| 57 |
0434839 |
OIL FILTER |
| 59 |
5030636 |
OIL PAN |
| 60 |
5032682 |
PLUG, Water This part replaces 5030748. |
| 62 |
5030929 |
TUBE, WATER INDICATOR |
| 63 |
5030930 |
COVER This part replaces 5031165. |
| 65 |
5030384 |
BOLT (10X100mm) |
| 67 |
5030057 |
WASHER |
| 68 |
5030465 |
GASKET |
| 69 |
5030525 |
PLUG |
| 70 |
5030536 |
O RING |
| 71 |
5030383 |
BOLT, Friction block |
