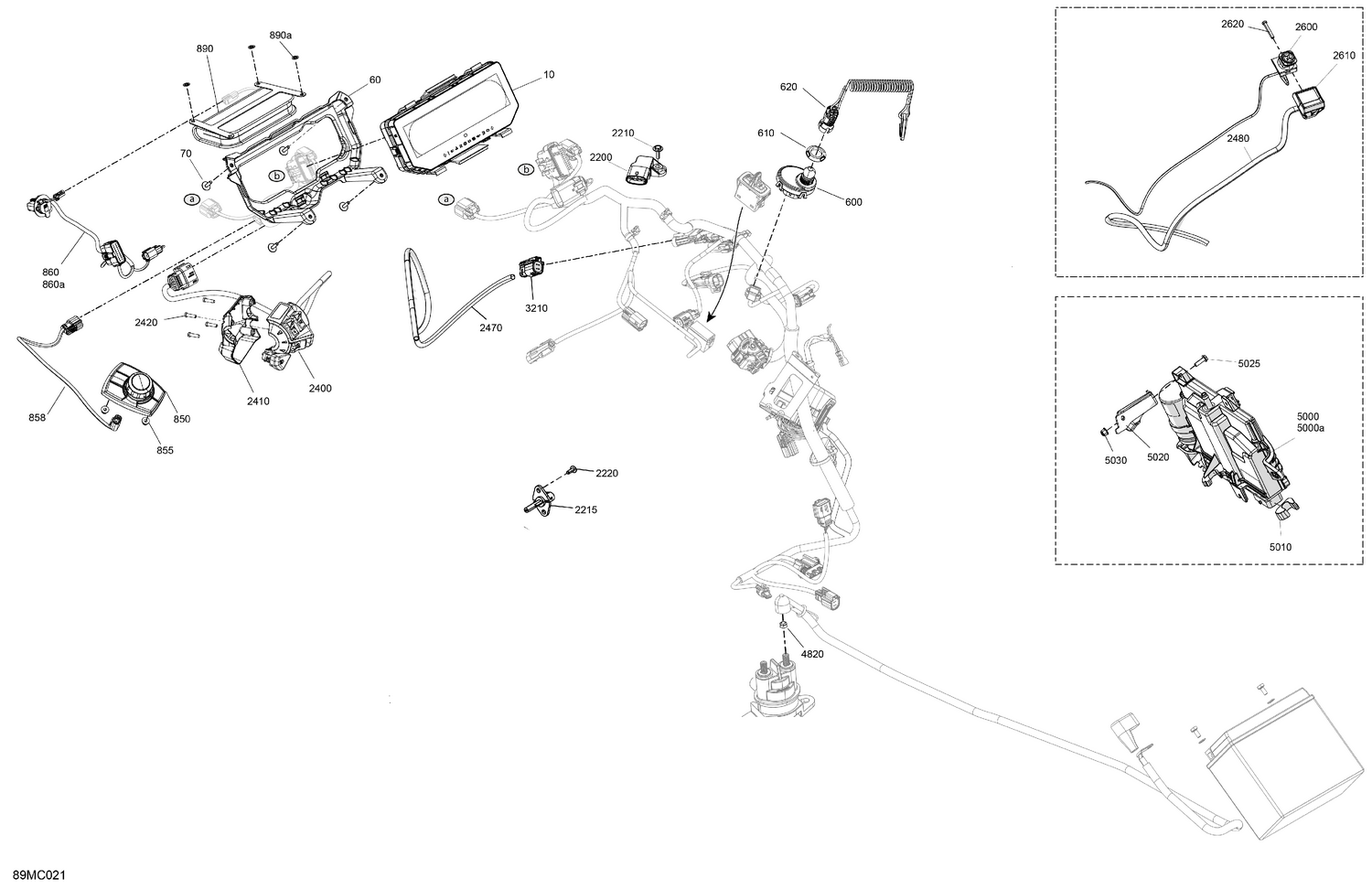

08- Electric - Upper Section
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 850 | 515178325 | Switch |
| 855 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 858 | 515178958 | Adaptor Wiring Harness |
| 860a | 710006405 | USB Connector |
| 890a | 732610072 | Push Nut |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2215 | 515176366 | Air Temperature Sensor |
| 2220 | 250001131 | Torx Truss PT K40 x 12 |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 4820 | 232561434 | Elastic Stop Nut M6 |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178159 | Module Support |
| 5025 | 207551634 | Hex. Flange Screw, Scotch Grip |
