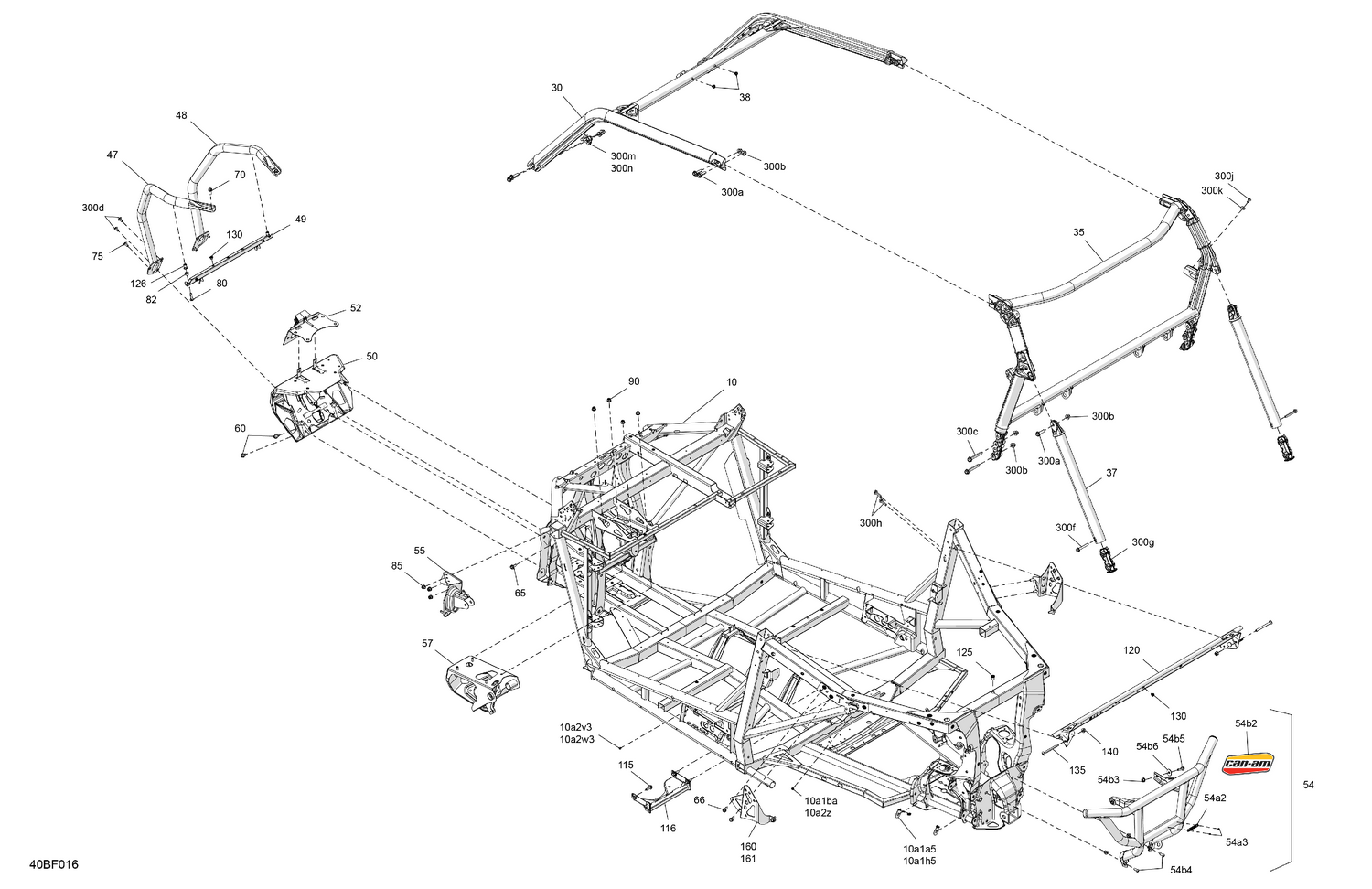

| Ref | Part Number | Description |
|---|
| 10 |
715009394 |
Chassis Kit |
| 10a1a5 |
705209479 |
Shim |
| 10a1ba |
293150293 |
Pop Rivet 3/16 X ,425 |
| 10a1h5 |
705209479 |
Shim |
| 10a2v3 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 10a2w3 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 10a2z |
293150293 |
Pop Rivet 3/16 X ,425 |
| 30 |
715010128 |
Legion Red, Front Cage Kit |
| 35 |
715011065 |
Legion Red, Rear Cage Kit |
| 37 |
705211532 |
Legion Red, Rear Cage Extension |
| 38 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 47 |
705211533 |
Legion Red, LH Front Bumper |
| 48 |
705211534 |
Legion Red, RH Front Bumper |
| 49 |
705206313 |
Cross Member |
| 50 |
705209043 |
Deep Black, Front Bumper |
| 52 |
705212946 |
Front Anchorage Ass'y |
| 54a2 |
704902307 |
EMBLEM CAN-AM - Call your local BRP dealership |
| 54a3 |
293150189 |
Pop Rivet 1/8", Black |
| 54b2 |
704904566 |
Decal "Can-Am" |
| 54b3 |
229000122 |
Hex. Elastic Flange Nut M8 |
| 54b4 |
229000057 |
Torx Truss M/S M8 X 20 |
| 54b5 |
229000147 |
Shoulder Screw HEX. M8 X 25 |
| 54b6 |
229000148 |
Flat Washer M8 |
| 55 |
705206217 |
Brake Support |
| 57 |
705206294 |
DPS Support |
| 60 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 65 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 66 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 70 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 75 |
250000746 |
Torx Truss Screw M8 X 16 |
| 80 |
250000745 |
Hex Torx Truss M8 X30 |
| 82 |
705207229 |
Bushing |
| 85 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 90 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 115 |
705211563 |
Bearing Support |
| 116 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 120 |
705209434 |
Central Tube |
| 125 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 126 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 135 |
250000806 |
Torx Truss M8 X 90 |
| 140 |
233081416 |
Hex. Flange Nut M8 |
| 160 |
705211569 |
LH Rear Anchorage Support |
| 161 |
705211571 |
RH Rear Anchorage Support |
| 300a |
250000855 |
Hex. Flange Screw M10 X 35 |
| 300b |
233201466 |
Flange Elastic Nut M10 |
| 300c |
207607056 |
Hex. Flange Screw M10 X 70 |
| 300d |
250000746 |
Torx Truss Screw M8 X 16 |
| 300f |
207686044 |
Hex. Flange Screw M8 x 60 |
| 300g |
705210648 |
Sleeve |
| 300h |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 300j |
250000717 |
Torx Head Screw M6 X 16 |
| 300k |
234062670 |
Stainless Steel Flat Washer |
| 300m |
705209913 |
LH Front Anchorage |
