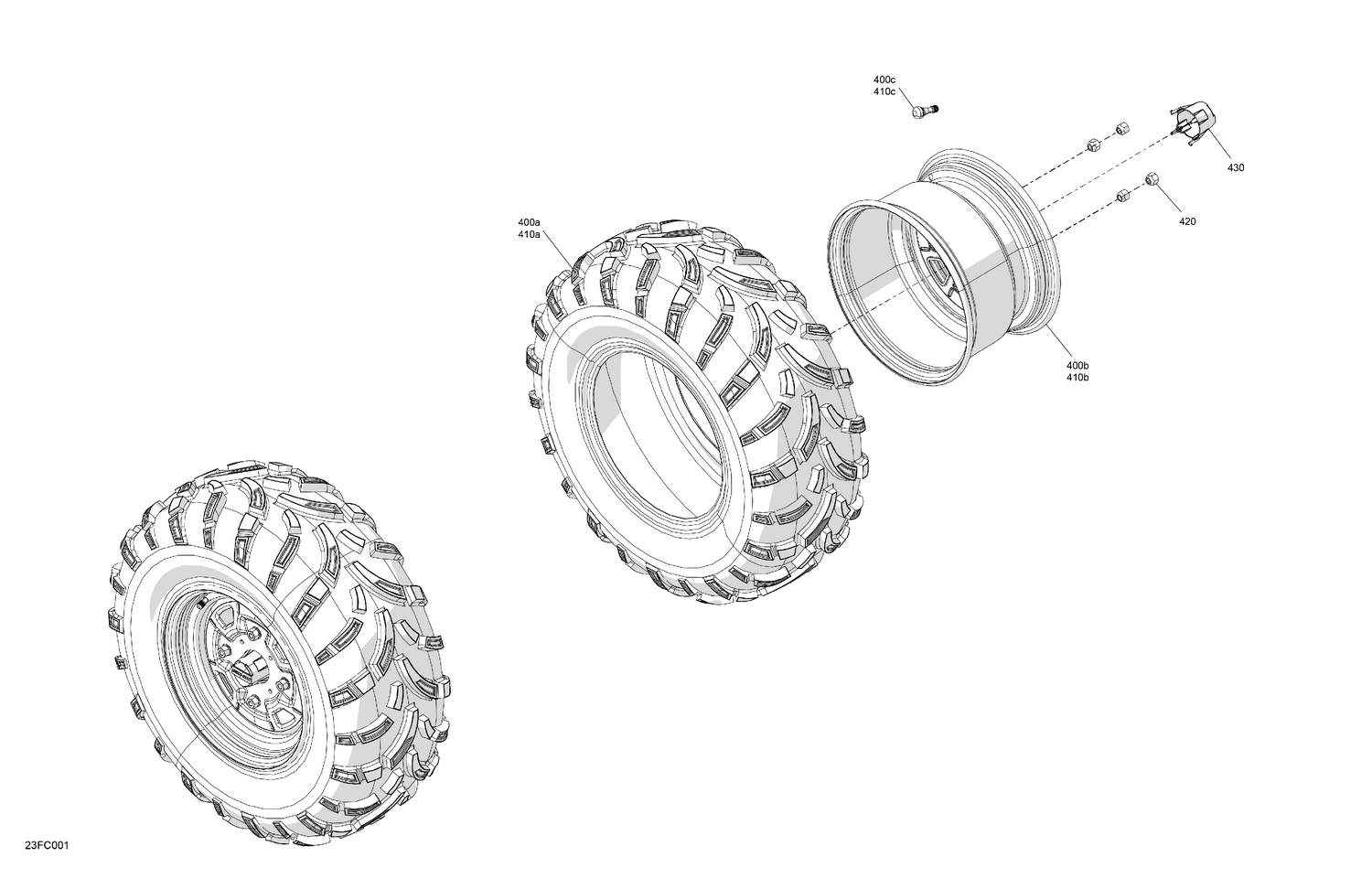

04- Drive - Rear Wheels

04- Drive - Rear Wheels

Parts (5)

RefPart NumberDescription
400a 705503076 Rear Tire 25X10R12
400c 705402595 Tire Valve Ass'y
410a 705503076 Rear Tire 25X10R12
410c 705402595 Tire Valve Ass'y
420 250100042 Steel Wheel Nut
