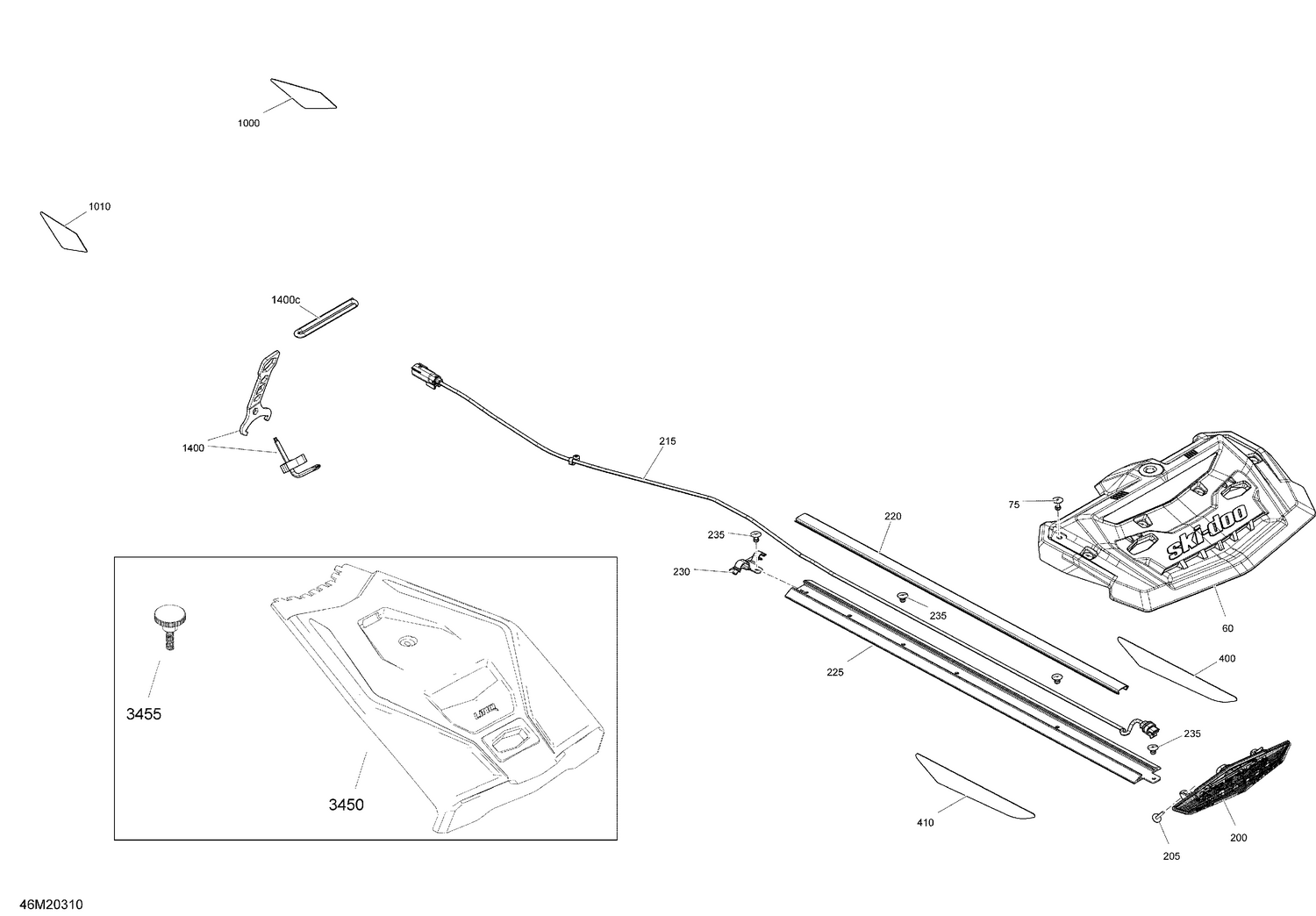

10- Utilities
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 520002051 | Snow Guard |
| 75 | 293150100 | Pop Rivet 3/16" |
| 200 | 520001143 | Rear Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 215 | 515178267 | Rear Light Harness |
| 220 | 520002921 | Extruded Trim This part replaces 520001719. |
| 225 | 520002930 | Grommet This part replaces 520001703. |
| 230 | 520001722 | Cap |
| 235 | 293150104 | Pop Rivet 3/16" |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
| 1400c | 529017500 | Rope Starter |
| 3450 | 511001133 | Linq Plate |
