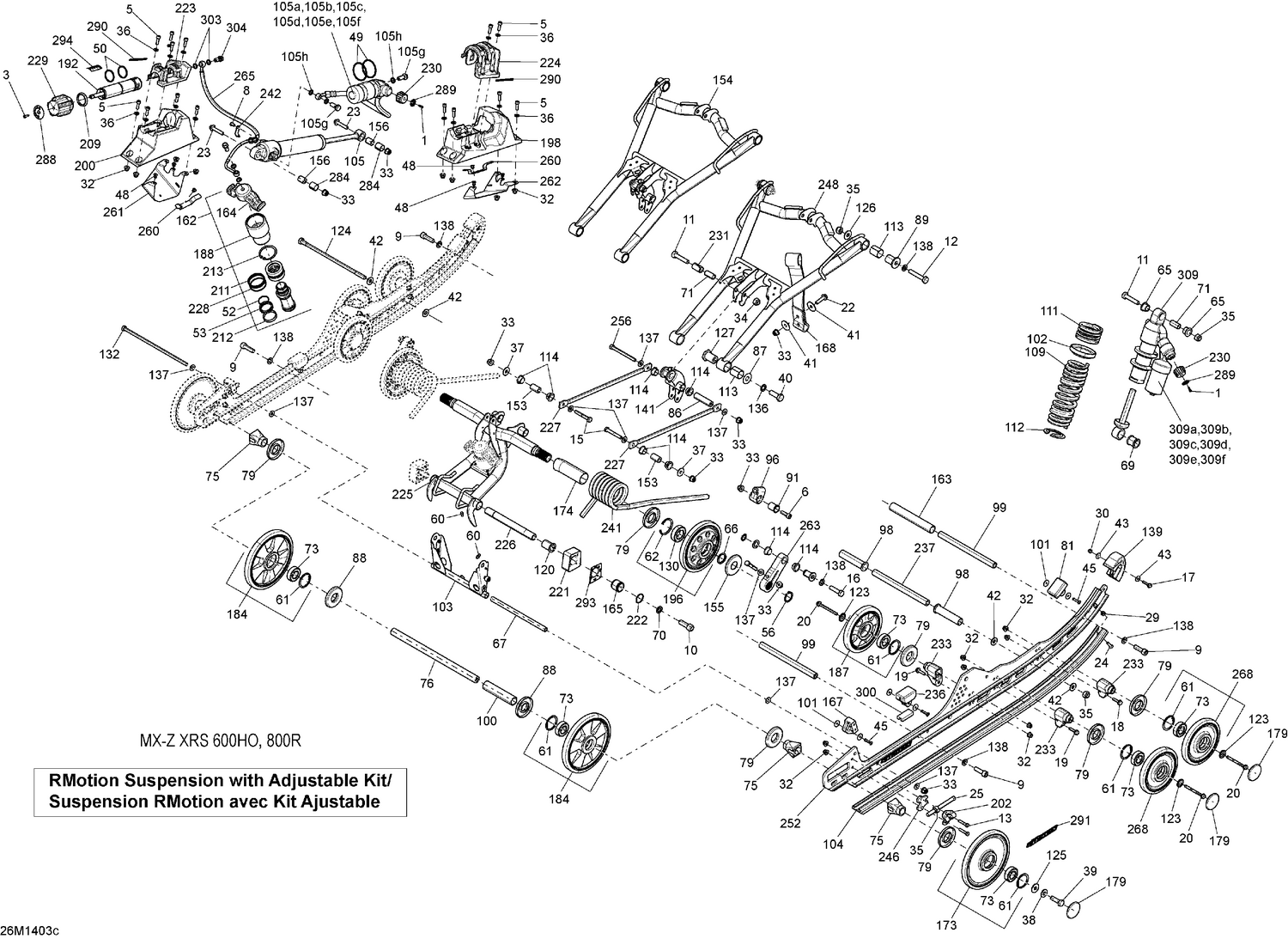

08- Rear Suspension RMotion w ADJ KIT_26M1403c
Parts (159)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 3 | 205041254 | Socket Head Screw M4 X 12 This part replaces 205041284. |
| 5 | 205062060 | Socket Head Screw M6 X 20 |
| 6 | 205082554 | Socket Screw M8 X 25 |
| 8 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 9 | 205503554 | Socket Head Screw M10 X 35 |
| 10 | 205523554 | Socket Head Screw M12 X 35 |
| 11 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 12 | 207006056 | Hex. Cap Screw M10 X 60 |
| 13 | 207063054 | Hex. Cap Screw M6 X 30 |
| 15 | 207085544 | Hex. Screw M8 X 55 |
| 16 | 207204056 | Cap Screw Hex. M10 X 40 |
| 17 | 207652544 | Hex. Flange Screw M5 X 25 |
| 19 | 207662556 | Hex. Flange Screw M6 X 25 |
| 20 | 207667056 | Hex. Flange Screw M6 X 70 |
| 22 | 207683044 | Hex. Flange Screw M8 X 30 |
| 23 | 207684044 | Hex. Flange Screw M8 X 40 |
| 24 | 208562531 | Phillips Screw M6 X 25 |
| 25 | 230100054 | Hex Screw M10 x 100 |
| 29 | 232561414 | Elastic Stop Nut M6 |
| 30 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 32 | 233261466 | Hex. Flange Elastic Nut M6 |
| 33 | 233281466 | Elastic Flange Nut M8 |
| 34 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 35 | 233601466 | Elastic Locking Nut M10 |
| 36 | 234061600 | Stainless Flat Washer M6 |
| 37 | 234082410 | Flat Washer 8 mm |
| 38 | 250200141 | Conical Spring Washer M10 |
| 39 | 250000592 | Hex Cap Screw Nylon M10 x 35 |
| 40 | 250000537 | Hex. Cap Screw M12 X 35 |
| 41 | 250200128 | Flat Washer 8 mm |
| 42 | 250200138 | Washer |
| 43 | 250200140 | Washer |
| 44 | 250400014 | Spring Pin |
| 45 | 293150013 | Pop Rivet 3/16" |
| 48 | 293150144 | Stavex Rivet |
| 49 | 293250085 | O-Ring |
| 50 | 293250269 | O-Ring |
| 51 | 293300036 | O-Ring |
| 52 | 293300039 | O-Ring |
| 53 | 293300068 | O-Ring |
| 56 | 293370080 | Retaining Ring |
| 60 | 408200700 | Grease Fitting |
| 61 | 415129371 | Retaining Ring |
| 62 | 415129780 | Retaining Ring |
| 65 | 503189117 | Urethane Bushing |
| 66 | 503189146 | Axle Spring |
| 67 | 503189156 | Pivot Arm Axle |
| 69 | 503189271 | Bushing |
| 70 | 503189276 | Washer |
| 71 | 503189282 | Bushing |
| 73 | 503190396 | Ball Bearing |
| 75 | 503190428 | Rear Wheel Spacer |
| 76 | 503190429 | Rear Axle |
| 79 | 503190434 | Labyrinth Seal |
| 81 | 503190576 | Rubber Stopper |
| 86 | 503190643 | Axle Bar (Long) |
| 87 | 503190656 | Washer |
| 88 | 503190682 | Labyrinth Seal |
| 89 | 503190698 | Axle |
| 91 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 96 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 98 | 503191259 | Center Bushing |
| 99 | 503191260 | Axle Strap |
| 100 | 503191263 | Rear Spacer |
| 101 | 503191273 | Washer |
| 102 | 503192743 | Spring Spacer |
| 103 | 503192823 | Pivot Arm Ass'y |
| 104 | 503191301 | Black Slider Shoe 120" |
| 106 | 503191316 | Black, Wheel Ass'y 141 mm |
| 109 | 503193065 | Black, Spring (162mm) Long |
| 111 | 503193479 | Black, Spring (52mm) Short |
| 112 | 503194270 | Spring Stopper This part replaces 503192608. |
| 113 | 503191554 | Bushing |
| 114 | 503191555 | Swivel Bushing |
| 115 | 503194202 | Black - Wheel Ass'y 180 mm This part replaces 503191559. |
| 120 | 503191640 | Cushion |
| 123 | 503191820 | Wheel Cup M6 |
| 124 | 503191896 | BOLT M10 X 251MM - Call your local BRP dealership |
| 125 | 503191910 | Washer |
| 126 | 503191926 | Washer |
| 127 | 503191966 | Lower Axle |
| 130 | 503193548 | Ball Bearing This part replaces 503191982. |
| 132 | 503192440 | Bolt M8 X 248mm |
| 136 | 503192491 | Washer |
| 137 | 503192494 | Washer |
| 138 | 503192496 | Washer |
| 139 | 503196873 | Rail Protector This part replaces 503192530. |
| 141 | 503192531 | Rocker |
| 153 | 503192555 | Axle Bar |
| 154 | 503194529 | Front Arm Ass'y This part replaces 503193264. |
| 155 | 503192592 | Labyrinth Ring |
| 156 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 162 | 503193777 | Hydraulic Adjuster Ass'y This part replaces 503193778. |
| 163 | 503196943 | Spacer This part replaces 503192678. |
| 164 | 503192633 | Spring Bracket |
| 165 | 503192749 | Guide Block |
| 167 | 503192750 | Rubber Stopper |
| 168 | 503192759 | Stopper Strap |
| 174 | 503192767 | Bushing |
| 179 | 503192771 | Black, Wheel Cap |
| 184 | 503194050 | Black, Wheel Ass'y 180 mm This part replaces 503192778. |
| 187 | 503192794 | Black, Wheel Ass'y 141 mm |
| 188 | 503192795 | Cylinder |
| 192 | 503193777 | Hydraulic Adjuster Ass'y |
| 196 | 503192808 | Black Wheel Ass'y 155 mm |
| 198 | 503192810 | RH Support |
| 200 | 503194686 | LH Support This part replaces 503192811. |
| 202 | 503192583 | Tensioner |
| 209 | 503192825 | WIPER SEAL - Call your local BRP dealership |
| 211 | 503192832 | O-Ring |
| 212 | 503192833 | Wear Ring |
| 213 | 503192834 | Retaining Ring |
| 221 | 503192918 | LH Cam Block |
| 221 | 503192919 | RH Cam Block |
| 222 | 503192921 | O-Ring |
| 223 | 503192956 | LH Half Housing |
| 224 | 503192957 | RH Half-Housing |
| 225 | 503193618 | Rear Arm Ass'y |
| 226 | 503192981 | Lower Shaft |
| 227 | 503193010 | ROD_LINK - Call your local BRP dealership |
| 228 | 503193014 | O-Ring |
| 229 | 503193025 | Adjustment Knob Ass'y |
| 230 | 503193033 | Shock Adjuster Knob |
| 231 | 503193037 | Bushing |
| 232 | 503193056 | Knob Adjuster Ass'y |
| 233 | 503193894 | Casted Support This part replaces 503193082. |
| 236 | 503195523 | Rubber Stopper Ass'y This part replaces 503193101. |
| 237 | 503193435 | Pivot Axle This part replaces 503193142. |
| 241 | 503193158 | Black, LH Spring Square |
| 241 | 503193159 | Black, RH Spring Square |
| 242 | 503193166 | Plate |
| 246 | 503193250 | Spacer |
| 248 | 503194529 | Front Arm Ass'y This part replaces 503193265. |
| 252 | 503193526 | RAIL_SUSPENSION 120 B-160 - Call your local BRP dealership |
| 256 | 503193372 | Screw M8 X 90 |
| 260 | 503196020 | Retaining Plate This part replaces 503193413. |
| 261 | 503193437 | LH HOSE PROTECTOR - Call your local BRP dealership |
| 262 | 503193438 | RH HOSE PROTECTOR - Call your local BRP dealership |
| 263 | 503195985 | Link Ass'y This part replaces 503193533. |
| 265 | 503193476 | Connector Hose |
| 273 | 503193490 | Master Cylinder Ass'y |
| 284 | 505072663 | Leg Cushion |
| 288 | 516004751 | STICKER KNOB ADJUSTER - Call your local BRP dealership |
| 289 | 516004752 | Shock Knob Adjustment Decal |
| 290 | 516006369 | Decal |
| 291 | 516004755 | Runner Decal |
| 293 | 516004900 | LH Block Sticker Decal |
| 293 | 516004901 | RH Block Sticker Decal |
| 294 | 516004917 | Adjustment Decal |
| 300 | 572084800 | Reinforcement Stopper |
| 303 | 705601628 | Copper Washer This part replaces 705600310. |
| 304 | 705600628 | Banjo Bolt |
| 309 | 503192783 | CENTER SHOCK - Call your local BRP dealership |
| 309a | 415093804 | O-Ring |
| 309b | 505070400 | O-Ring |
| 309c | 505070399 | Screw |
| 309d | 505070398 | Air Valve |
| 309e | 415093806 | Piston Ring |
