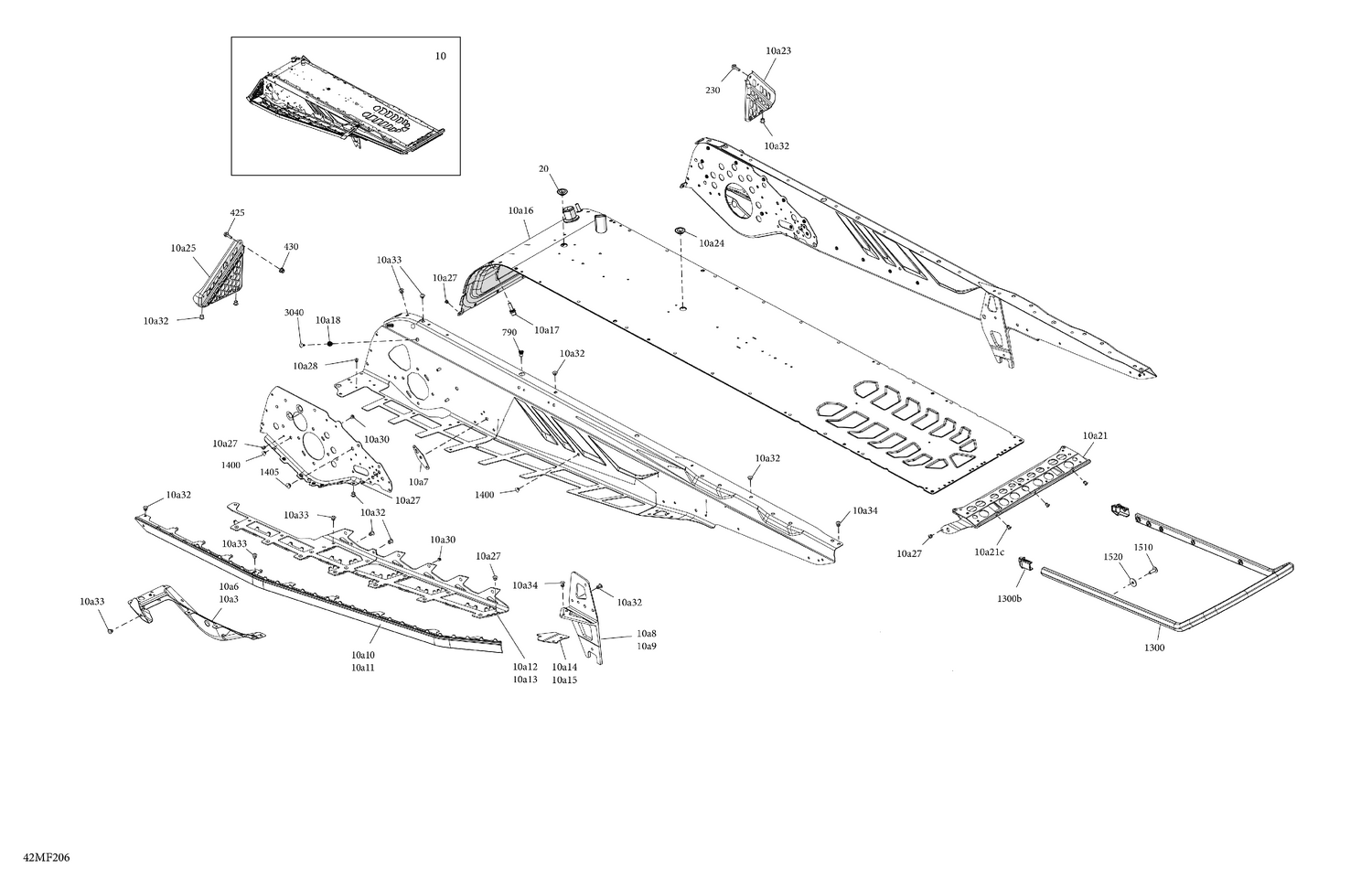

06- Frame - System - Rear Section
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 415130993 | Deep Black, Chassis Tunnel Moduel 146 |
| 10a10 | 518332841 | Formed Boarding Step Rg |
| 10a11 | 518332842 | Formed Boarding Step |
| 10a12 | 518335261 | RH Tunnel Liner |
| 10a13 | 518335262 | LH Tunnel Liner |
| 10a14 | 518333048 | LH Rear Footrest Reinforcement |
| 10a15 | 518333049 | RH Rear Footrest Reinforcement |
| 10a16 | 518335125 | Radiator Tunnel 137 |
| 10a17 | 250300652 | Protruding Stud M8 x 22 |
| 10a18 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 10a21c | 293150203 | Rivet Avibulb 3/16 |
| 10a23 | 518332462 | RH Footrest |
| 10a24 | 293730052 | Black, Plug |
| 10a25 | 518332463 | LH Footrest |
| 10a27 | 293150203 | Rivet Avibulb 3/16 |
| 10a28 | 293150237 | Avibulb Rivet 4.8 X 12.1 |
| 10a3 | 518332455 | RH Footrest Reinforcement |
| 10a30 | 293150245 | Henrob Rivet |
| 10a32 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10a33 | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10a34 | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10a6 | 518332456 | LH Footrest Reinforcement |
| 10a7 | 518335959 | Front Suspension Arm Reinforcement |
| 10a8 | 518336861 | LH Rear Suspension Support |
| 10a9 | 518336862 | RH Rear Suspension Support |
| 20 | 293730052 | Black, Plug |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 790 | 293450278 | Insert |
| 1300b | 293450275 | Insert |
| 1400 | 293730047 | Black, Dart 8 mm |
| 1405 | 293730060 | Black, Dart 10 mm |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 3040 | 293730079 | Dart |
