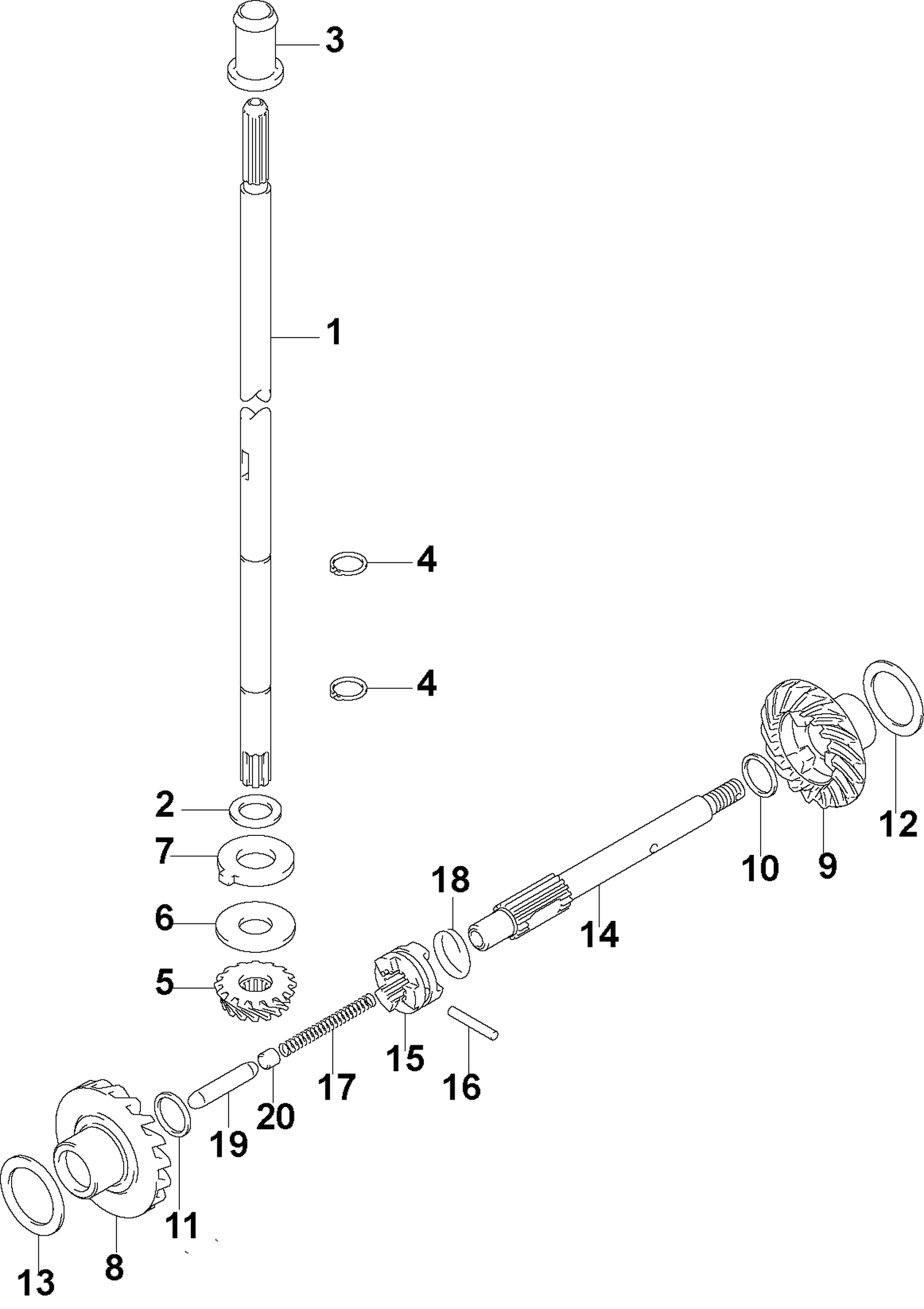

GEARS
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033429 | SHAFT, DRIVE (15 in. Models) |
| 1 | 5033430 | SHAFT, DRIVE (20 in. Models) |
| 2 | 5033478 | SHIM (10X16X1.5mm) |
| 4 | 5033340 | CIRCLIP |
| 5 | 5033432 | PINION |
| 7 | 5030073 | THRUST WASHER, Pinion |
| 8 | 5034203 | GEAR, FORWARD |
| 9 | 5030278 | GEAR, Reverse |
| 15 | 5030280 | SHIFTER, Clutch dog |
| 16 | 5030085 | PIN |
| 17 | 5030138 | SPRING |
| 18 | 5030141 | SPRING |
| 19 | 5033500 | ROD, PUSH |
