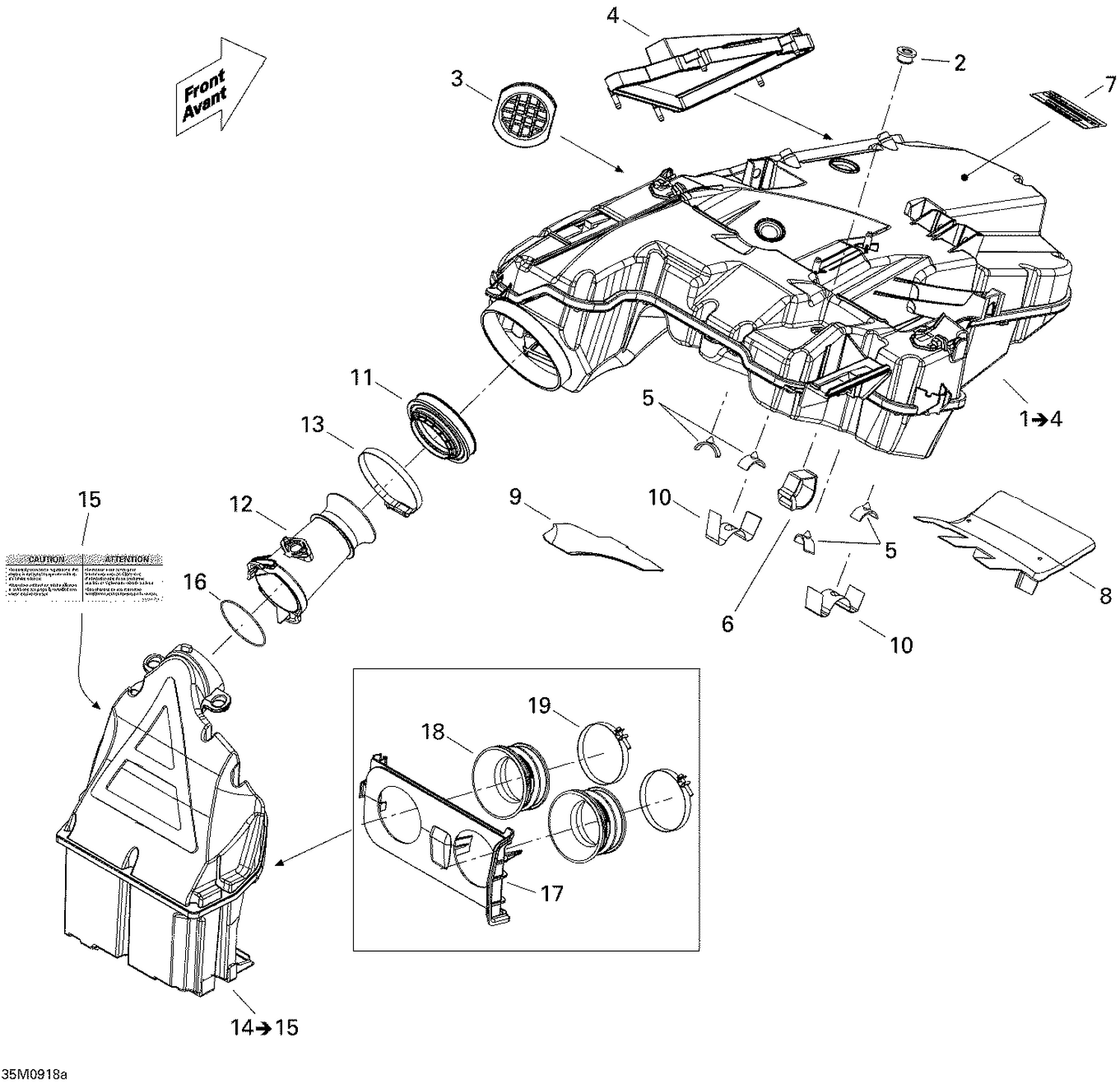

02- Air Intake System 600 HO
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000574 | Grommet |
| 3 | 508000590 | Cap |
| 4 | 508000546 | Air Filter |
| 5 | 508000537 | Stopper |
| 6 | 508000820 | Velcro Strip This part replaces 508000532. |
| 7 | 516002965 | WARNING DECAL, HOT PARTS - Call your local BRP dealership |
| 8 | 508000675 | Heat Shield This part replaces 508000604. |
| 9 | 508000622 | Reflective Sheet |
| 10 | 508000677 | Heat Shield This part replaces 508000618. |
| 11 | 508000548 | Boot |
| 12 | 508000662 | Flute This part replaces 508000542. |
| 13 | 514052983 | Norma Gear Clamp |
| 15 | 516003371 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 16 | 293300140 | O'RING - Call your local BRP dealership |
| 17 | 508000613 | Plate Adapter |
| 18 | 508000614 | Air Intake Adapter |
