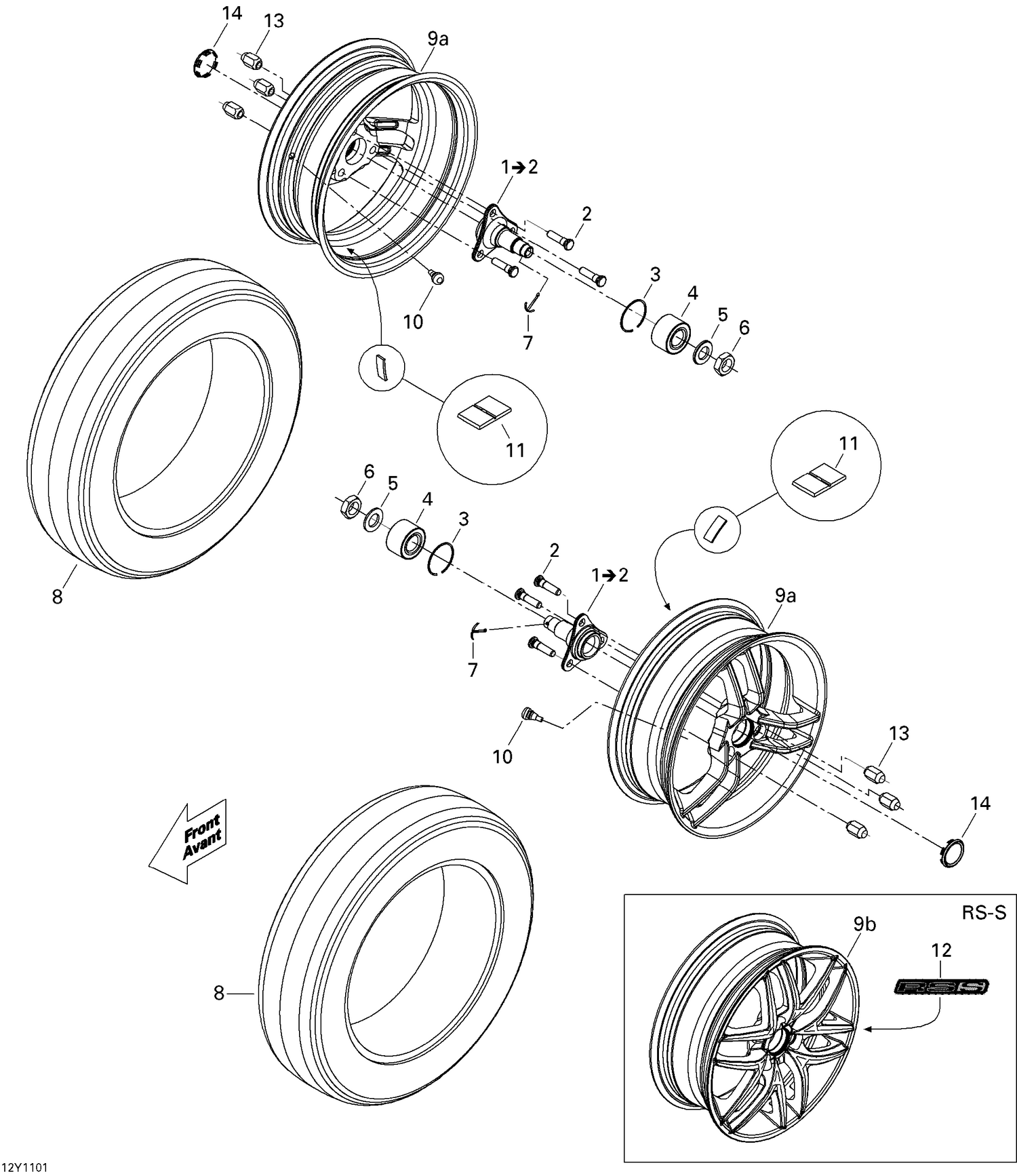

07- Drive System, Front
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 250300024 | WHEEL STUD M12 X 1.5 - Call your local BRP dealership |
| 3 | 293370019 | Circlip |
| 4 | 293350150 | Ball Bearing This part replaces 293350040. |
| 5 | 250200094 | Flat Washer |
| 6 | 250100103 | Hex. Jam Nut M24 |
| 7 | 250400047 | Cotter Pin |
| 10 | 705400193 | Rim Valve With Cap |
| 11 | 705502106 | Self Adhesive Weight, 5G 20mm This part replaces 705501430. |
| 13 | 250100154 | Chrome, Wheel Nut M12 X 1.5 This part replaces 250100057. |
