Parts Catalog

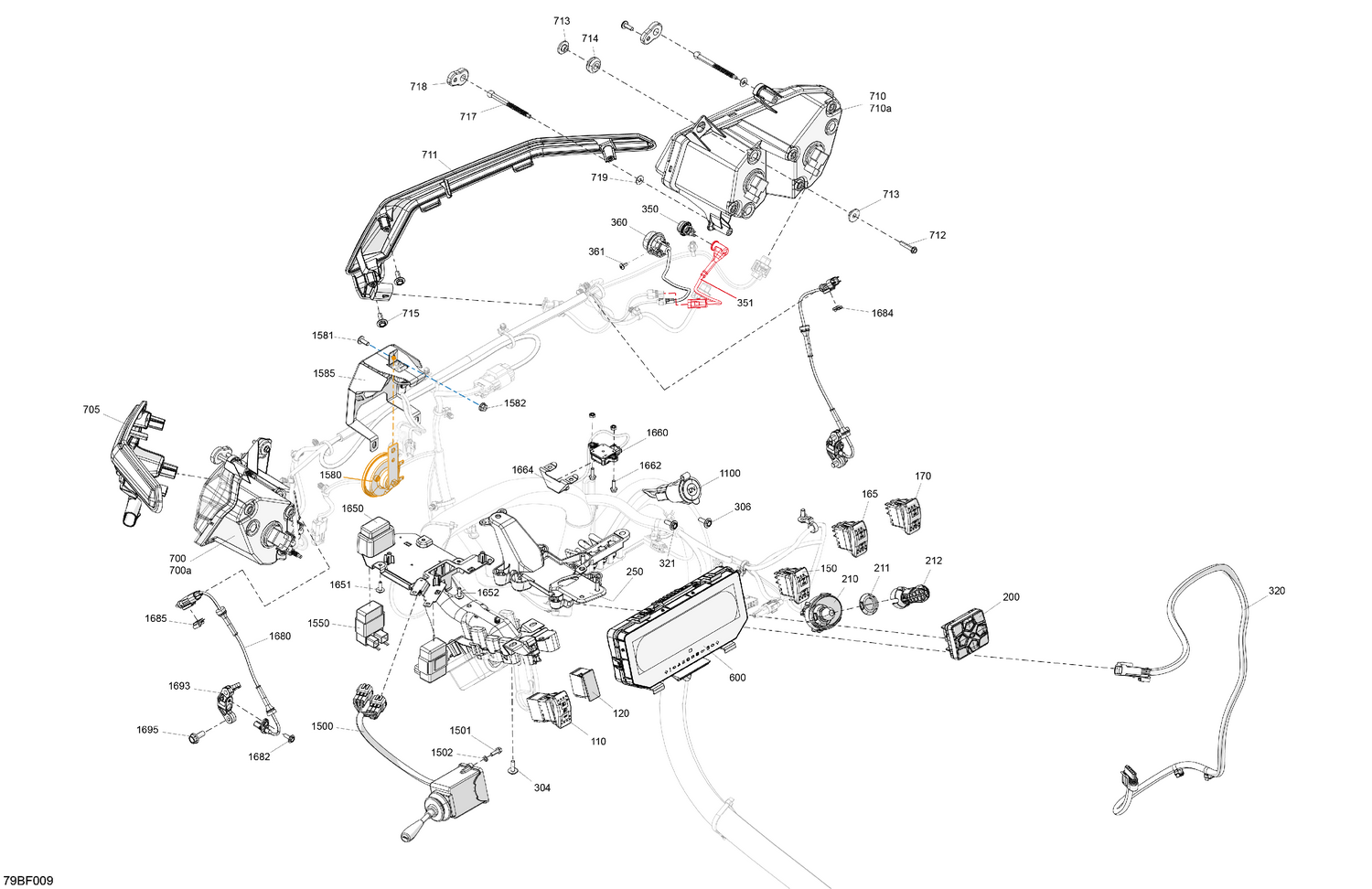

08- Electric - Front Section

Parts (49)

Ref	Part Number	Description
110	710006107	Hazard Lights Switch
120	710007173	Plug Carling
150	710005489	Switch 2X4
165	710005470	Differential Lock Switch
170	710006553	Switch HDC
200	710006650	Multifonction Switch
210	515179305	Terminal DESS One Wire
211	278004274	Specialized Nut
212	710004964	Grey Key RFID
250	710005672	Housing Support
304	250000959	Screw PT Type K-50 X 16
306	250000959	Screw PT Type K-50 X 16
320	710005929	Trottle Pedal Harness
321	250000959	Screw PT Type K-50 X 16
350	710001726	Day Light
351	710005676	Position Light Harness
360	710002964	Flasher
361	250000721	Torx Truss Screw M6 X 16
600	710008295	MID Multifunction Gauge
700a	715900141	Bulb 12V 55W
705	705011485	LH Fascia Trim
710a	715900141	Bulb 12V 55W
711	705011486	RH Fascia Trim
712	241152540	Hex. Flange Screw K50 X 2.24 X 25
713	710004749	Shoulder Bushing
714	293720130	Overmolded Grommet
715	250000959	Screw PT Type K-50 X 16
717	710005837	Ajustment Screw
718	293900157	Ball Socket
719	293300192	O-Ring
1500	710001721	Turn Signal
1501	210251650	Hex. Forming Screw M5 X 16
1502	234151401	Lock Washer 5 mm
1550	710003239	Flasher Unit
1580	710004791	Horn
1581	250000721	Torx Truss Screw M6 X 16
1582	233261494	Hex. Flange Elastic Nut M6
1585	710006055	Horn Bracket
1650	710006056	Support Connector
1651	250000959	Screw PT Type K-50 X 16
1652	250000959	Screw PT Type K-50 X 16
1660	710005658	Yaw Rate Sensor
1662	207562034	Hex. Flange Screw M6 X 20, Scotch Grip
1664	710006501	Yaw Sensor Support
1680	710006981	Speed Sensor
1682	250000959	Screw PT Type K-50 X 16
1684	409210100	Clip Bracket Connector (edge)
1685	710001038	Clip
1693	710008185	ABS Sensor Support
