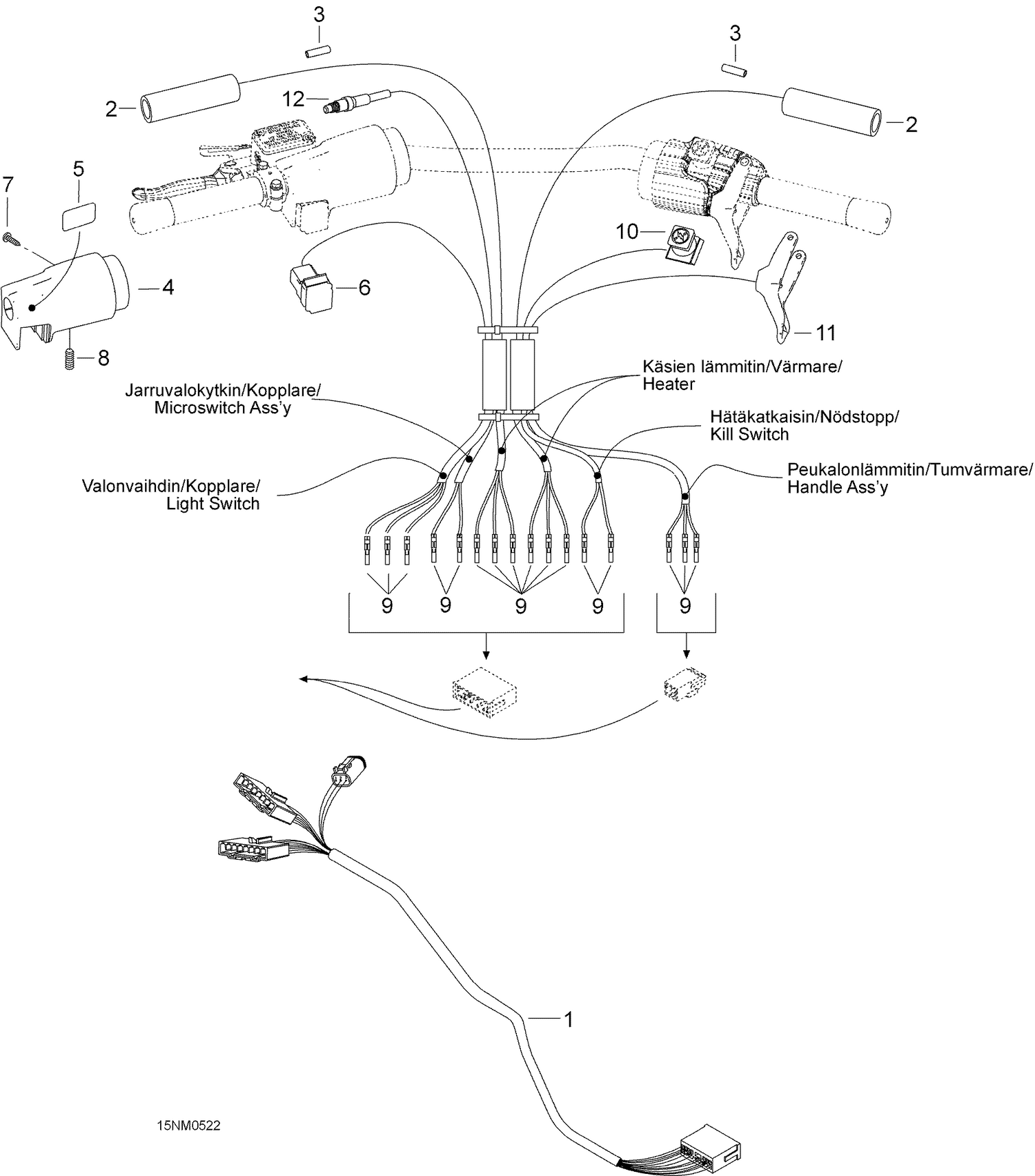

10- Steering Harness
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515175664 | Heater |
| 3 | 39023 | Plastic Tubing d=6, musta - Call your local BRP dealership |
| 4 | 515175696 | BRAKE HOUSING - Call your local BRP dealership |
| 5 | 415025500 | Decal |
| 6 | 515175390 | Switch |
| 7 | 250000022 | SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 8 | 414440800 | Socket Set Screw M8 X 10 |
| 9 | 605642628 | CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 10 | 515175410 | Switch kill |
