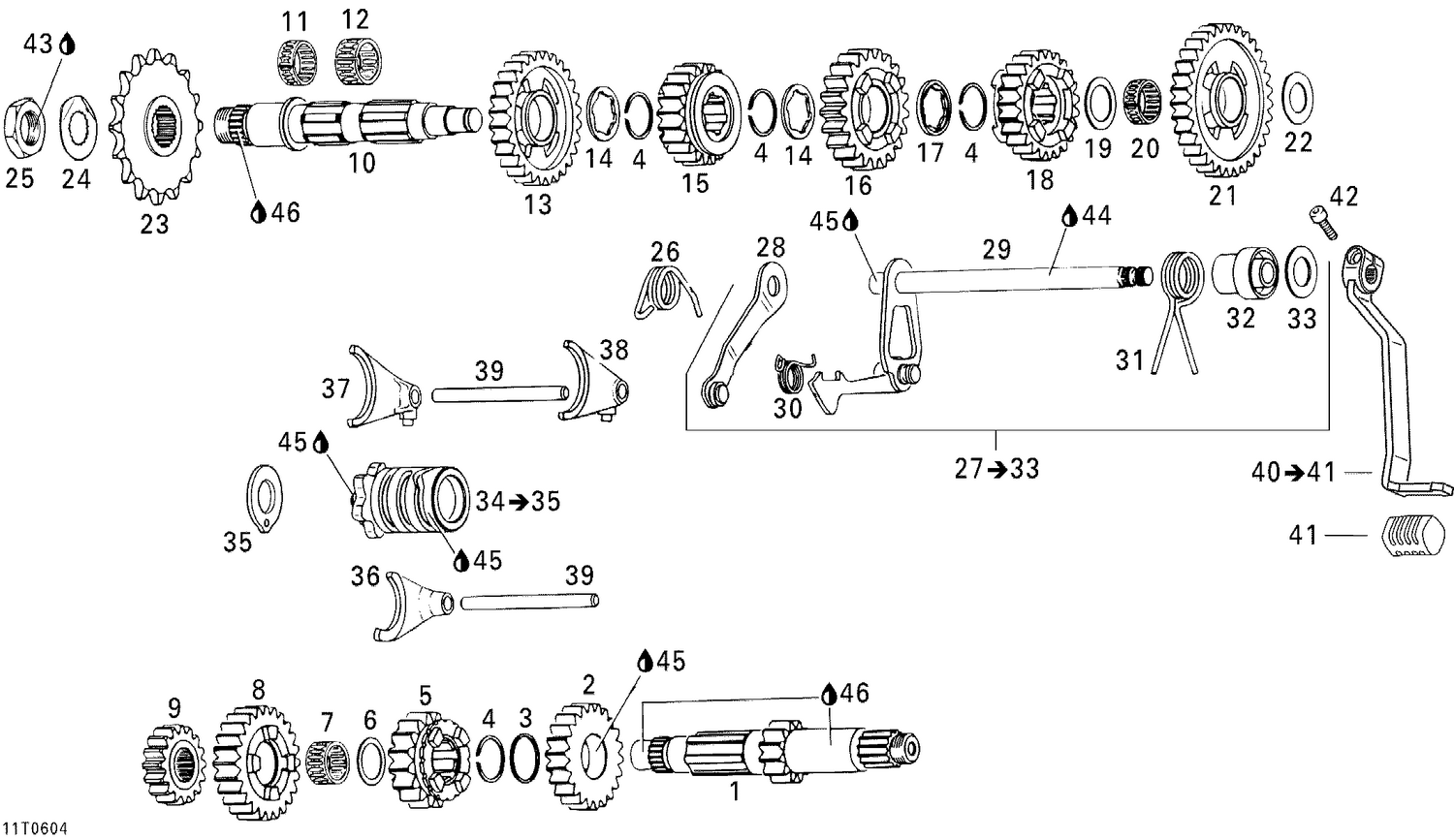

| Ref | Part Number | Description |
|---|
| 1 |
420281410 |
GEAR SET, 1 SPEED - Call your local BRP dealership |
| 2 |
420281416 |
Gear Set, 4 Speed |
| 3 |
420227825 |
THRUST WASHER - Call your local BRP dealership |
| 4 |
420445302 |
Circlip This part replaces 420445300. |
| 5 |
420281414 |
GEAR SET, 3 SPEED - Call your local BRP dealership |
| 6 |
420227445 |
THRUST WASHER - Call your local BRP dealership |
| 7 |
420232805 |
NEEDLE BEARING - Call your local BRP dealership |
| 8 |
420281418 |
Gear Set, 5 Speed |
| 9 |
420281412 |
Gear Set, 2 Speed |
| 10 |
420220730 |
MAIN SHAFT - Call your local BRP dealership |
| 11 |
420232520 |
NEEDLE BEARING - Call your local BRP dealership |
| 12 |
420232530 |
Needle Bearing |
| 13 |
Not |
Available As Spare Part - Intermediate Gear (29 Teeth) |
| 14 |
420627051 |
THRUST RING - Call your local BRP dealership |
| 15 |
Not |
Available As Spare Part - Pinion Gear (22 Teeth) |
| 16 |
Not |
Available As Spare Part - Intermediate Gear (26 Teeth) |
| 17 |
420627061 |
ANGULAR RING - Call your local BRP dealership |
| 18 |
Not |
Available As Spare Part - Pinion Gear (24 Teeth) |
| 19 |
420244100 |
Thrust Washer |
| 20 |
420232742 |
Needle Bearing |
| 21 |
Not |
Available As Spare Part - Gear (33 Teeth) |
| 22 |
420227430 |
THRUST WASHER - Call your local BRP dealership |
| 23 |
420236470 |
CHAIN WHEEL - Call your local BRP dealership |
| 24 |
420245391 |
Tab Washer |
| 25 |
420242656 |
Ecrou Hex.M20 *Nut-Hex.M20 This part replaces 420242651. |
| 26 |
420239095 |
INDEX SPRING - Call your local BRP dealership |
| 28 |
420248346 |
Index Lever |
| 29 |
420237929 |
Shift-Shaft |
| 30 |
420239075 |
Spring |
| 31 |
420239084 |
SPRING - Call your local BRP dealership |
| 32 |
420247900 |
SPACER - Call your local BRP dealership |
| 33 |
420227430 |
THRUST WASHER - Call your local BRP dealership |
| 35 |
420227562 |
ISOLATING WASHER - Call your local BRP dealership |
| 36 |
420258038 |
FORK-SHIFT - Call your local BRP dealership |
| 37 |
420258028 |
FORK-SHIFT - Call your local BRP dealership |
| 38 |
420258018 |
FORK-SHIFT - Call your local BRP dealership |
| 39 |
420258782 |
FORK SPINDLE - Call your local BRP dealership |
| 41 |
420260205 |
Rubber Sleeve |
| 42 |
205062047 |
Socket Head Screw M6 X 20 |
| 43 |
293800060 |
Loctite 243, 10 ml |
| 44 |
293550030 |
Grease, Super Lube |
| 45 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039. |
