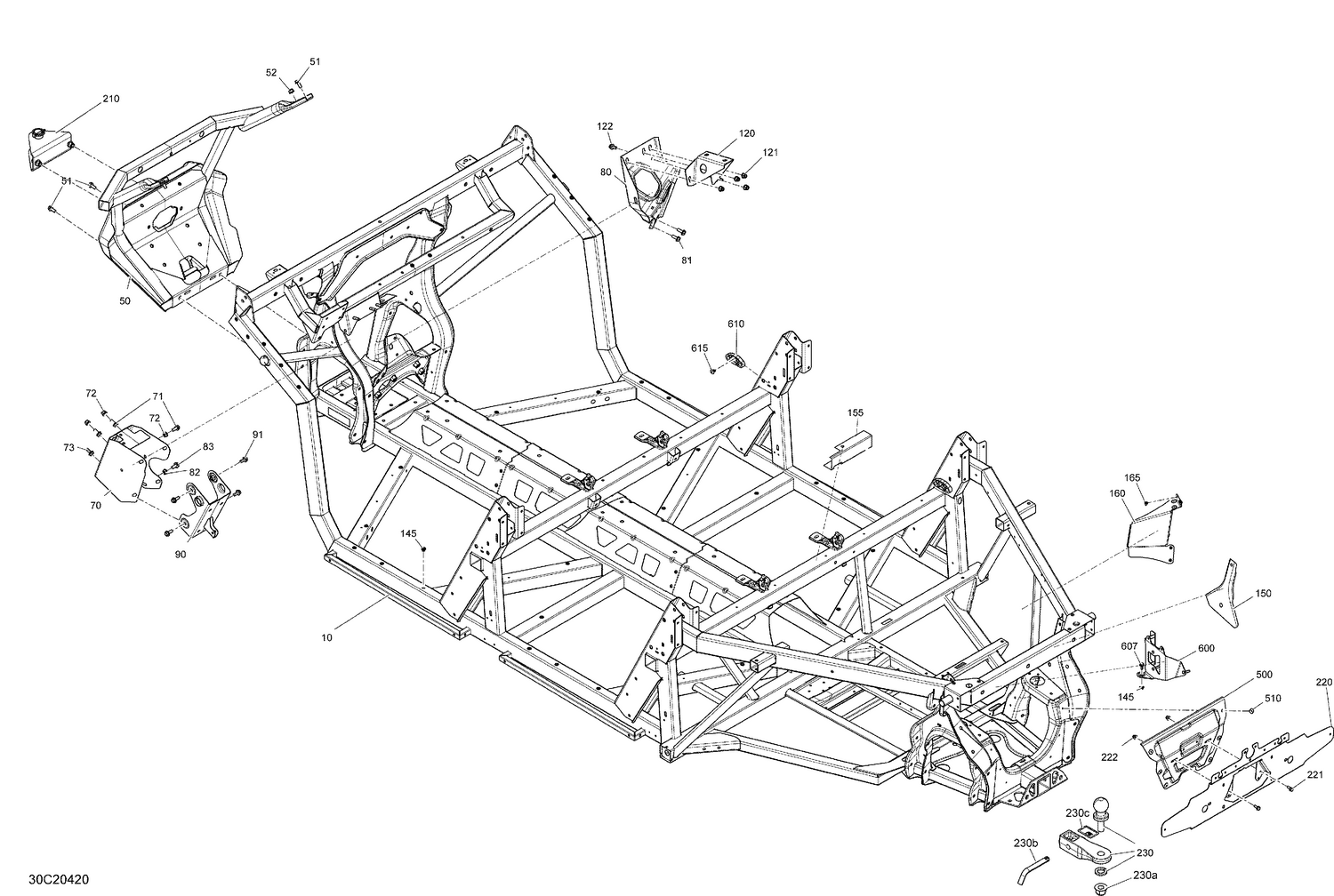

09- Frame
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715006549 | Black, Frame Ass'y |
| 50 | 705207588 | Deep Black, Front Bumper |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 | 233281414 | Hex. Flange Elastic Nut M8 |
| 70 | 705209388 | Module Support This part replaces 705208747. |
| 71 | 207682044 | Hex. Flange Screw M8 X 20 |
| 72 | 233281414 | Hex. Flange Elastic Nut M8 |
| 73 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 | 705208741 | Power Steering Support |
| 81 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 | 233281414 | Hex. Flange Elastic Nut M8 |
| 83 | 207682044 | Hex. Flange Screw M8 X 20 |
| 90 | 705209190 | Steering Column Support This part replaces 715005429. |
| 91 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 120 | 705208742 | Support |
| 121 | 233281414 | Hex. Flange Elastic Nut M8 |
| 122 | 207682044 | Hex. Flange Screw M8 X 20 |
| 145 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 150 | 705014849 | Heat Shield |
| 155 | 705015496 | Heat Shield |
| 160 | 707002717 | Heat Shield |
| 165 | 293150092 | Pop Rivet 3/16” |
| 210 | 705206240 | Front Coupling Device Ass'y |
| 220 | 705014656 | Licence Plate Support |
| 221 | 207661644 | Hex. Flange Screw M6 X 16 |
| 222 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 230a | 250100104 | Elastic Flange Nut M20 |
| 230b | 705204490 | Hitch Pin |
| 230c | 704906897 | Hitch Approval Decal |
| 500 | 705207753 | Rear Chassis Reinforcement |
| 510 | 293150104 | Pop Rivet 3/16" |
| 600 | 710006644 | Voltage Regulator Support |
| 607 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 | 705208203 | Spacer |
