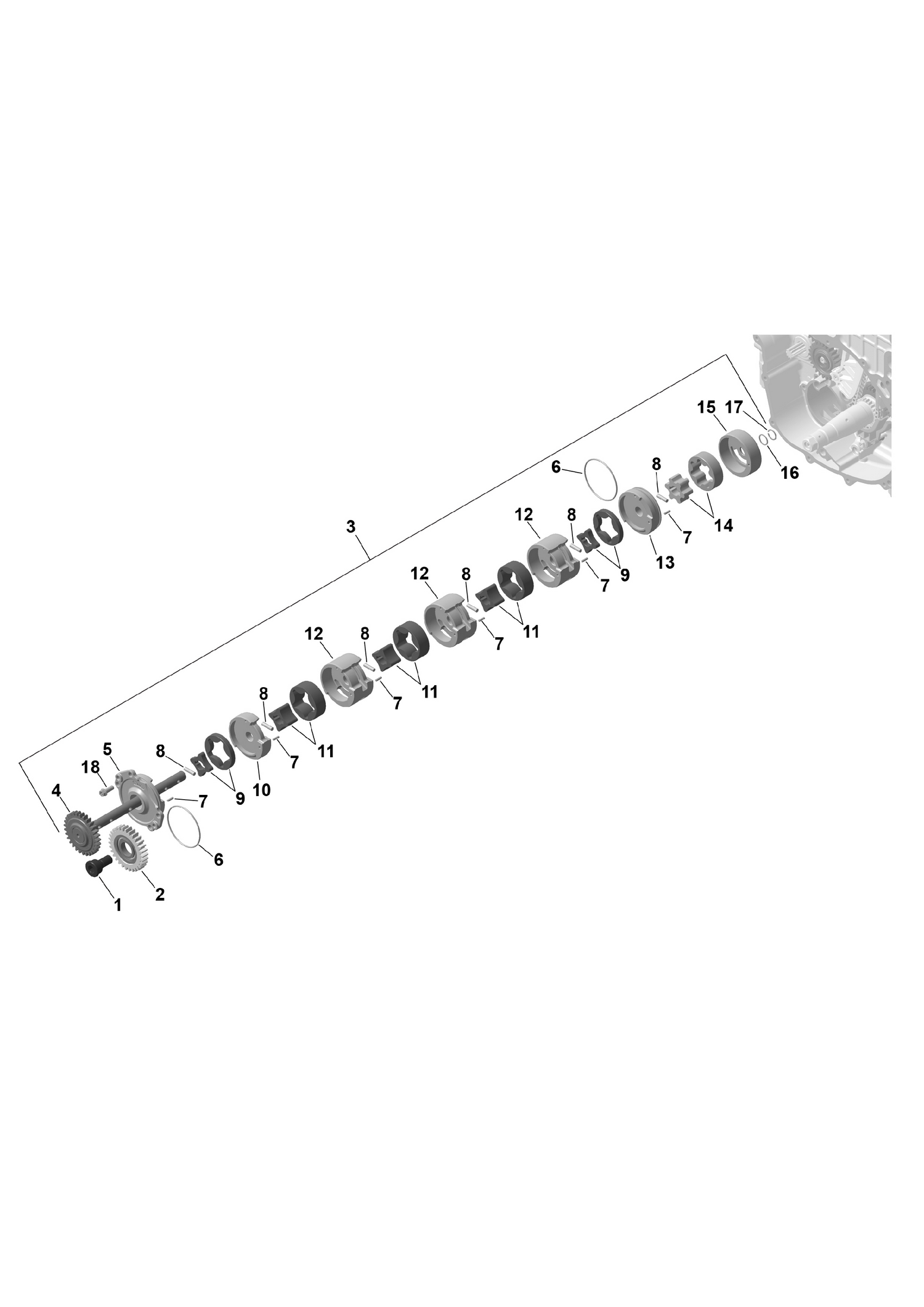

01- ROTAX - Oil Pump
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420240926 | Bearing Bolt |
| 2 | 420235273 | Intermediate Pinion 30 Teeth Ass'y |
| 4 | 420220366 | Oil Pump Shaft Ass'y |
| 5 | 420210053 | Oil Pump Cover |
| 6 | 420631032 | O-Ring |
| 7 | 420232992 | Needle |
| 8 | 420632223 | Needle Pin |
| 9 | 420256832 | Oil Pump Rotor Set |
| 10 | 420210052 | Oil Pump Cover |
| 11 | 420256833 | Oil Pump Rotor Set |
| 12 | 420210055 | Oil Pump Cover |
| 13 | 420210051 | Oil Pump Cover |
| 14 | 420888824 | Inner And Outer Pressure Rotor |
| 15 | 420210056 | Oil Pump Cover |
| 16 | 420227063 | Thrust Washer |
| 17 | 420245123 | Retaining Ring |
