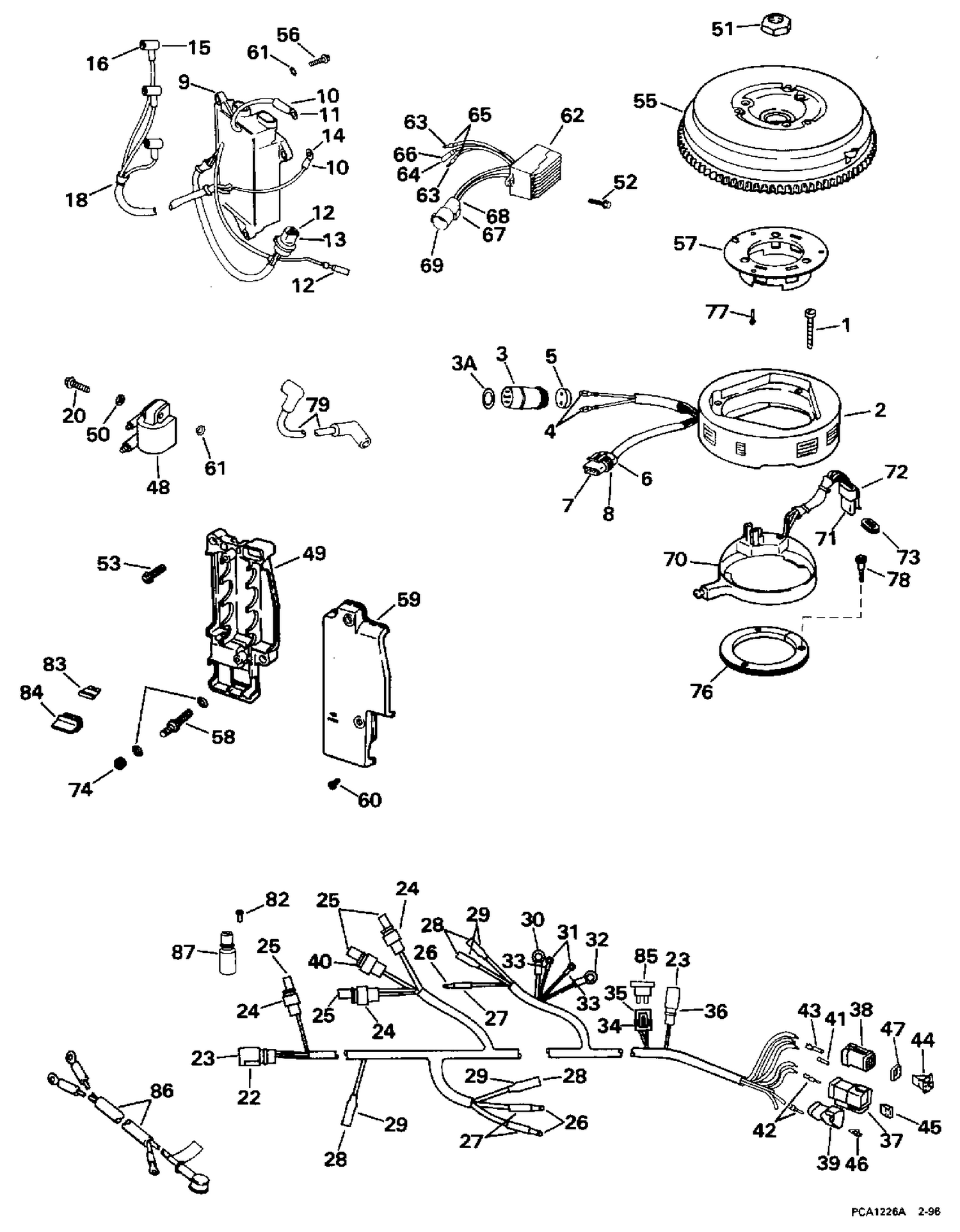

IGNITION SYSTEM - TNT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0586472 | POWER PACK This part replaces 0584823. |
| 21 | 0586043 | MOTOR CABLE ASSY. |
| 48 | 0586323 | COIL ASSY. This part replaces 0584826. |
| 55 | 0584887 | FLYWHEEL ASSY. |
| 57 | 0514372 | ENCODER |
| 70 | 0584824 | SENSOR ASSY. |
| 76 | 0340842 | SENSOR SUPPORT |
| 77 | 0335739 | SCREW, Conn. brkt. to mntg. brkt. |
| 78 | 0340867 | SCREW, Sensor support |
| 79 | 0584925 | LEAD ASSY., Ignition coil |
| 86 | 0584381 | CÂBLE DE BATTERIE |
