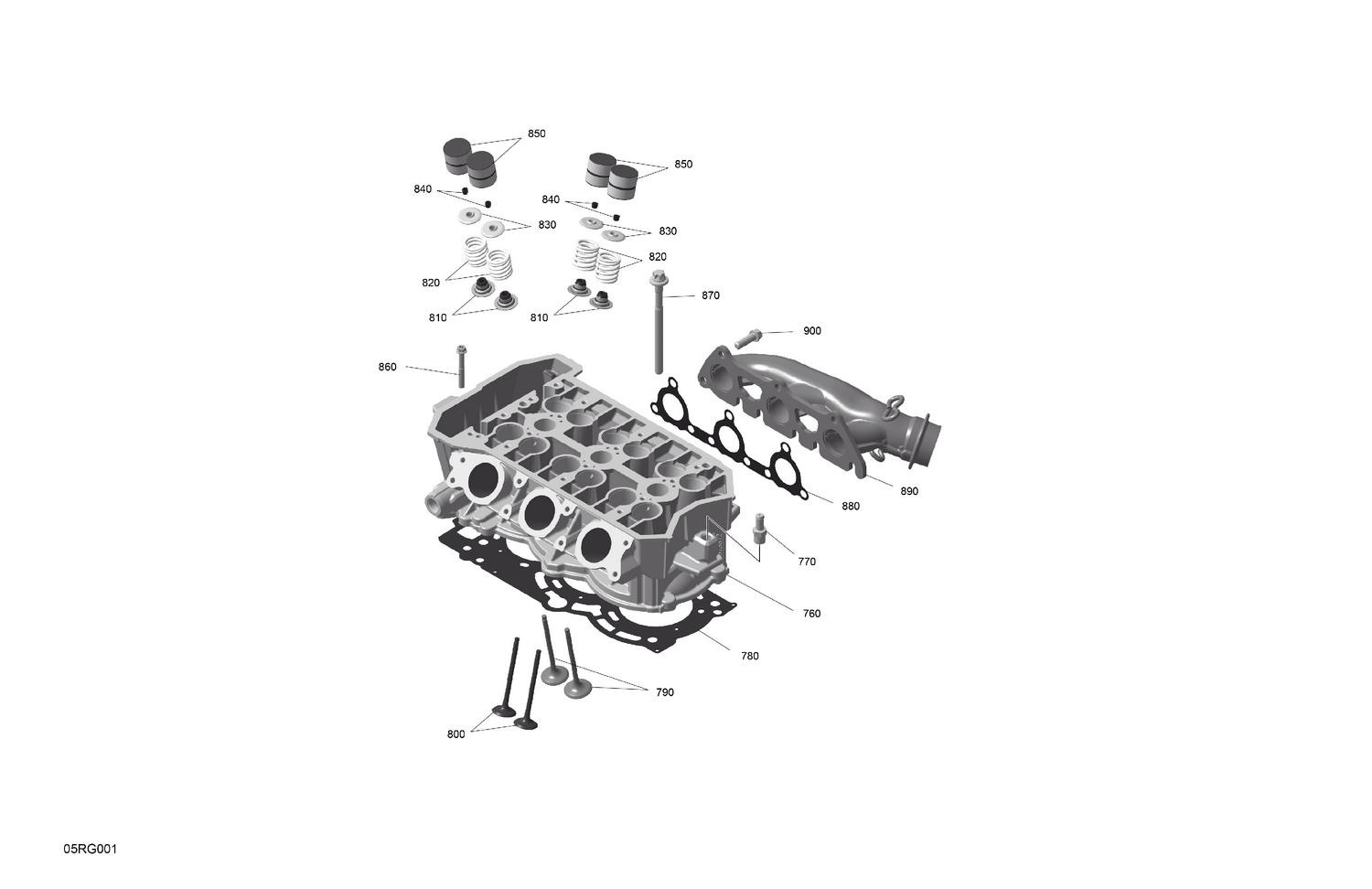

01- ROTAX - Cylinder Head
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 760 | 420213265 | Cylinder Head Ass'y |
| 770 | 420441420 | Hose Nipple |
| 780 | 420431813 | Cylinder Head Gasket |
| 790 | 420855131 | Intake Valve 29MM |
| 800 | 420855144 | Exhaust Valve 25MM |
| 810 | 420431671 | Valve Stem Seal |
| 820 | 420939540 | Valve Spring |
| 830 | 420855150 | Valve Spring Retainer |
| 840 | 420254630 | Cotter Valve |
| 850 | 420855165 | Valve Lifter Bucket |
| 860 | 420440324 | Torx Flange Screw M6 X 45 |
| 870 | 420940945 | Torx Flange Screw M9 X 113 |
| 880 | 420431850 | Gasket |
| 890 | 420673498 | Exhaust Manifold |
