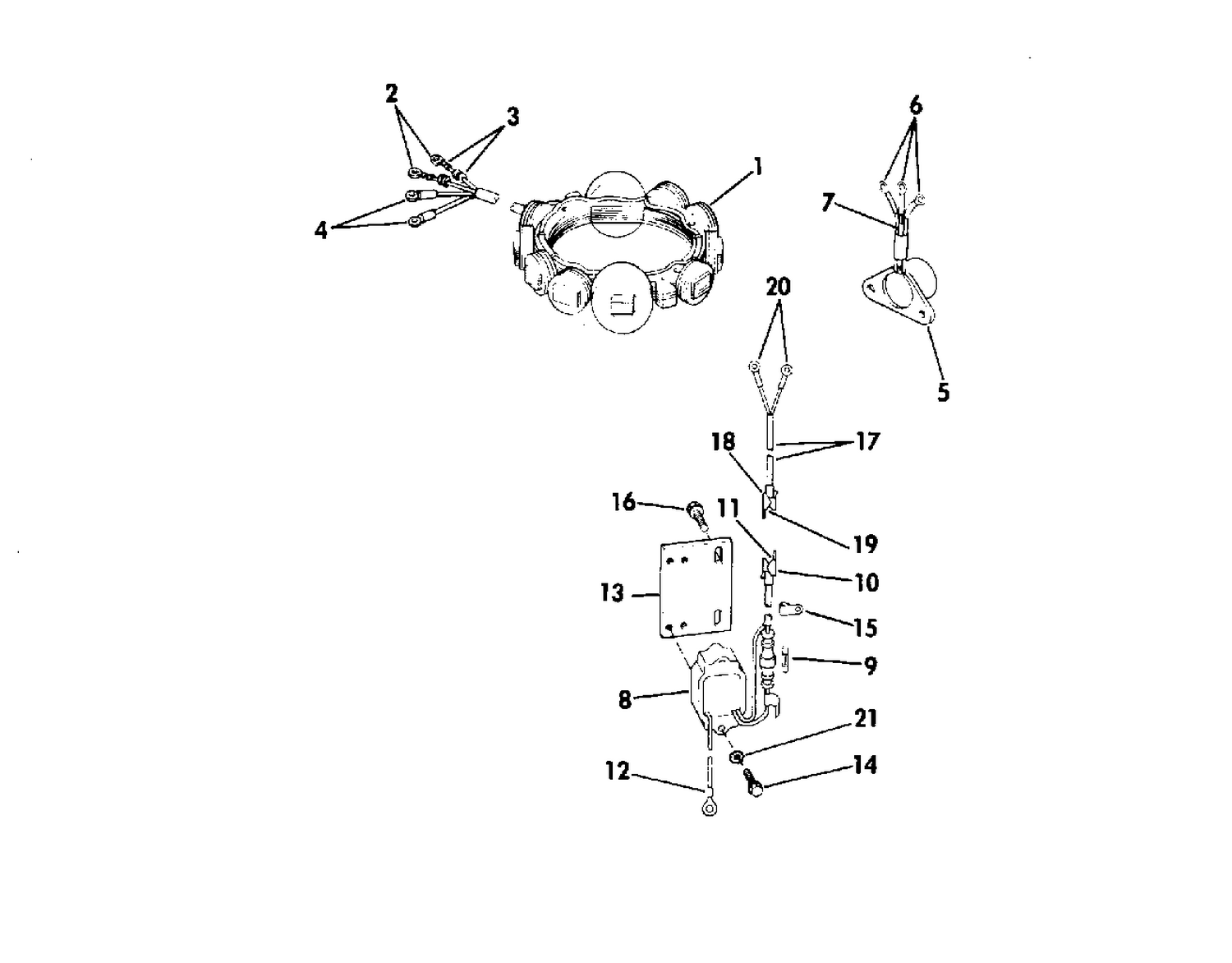

12 AMP ALTERNATOR CONVERSION KIT 85-115-135 HP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0581303 | STATOR ASSY., 12 Amp |
| 7 | 0511050 | TUBE, Heat shrink |
| 8 | 0581580 | VOLTAGE REGULATOR |
| 13 | 0207318 | MOUNTING PLATE, Regulator |
| 14 | 0316565 | SCREW ,Box to bracket |
| 15 | 0310441 | CLAMP, CPS lead This part replaces 0310493. |
| 16 | 0302288 | BOLT |
| 17 | 0172760 | LEAD ASSEMBLY |
| 0172653 | 0172653 | ALTERNATOR CONVERSION KIT, 12 amp |
