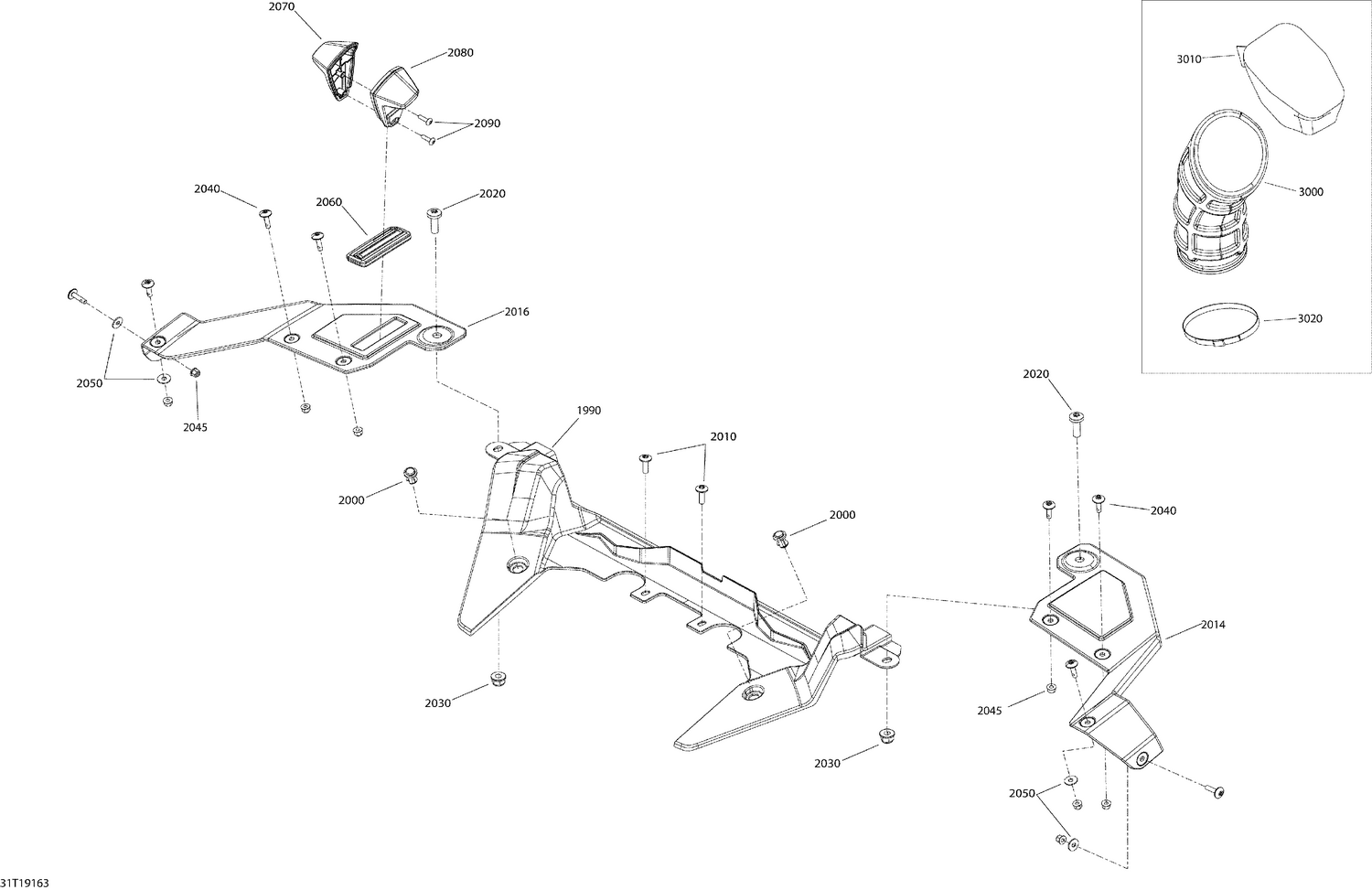

09- Body And Accessories 6X6 - 650 EFI - Squadron Green - Rear
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1990 | 705013822 | Middle Cover |
| 2000 | 293150230 | Tuflok Plastic Rivet |
| 2010 | 250000722 | Torx Screw M6 X 20 |
| 2014 | 705013820 | LH Rear Fender Trim |
| 2016 | 705013821 | RH Rear Fender Trim |
| 2020 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 2030 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2040 | 250000586 | Torx Truss M5 X 20 |
| 2045 | 233251434 | Flange Elastic Nut M5 |
| 2050 | 20008 | Washer 5,3 mm |
| 2060 | 705008047 | Lever Rubber Seal |
| 2070 | 705008048 | Right Half Knob |
| 2080 | 705008420 | Left Half Knob |
| 2090 | 250000759 | Torx Truss Pt K40 X 16 |
| 3000 | 707001864 | CVT Inlet |
| 3010 | 707001786 | CVT Filter |
