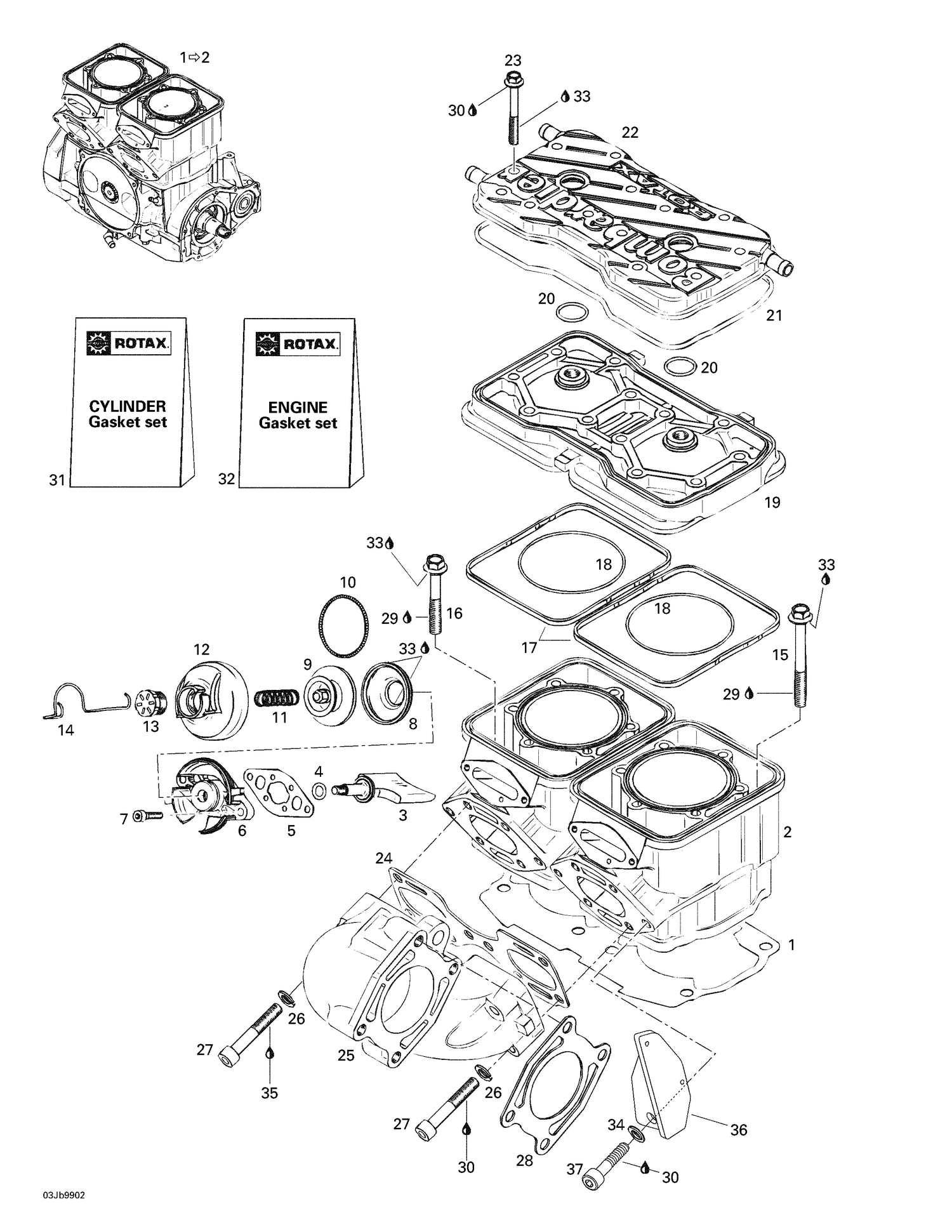

| Ref | Part Number | Description |
|---|
| 1 |
290931724 |
Gasket Cylinder 0.8 mm |
| 2 |
290923503 |
CYLINDER WITH SLEEVE (SILVER) - Call your local BRP dealership |
| 3 |
420854358 |
Exhaust Valve This part replaces 290854358. |
| 4 |
420430110 |
O-Ring |
| 5 |
420931540 |
Joint Etanche *Gasket This part replaces 290931540. |
| 6 |
290854360 |
Valve Housing |
| 7 |
205062560 |
Socket Head Screw M6 X 25 |
| 8 |
420260723 |
Exhaust Bellows This part replaces 290260723. |
| 9 |
290854445 |
Exhaust Valve |
| 10 |
420939281 |
Hose Spring This part replaces 290239048. |
| 11 |
290939137 |
Compression Spring |
| 12 |
420911559 |
Valve Cover This part replaces 290911555. |
| 13 |
420241221 |
Adjuster Screw This part replaces 420241220. |
| 14 |
420838083 |
SPRING CLIP - Call your local BRP dealership This part replaces 420838082. |
| 15 |
290941333 |
Flange Screw M10 x 73,5 |
| 16 |
290941903 |
Hex. Flange Screw M10 x 105 |
| 17 |
290931420 |
RUBBER RING - Call your local BRP dealership |
| 18 |
420931410 |
O-Ring This part replaces 290931410. |
| 19 |
420923308 |
HEAD CYLINDER - Call your local BRP dealership This part replaces 290923302. |
| 20 |
420430782 |
O-Ring |
| 21 |
290831550 |
O-RING - Call your local BRP dealership |
| 22 |
290923314 |
Cylinder Head Cover (Silver) |
| 23 |
290841998 |
Hex. Flange Screw M8 x 68.5 |
| 24 |
420931481 |
Gasket This part replaces 290931480. |
| 25 |
290979484 |
Exhaust Manifold |
| 26 |
234101601 |
Helicoidal Lock Washer M10 |
| 27 |
205006060 |
SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership |
| 28 |
290931500 |
Gasket |
| 30 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 31 |
290886396 |
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 32 |
290886390 |
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 33 |
413707000 |
Dow Corning 111, 150 g |
| 34 |
234001600 |
Flat Washer 10 mm, Stainless |
| 36 |
204250047 |
Fuel Pump Support |
| 290931720 |
Gasket |
Cylinder 0.3 mm 290931720 |
| 290931721 |
Gasket |
Cylinder 0.4 mm 290931721 |
| 290931722 |
Gasket |
Cylinder 0.5 mm 290931722 |
| 290931723 |
GASKET |
CYLINDER 0.6 MM - Call your local BRP dealership 290931723 |
