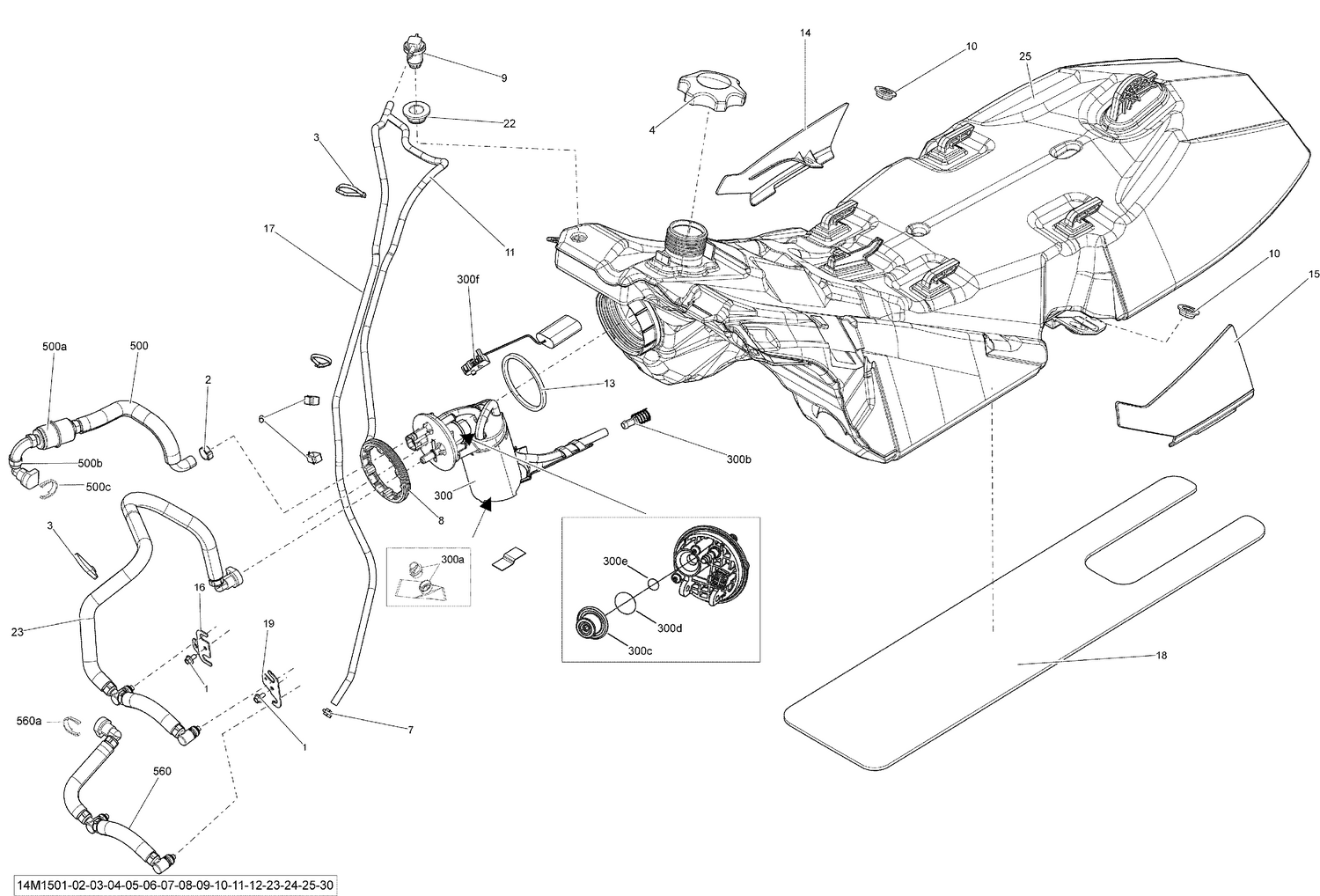

02- Fuel System _14M1509
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207551044 | Hex. Flange Screw M5 X 10 |
| 2 | 293650053 | Crimp Clamp |
| 3 | XXX | Not Available As Spare Parts |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 414554800 | Spring Clamp |
| 8 | 513033180 | Ring |
| 9 | 513033842 | Check Valve This part replaces 513033188. |
| 10 | 513033326 | Shoulder Bushing |
| 11 | 219704410 | Polyurethane Hose 10000Mm Long |
| 13 | 513033334 | Gasket |
| 14 | 513033418 | RH Cap |
| 15 | 513033419 | LH Cap |
| 16 | 513033542 | Bracket |
| 17 | XXX | Not Available As Spare Parts |
| 18 | 513033588 | Insulating Foam |
| 19 | 513033593 | Bracket |
| 22 | 513033596 | Grommet |
| 23 | 513033648 | Fuel Hose Ass'y |
| 25 | 513033667 | Fuel Tank |
| 300a | 415129451 | Fuel Filter |
| 300b | 414872100 | Fuel Filter Strainer |
| 300c | 415129821 | Regulator |
| 300d | 415129822 | O-Ring |
| 300e | 415129823 | O-Ring |
| 300f | 415130108 | Fuel Level Sensor This part replaces 415129671. |
| 500a | 513034047 | Fuel Filter This part replaces 513033719. |
| 500b | 293650125 | Oetiker Clamp |
| 500c | 513033135 | Locking Clip |
