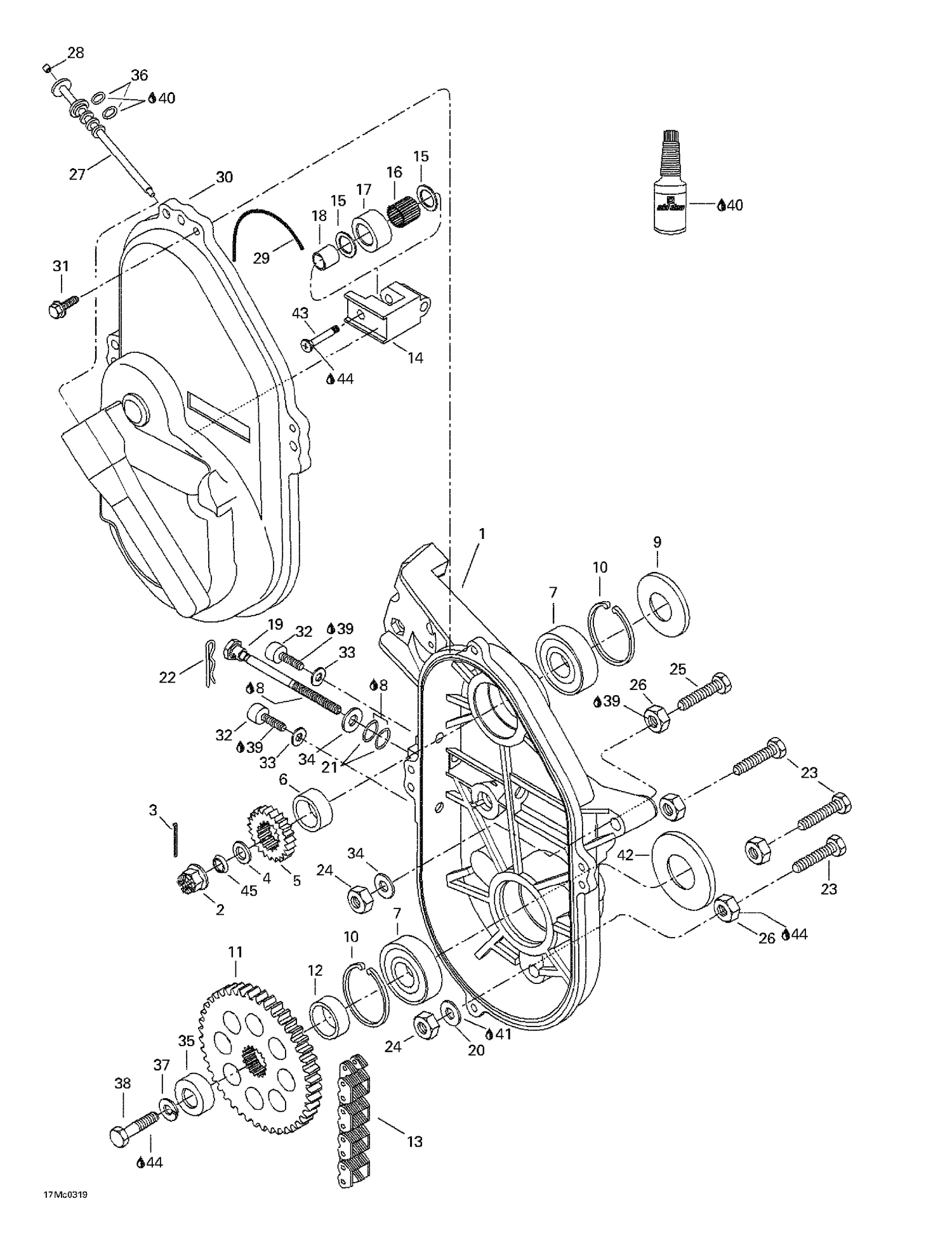

05- Chaincase
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504144600 | Machined Chaincase |
| 2 | 232210414 | HEX. CASTELLATED NUT M16 - Call your local BRP dealership |
| 3 | 371801300 | Cotter Pin |
| 4 | 504152049 | SPACER - Call your local BRP dealership |
| 5 | 504071800 | Sprocket 17 Th |
| 6 | 504093400 | Shim |
| 7 | 293350115 | Ball Bearing This part replaces 504152006. |
| 8 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 9 | 414882800 | OIL SEAL - Call your local BRP dealership |
| 10 | 371901700 | CIRCLIP - Call your local BRP dealership |
| 11 | 504070900 | Sprocket 44Th |
| 12 | 504146400 | Spacer |
| 13 | 504151882 | DRIVING CHAIN 70 M - Call your local BRP dealership |
| 14 | 504081000 | MACHINED TENSIONER - Call your local BRP dealership |
| 15 | 504080300 | WASHER - Call your local BRP dealership |
| 16 | M31050 | Needle Bearing |
| 17 | 414531300 | ROLLER - Call your local BRP dealership |
| 18 | 504080200 | SPACER - Call your local BRP dealership |
| 19 | 732601311 | ADJUSTING SCREW - Call your local BRP dealership |
| 20 | M20073 | WASHER-FLAT - Call your local BRP dealership |
| 21 | 414484400 | O-Ring |
| 22 | 414575600 | Hair Pin |
| 23 | M40201 | Screw |
| 24 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 25 | M40043 | Screw |
| 26 | 504083800 | Spacer |
| 28 | 206540490 | SCREW-SET SOCKET DIN.916 - Call your local BRP dealership |
| 29 | 414362300 | O-Ring |
| 30 | 080037100 | CASTING COVER - Call your local BRP dealership |
| 31 | M40340 | Hex. Forming Screw |
| 32 | M40859 | Socket Head Screw |
| 33 | M20022 | Washer |
| 34 | 234001410 | Flat Washer 10 mm |
| 35 | 501026200 | CAP - Call your local BRP dealership |
| 36 | M28402 | O RING - Call your local BRP dealership |
| 37 | 20068 | Lock Washer D10 This part replaces M20068. |
| 38 | 207102544 | Hex. Screw M10 X 25 |
| 39 | 293800060 | Loctite 243, 10 ml |
| 41 | 219704462 | ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
| 42 | 504152076 | Seal Oil Ass'y |
| 43 | 732601144 | SCREW - Call your local BRP dealership |
| 44 | 293800005 | Loctite 271, 10 ml |
